    • 880-2600nm High Speed Extended InGaAs Photodetector

    ING-I2600LA1 series photoelectric detector is a photoelectric detector with wide wavelength response. Response wavelength range: 880-2600nm. Our detector has fast response speed and is widely used in the field of communication sensing.

    产品特点Compact size、 4 φ6mm through holes for coaxial mounting、 Light-tight and air-tight、 Multiple sensor options、 Switchable 20dB gain、 Wide power input: ±5 to ±20V

    产品货号E80040008

    应用领域Q-modulated laser monitoring、 Mode-locked laser output monitoring 、 Weak visible light detector

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Photoelectric detector ING-I2600LA1 parameters

    Properties

    Value

    Photodetector

    Extended InGaAS Indium Gallium Arsenide Detector

    Photosensitive surface size

    Φ1mm

    Optical window

    Plane borosilicate glass

    Response wavelength range

    880-2600nm

    Peak wavelength

    1860nm

    Sensitivity

    0. 85A/ W @1310nm   0. 95A/ W @1550nm

    Directivity

    ±20º

    NEP

    6*10-15 W/ Hz1/ 2

    Operating bandwidth

    3-5MHz

    Transimpedance gain

    50k V/ A @ 0dB Gain

    500k V/ A @20dB Gain

    Output voltage range

    0~+3V (into Hi-Z)

    0~+1. 5V (into 50Ω)

    Output impedance

    50Ω

    Input operating voltage

    V+: +5 ~ +20V

    V- : -5 ~ -20V

    Operating temperature

    10~50 ºC

    Maximum pressure difference

    ±50kPa

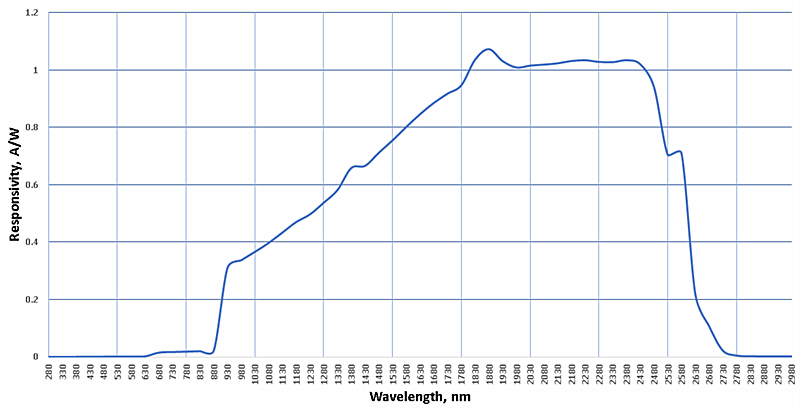

    Response spectrum

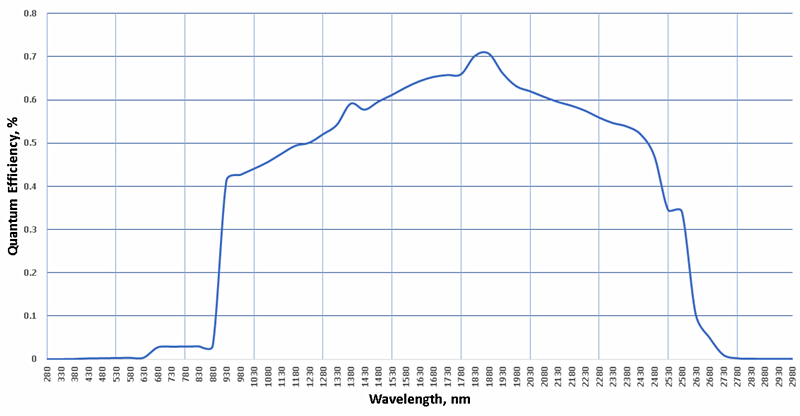

    Quantum efficiency graph

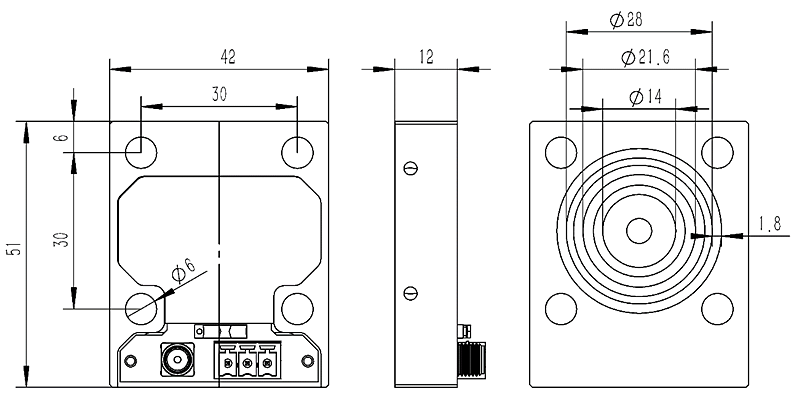

    Photodetector C3A-I2600FA Dimensional drawing

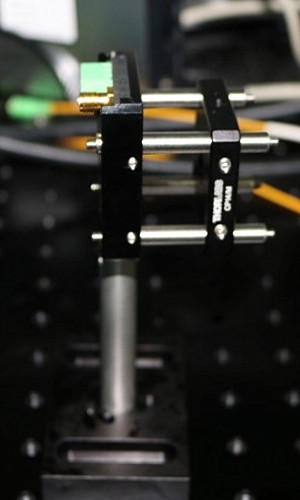

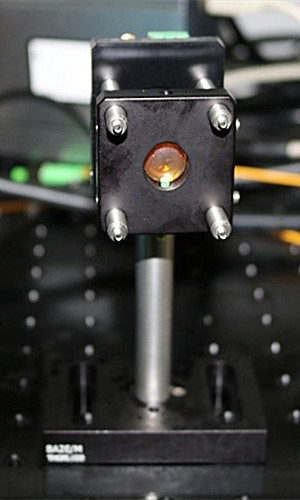

    Installation Example

    Recommended mounting hole diameter:

    Use the two guide rails to precisely position the sensor. Use four M6 screws to secure the position.
