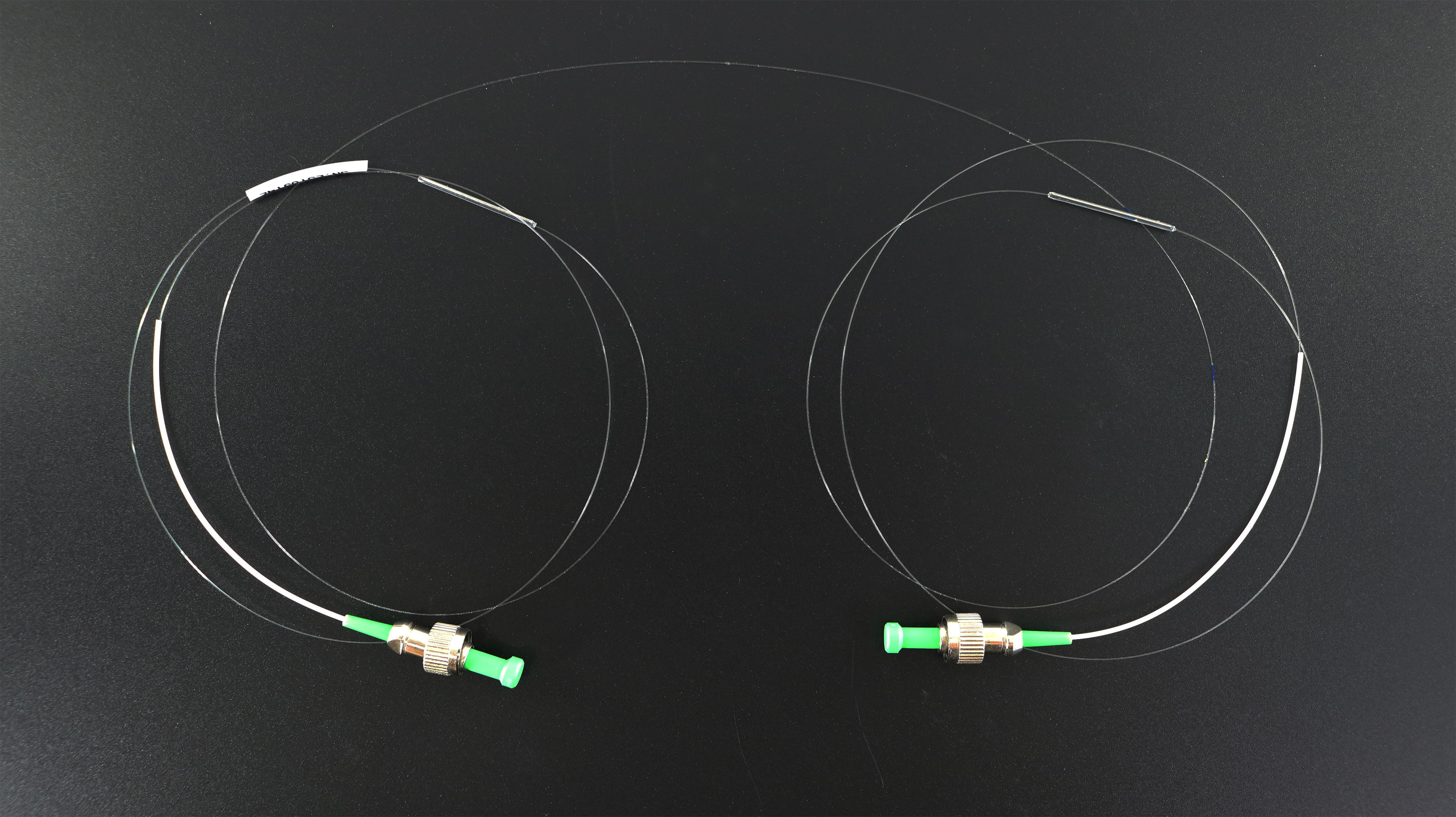

    • Tilted Fiber Bragg Grating

    Tilted fiber Bragg grating is an advanced passive fiber optic device, whose internal refractive index modulation grating plane forms a specific angle (tilt angle) with the fiber axis. TFBG continuously couples the fundamental mode energy transmitted in the core to a series of different order cladding modes through its tilted refractive index modulation structure, while satisfying the phase matching condition.

    产品特点Multi mode coupling effect, high refractive index sensitivity, multi parameter synchronous measurement

    产品货号无

    应用领域Biochemical sensing、Environmental monitoring、Medical diagnosis、 Industry and energy 、 Communication and optical devices

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameters

    Parameter Type

    Unit

    Value

    Core Mode Central Wavelength

    nm

    1520–1600 (interval 1)

    Cladding Mode Central Wavelength

    nm

    1470–1550 (interval 1)

    Tilt Angle

    °

    1–12

    Cladding Mode Transmission Depth

    dB

    0.1–30

    Grating Length

    mm

    1–15

    Pigtail Length

    cm

    >20 / >20

    Fiber Type

    —

    Single-mode fiber

    Connector Type

    —

    Bare fiber / SC / FC / LC, etc.
