    • Three-Mode MDM Device

    Our series of mode multiplexers/demultiplexers and mode converters are manufactured through a unique process design. They feature advantages such as low loss, low crosstalk, and a broad operating wavelength range, and are fully compatible with the few-mode fibers (FMFs) developed by our company. As key components for enabling mode multiplexing and demultiplexing, they are well suited for applications in optical transmission, optical sensing, scientific research, and other fields. We also provide comprehensive solutions for mode couplers tailored to few-mode fibers and multi-core few-mode fibers, along with customized services.

    产品特点Low insertion loss；Low modal loss；Low inter-modal crosstalk；Wide operating wavelength range

    产品货号无

    应用领域

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameters

    Product Type

    2-mode

    3-mode

    4-mode

    6-mode

    Number of Modes

    2

    3

    4

    6

    Operating Wavelength

    C band or customized

    Insertion Loss

    <3.0

    <3.0

    <4.0

    <5.0

    Mode Crosstalk

    <2.0

    <2.0

    <3.0

    <3.0

    Package Dimensions

    100 mm × 80 mm × 9 mm or customized

    Pigtail Length

    1.0 m or customized

    Connectors

    FC, LC, SC, etc., PC/APC

    Note: For more specifications and parameters, please contact us.

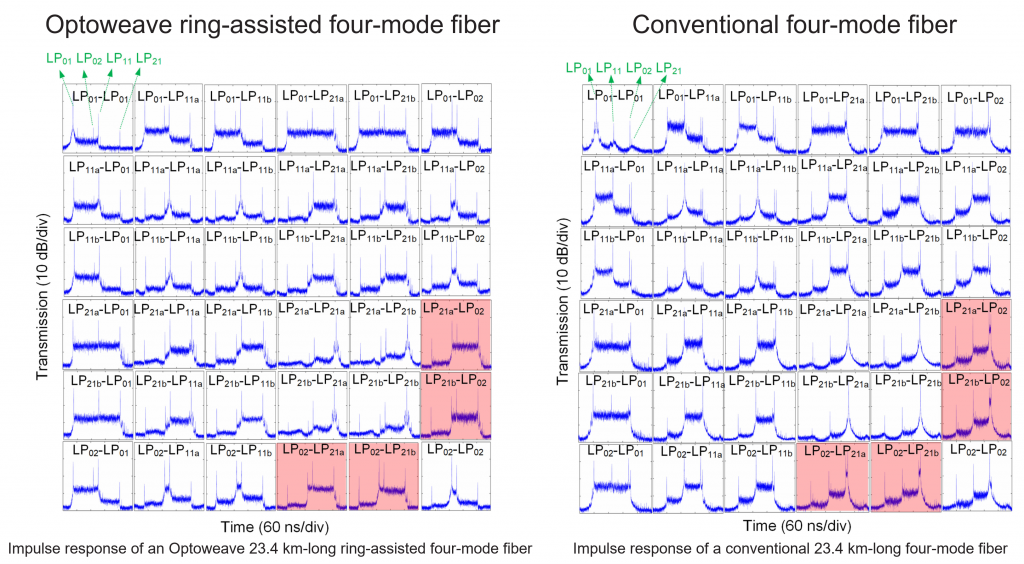

    Application Cases

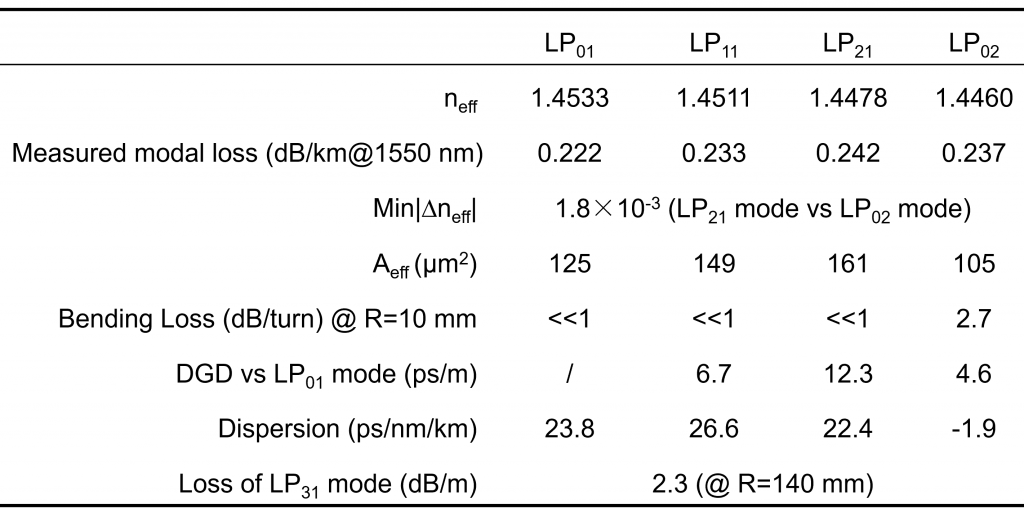

    Appendix: Few-Mode Fiber Specifications
