• C+L band single mode ASE light source

    ASE light source is a white light source with very high brightness in a very wide spectral range. The C+l band ASE wide spectral range light source module is an amplified spontaneous emission (ASE) light source used in distributed fiber Bragg grating sensor systems, optical passive device testing, and spectral analysis design. Based on the basic principle of semiconductor laser pumping rare earth doped fiber (Er ion) to generate C-band (1528-1563nm) amplified spontaneous emission (ASE), the specially designed C-band spectral gain flattening filter (GFF) structure enables the product to have high light-to-light conversion efficiency and excellent C-band spectral flatness. At the same time, in order to ensure the strict requirements of the distributed fiber Bragg grating system for the stability of the light source output, the global optical feedback control technology and pulse width modulation (PWM) precision temperature control technology are adopted internally to ensure high output light power stability and spectral waveform stability.

    产品特点High output power up to 10mW、 Broad spectrum 1528-1605nm, spectrum width up to 80nm、 Stable spectrum output power、 Flat output

    产品货号B80010004

    应用领域Optical component testing、 OCT spectrometer、 FBG sensor、 Fiber optic gyroscope 、 Gas detection

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话:18602170419

    邮箱:moli@microphotons.com

    主要参数
  • 核心参数
  • 尺寸图
  • Parameter

    Parameter

    Unit

    Min.

    Typical

    Max.

    Operating wavelength range

    nm

    1528

    -

    1605

    Output optical power

    dBm

    -

    13

    -

    Short-term output power stability (1)

    dB

    -

    -

    0.05

    Long-term output power stability (2)

    dB

    -

    -

    0.1

    Flatness

    dB

    -

    -

    2.5

    Operating temperature range

    module

    -20

    -

    +60

    benchtop

    0

    -

    60

    Storage temperature range

    -45

    -

    +85

    Humidity(3)

    %

    5

    -

    90

    (1) Single temperature, 15-minute output light power stability (2) Single temperature, 8-hour output light power stability

    (3) No condensation

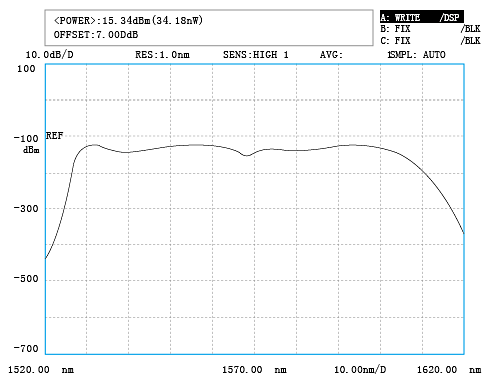

    Test spectrum

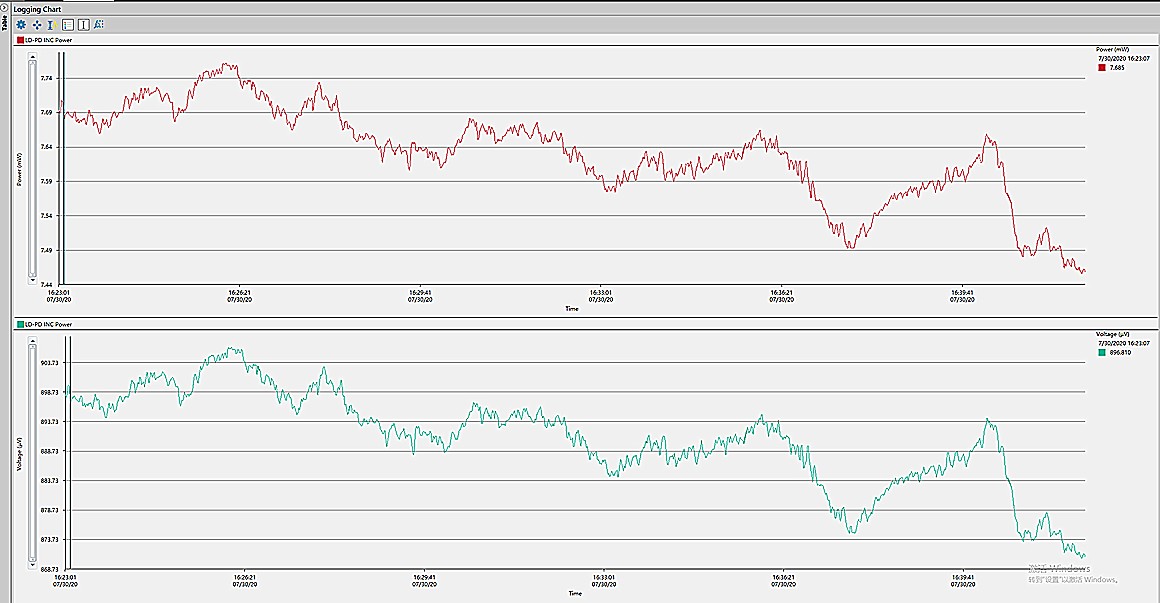

    Power stability curve






    Electrical performance characteristics

    Structure

    Parameter

    Specification

    Unit

    Note

    Module

    Power supply voltage

    DC +5V/GND



    Power consumption

    <5

    W

    At normal temperature

    Benchtop

    Power supply voltage

    AC 220V



    Power consumption

    <30

    W

    At normal temperature




    Mechanical structure

    Structure

    Parameter

    Parameter

    Unit

    Note

    Module

    Structural dimensions

    150x125x30.5

    mm

    Size can be customized

    Power supply interface type

    DC +5V/GND


    Typical

    Output pigtail type

    SM



    Communication interface type

    DSUB25 male connector



    Benchtop

    Structural dimensions

    260.6x162.8x76

    mm


    Power supply interface type

    N-L-CAC220V power supply interface



    Output optical interface

    FC/APC connector


    Customizable

    Communication interface type

    RJ45 network port or console port



    Cooling fan

    1

    PCS




    Communication type

    Structure

    Parameter

    Specification

    Note



    Module

    Communication interface

    26Pin 2.00 pitch serial port

    customizable

    Protocol

    RS232


    Communication user interface

    Can read or set output optical power


    Benchtop

    Communication interface

    Ethernet or RS232


    Protocol

    RS232 or SNMP


    Communication user interface

    GUI




    Ordering Information

    PL-ASE-□□□□-W△-F△△-S▽▽-C▽

    □□□□:Average Power

    10:10mw

    -10=-10dbm

    W△:Wavelength

    C:C band

    L:Lband

    CL=C+L Band

    F△△;Flatness

    2=2dB

    2.5=2.5dB

    S▽▽:SIZE

    M1=70X60X15mm

    M2=80X70X15mm

    M3=Diameter80X18mm

    B=Bechtop

    C▽:Pigtail and Connector

    SA=SMF-28E+FC/APC

    PP=PM150+FC/PC




    可选配置表
