首页 Light Sources Optical Amplifier EDFA C-band compact EDFA erbium-doped fiber amplifier module 200mW C-band compact EDFA Erbium-doped fiber amplifier module 1528-1564nm

    • C-band compact EDFA Erbium-doped fiber amplifier module 1528-1564nm

    Idealphotonics' Technology Co., Ltd. MP5100-FM02 series is a low-noise, high-performance, cost-effective EDFA module designed for CATV systems. GM is a gain block module without electronic control circuit FM is a full-function module with electronic control circuit MPMP5100-FM02 is a full-function module with a 70X90X15mm MSA compact package and a single-channel narrow bandwidth standard version. A standard 30-pin electrical connector provides simple electrical connections. The module uses a high-performance cooled pump laser with a maximum optical output of 24dBM.

    产品特点With electronic control circuit (full function)、 70X90X15mmMSA compact package、 TTL standard communication interface、 Excellent optical performance、 Low noise figure, suitable for various CATV applications、 Low power consumption、 Wide operating temperature range

    产品货号B80030016

    应用领域CATV、 FTTxPON、 Other single-channel optical communication systems

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameters

    Performance

    Unit

    Min.

    Typical

    Max.

    Note

    Optical characteristic

    Operating wavelength range

    nm

    1528


    1564


    Typical applications

    nm

    1540


    1564


    Input optical power (Pin)

    dBm

    -10


    10


    Total output power @Pin=0dBm

    dBm

    13


    24


    Noise figure

    dB


    4

    5


    Polarization dependent gain (PDG)

    dB



    0.3


    Polarization mode dispersion (PMD)

    ps



    0.3


    Polarization dependent loss (PDL)

    dB



    0.3


    Pump power leakage

    dB



    -30


    Output/input optical isolation

    dB

    30




    Reflection loss

    dB

    45



    UPC

    Fiber type

    55



    APC

    Connector


    SMF-28,900um loose tube


    Connector polishing


    FC


    Performance


    APC


    General Characteristics

    Communication interface


    TTL


    Power supply voltage

    V

    3.3

    5

    5.5


    Power consumption

    W


    1

    2

    Uncooled laser


    2

    10

    Cooled laser

    Operating temperature

    ℃

    -5


    70


    Storage temperature

    ℃

    -40


    85


    Relative humidity

    %RH

    5


    95


    Dimensions (W) x (L) x (H)

    mm

    70X90X15


    Note: Applicable to working at 20℃ -30℃.





    Electrical interface definition

    Pin

    definition

    Pin

    definition

    1

    +5.0

    2

    +5.0

    3

    /

    4

    /

    5

    GND

    6

    GND

    7

    TTL receive

    8

    TTL launch

    9

    GND

    10

    GND

    11

    /

    12

    /

    13

    Amplifier switch (enable) input, low level enables

    14

    /

    15

    /

    16

    /

    17

    /

    18

    /

    19


    20

    /

    21

    GND

    22

    GND

    23

    /

    24

    /

    25

    GND

    26

    GND

    27

    /

    28

    /

    29

    +5.0

    30

    +5.0

    note：30-Pin  type:HIROSE DF11-30DP -2DSA

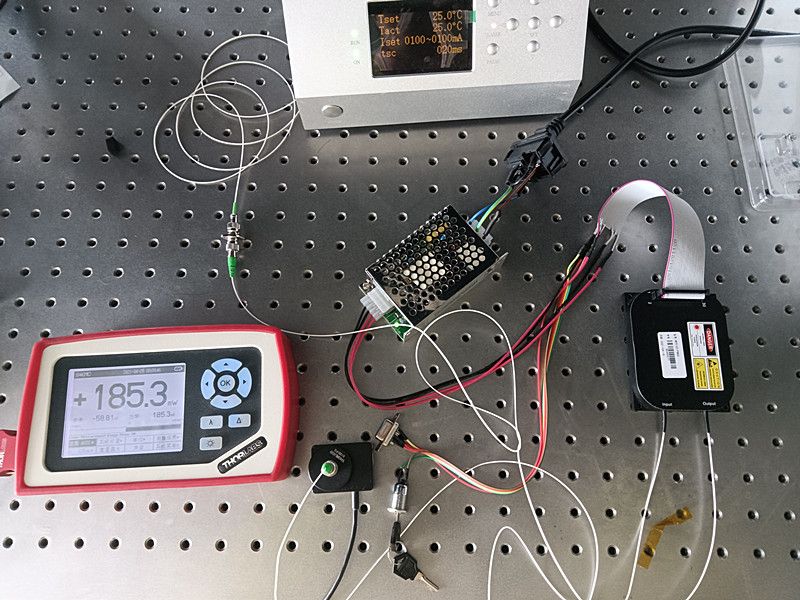

    Experimental testing






    1. Connect the power supply of the fiber amplifier

    2. Use flange to connect the 1550nm laser output fiber and the fiber amplifier input fiber

    3. Connect the output fiber of the fiber amplifier to the power meter

    4. Turn on the seed source, turn on the key switch of the fiber amplifier, and check the amplified output power

    5. Connect the output fiber of the fiber amplifier to the spectrometer and check the amplified spectrum

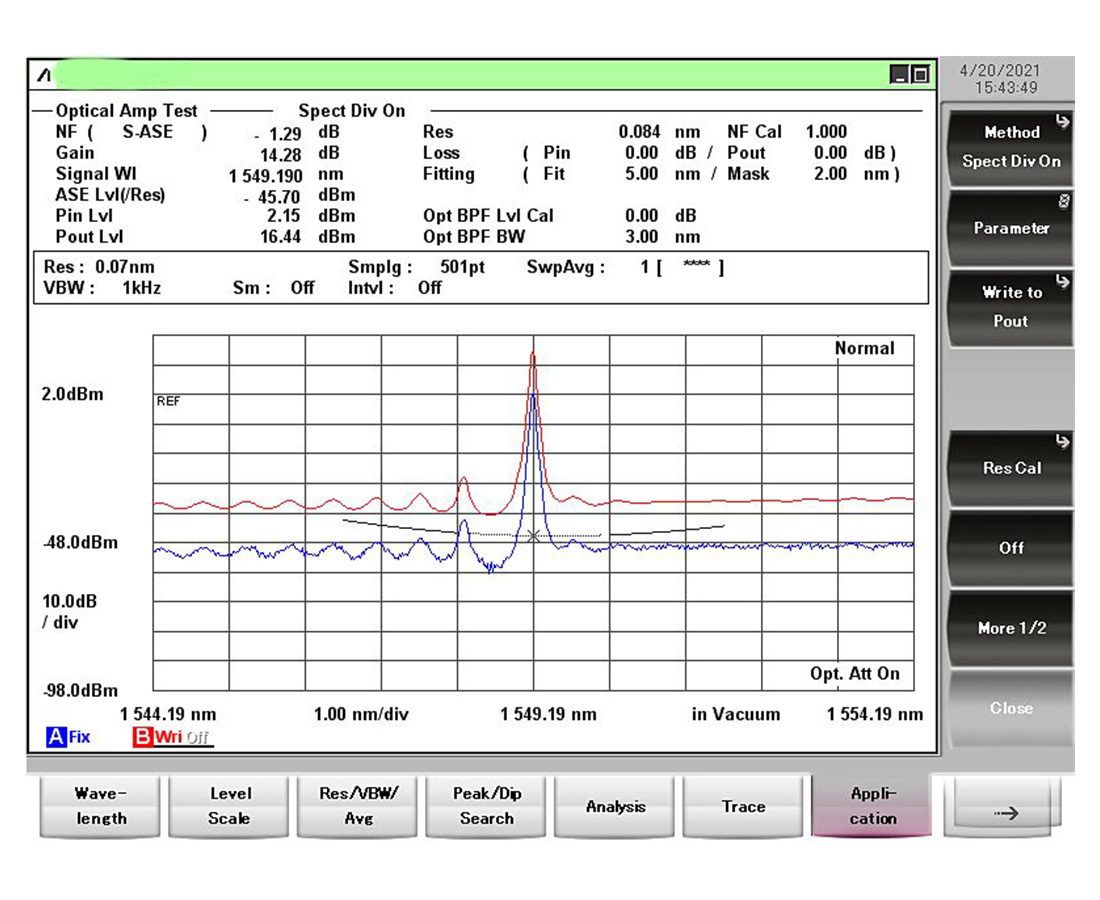

    Fiber amplifier spectrum comparison test (blue is the seed source spectrum, red is the spectrum after amplification)




    Ordering Information

    Model: EDFA-C-M-23-SA

    C: Working wavelength range: C band 1528-1564nm

    M: Modular design

    23：Output power 23dBm

    SA: Fiber Optic Types and Connectors：SMF-28+FC/APC


    Product range

    PN#

    Input power range (dBm)

    Output power (dBm) (Pin=0dBm)

    Noise Figure (dB)

    MP5113-FM02

    -10~+10

    13

    ＜4.0

    MP5114-FM02

    -10~+10

    14

    ＜4.0

    MP5115-FM02

    -10~+10

    15

    ＜4.0

    MP5116-FM02

    -10~+10

    16

    ＜4.0

    MP5117-FM02

    -10~+10

    17

    ＜4.0

    MP5118-FM02

    -10~+10

    18

    ＜4.0

    MP5119-FM02

    -10~+10

    19

    ＜4.5

    MP5120-FM02

    -10~+10

    20

    ＜4.5

    MP5121-FM02

    -10~+10

    21

    ＜4.5

    MP5122-FM02

    -10~+10

    22

    ＜5.0

    MP5123-FM02

    -10~+10

    23

    ＜5.0

    MP5124-FM02

    -10~+10

    24

    ＜5.0
