    • 190-1100nm Silicon-Based Amplified Photodetector, Photodetector Size Φ9.8mm

    IdealPhotonics' silicon-based amplified photodetector covers a wavelength range of 190nm to 1100nm. It features 8 adjustable gain levels, enabling quantitative photoconversion with a wide dynamic range, suitable for various optoelectronic development scenarios. With excellent performance and high cost-effectiveness, it provides comprehensive technical support and is commonly used in ultraviolet and visible light measurements.

    产品特点Wavelength range from 190nm to 1100nm, commonly used in ultraviolet and visible light measurements. 、Amplified photodetector with 8 adjustable gain levels for quantitative photoconversion. 、Wide dynamic range, suitable for various optoelectronic development scenarios. 、Excellent performance and high cost-effectiveness, with comprehensive technical support. 、Custom non-standard services available.

    产品货号A80153414

    应用领域Ultraviolet and visible light measurements.

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • General Parameters



    Parameter

    Value

    Wavelength Range

    350-1100nm

    190-1100n m

    320-1100n m

    190-1100nm

    Sensitive Area

    3.6mm×3.6mm

    Φ9.8mm

    Response Time Constant

    10ns

    0.5us

    35ns

    3us

    Bandwidth Range

    DC ～12MHz

    DC ～11MHz

    Gain Range

    Hi-Z Load: 0.51kV/A ~ 4.75MV/A; 50Ω Load: 0.75kV/A ~ 2.38MV/A

    Signal Amplitude

    Hi-Z Load: 0 ~ 10V; 50Ω Load: 0 ~ 5V

    Gain Adjustment

    Rotatable dial adjustment: 0~70dB, 10dB per step, 8 steps. Bandwidth inversely proportional to gain.

    Sensitive Depth

    0.13"  (3.3  mm)

    Detector Weight

    0.10kg

    Operating Temperature

    10-40℃

    Storage Temperature

    -20-70℃

    Dimensions

    2.79" X 2.07" X 0.89"  (70.9  mm X     52.5  mm X  22.5  mm)

    NEP

    3.25~75.7 pW/Hz1/2

    2.12~69.7p W/Hz1/2

    2.67~71.7p W/Hz1/2

    1.33~45.1pW/Hz1/2

    Power Supply Interface

    Power Switch

    Signal Interface

    Gain Adjustment

    Mounting Interface

    Optical Interface

    LUMBERG  RSMV3  FE MALE

    SlideSwitch with LED Indicator

    BNC Female

    8-step rotary knob

    M4 X 2

    SM1 X  1

    SM0.5 X  1



    8-Step Quantitative Adjustable Gain Parameters

    0dB

    10dB

    20dB

    30dB

    Gain (Hi-Z)

    1.51× 103V/ A

    Gain (Hi-Z)

    4.75× 103V /A

    Gain (Hi-Z)

    1.5 × 104V/ A

    Gain (Hi-Z)

    4.75× 104 V/A

    Gain (50Ω)

    0.75× 103V/ A

    Gain (50Ω)

    2.38× 103V /A

    Gain (50Ω)

    0.75× 104V /A

    Gain (50Ω)

    2.38× 104 V/A

    Bandwidth (BW)

    12MHz

    Bandwidth (BW)

    1.6MHz

    Bandwidth (BW)

    1MHz

    Bandwidth (BW)

    260kHz

    Noise (RMS)

    258uV

    Noise (RMS)

    192uV

    Noise (RMS)

    207uV

    Noise (RMS)

    211uV

    40dB

    50dB

    60dB

    70dB

    Gain (Hi-Z)

    1.51× 105V/

    Gain (Hi-Z)

    4.75× 105V

    Gain (Hi-Z)

    1.5 × 106V/

    Gain (Hi-Z)

    4.75× 106


    A


    /A


    A


    V/A

    Gain (50Ω)

    0.75× 105V/ A

    Gain (50Ω)

    2.38× 105V /A

    Gain (50Ω)

    0.75× 106V /A

    Gain (50Ω)

    2.38× 106 V/A

    Bandwidth (BW)

    90MHz

    Bandwidth (BW)

    28MHz

    Bandwidth (BW)

    9kHz

    Bandwidth (BW)

    3kHz

    Noise (RMS)

    214uV

    Noise (RMS)

    234uV

    Noise (RMS)

    277uV

    Noise (RMS)

    388uV

    Signal Offset

    ±8mV(Typ.) ， ±12mV(Max)

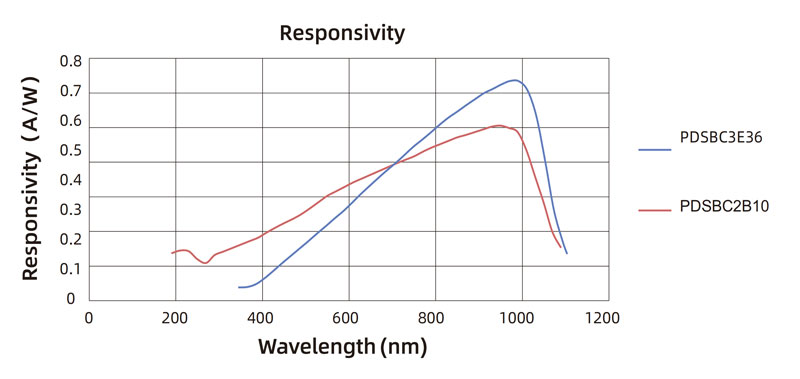

    SI Response Curve：




    Attachment 1: Optional Configuration Table

    Silicon-based Amplified Photodetector

    Optional Configuration

    Product Name

    Material

    Type

    Features

    Wavelength Range Sensitive Area Size

    Optional Configuration

    PD:"Photodetector"

    S: Si Silicon-based

    A: Amplifying Type

    A: Adjustable Gain

    1A36：190-1100nm ，3.6 ×3.6

    mm






    1A98：190-1100nm，Φ9.8mm






    3D98：320-1100nm，Φ9.8mm






    3E36：350-1100nm ，3.6 ×3.6

    mm




    Attachment 2：Model and Part Number Correspondence Table

    Model

    Part Number

    Specs

    PDSAA1A36

    A80153413

    190-1100nm Silicon-based Amplified Photodetector, Sensitive Area: 3.6 × 3.6mm, 0-70dB Adjustable Gain in 8 Steps, Bandwidth: DC ~ 12MHz

    PDSAA1A98

    A80153414

    190-1100nm Silicon-based Amplified Photodetector, Sensitive Area: Φ9.8mm, 0-70dB Adjustable Gain in 8 Steps, Bandwidth: DC ~ 11MHz

    PDSAA3D98

    A80153415

    320-1100nm Silicon-based Amplified Photodetector, Sensitive Area: Φ9.8mm, 0-70dB Adjustable Gain in 8 Steps, Bandwidth: DC ~ 11MHz

    PDSAA3E36

    A80153416

    350-1100nm Silicon-based Amplified Photodetector, Sensitive Area: 3.6 × 3.6mm, 0-70dB Adjustable Gain in 8 Steps, Bandwidth: DC ~ 12MHz
