Fluoride single mode ZBLAN fiber patch cord 0.3-3.9um (core diameter 6.5um FC/APC 2m long)

Fluoride single mode ZBLAN fiber patch cord 0.3-3.9um (core diameter 6.5um FC/APC 2m long)

ZFG fiber is a composite glass fiber composed of heavy metal fluoride. Compared with the widely used quartz fiber, ZFG fiber has the characteristics of wide transmission wavelength range of 0.3μm~4.5μm and high emission efficiency of doped rare earth ions. In the application field of fiber lasers and amplifiers, in order to optimize their efficiency, through a unique fiber manufacturing technology, we have launched a low-cost production of high-quality (especially low-loss) fluoride fiber single-mode fiber with a specific D-type core. Customized fiber lasers and amplifiers can be designed and manufactured. Mid-IR supercontinuumLVF nonlinear single-mode fiber can achieve very flat and broadband output spectrum due to its excellent performance. (Mid-infrared supercontinuum laser) Mid-infrared spectroscopy and optical measurement. We provide a full range of ZFG fiber products to meet the needs of demanding fiber lasers, and can customize the cut-off wavelength, core diameter, cladding diameter, etc. We provide you with a full range of infrared external line solutions.

Product features：Specific D-core design、 Extremely flat and broadband output spectrum、 Mid-infrared supercontinuum spectrum、 Nonlinear single-mode fiber、 Low loss、 High power handling capability

Part Number：--

Application area：Fiber amplifiers、 Mid-infrared supercontinuum lasers、 Medical fields、 Optical measurement and installation、 Biochemical sensing

Add to Cart Consult Favorite

Related Products

Fluoride single mode ZBLAN fiber patch cord 0.3-4.50um (core diameter 8.5um FC/APC 1.5m long)

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Dimension Drawing

General Parameters

Since the discovery of ZBLAN glass in 1974, a variety of fluoride optical fibers have been developed, including ZrF 4, InF 3, and AlF 3 based fibers, designed for mid-IR applications.

Typical compositions of ZFG and IFG glasses are:

ZFG (Zirconium ZrF4 Fluoride Glass) = fluorozirconate fibers

53 ZrF4 -20 BaF2 -4 LaF3 -3 AlF3 -20 NaF

IFG (InF3 Fluoride Glass) = fluoroindate fibers

40 InF3 -20 ZnF2 -20 SrF2 -20 BaF2

They have the specificity of high transparency from UV to mid-IR: 0.22 to 7 µm and 0.255 to 8 µm for ZFG and IFG (3 mm thick sample), respectively.

Thus, they completely cover the 3-5 µm atmospheric transparency window and partially cover the molecular fingerprinting region, paving the way for numerous passive and active applications.

Part Number parameters

Test Report


General parameters

Parameter characteristics

Transmission range (µm)	0.3-4.5
Typical loss (dB/Km)	＜10
Fresnel reflection loss (air)	4%
Coating material	UV Curable Acrylate

Technical parameters:

PN#	ZFG-SM-(1.95)6.5/12 5	ZFG-SM-(2.55)8.5/12 5	ZFG-SM-(2.2)7.5/150	ZFG-SM-(2.2)14/250
Core/cladding diameter (um)	6.5/125	8.5/125	7.5/150	14/250
Numerical aperture	0.23	0.23	0.23	0.125
Cut-off wavelength (um)	1.95	2.55	2.2	2.2
Operating wavelength (um)	0.3~3.90	0.3~4.50	0.3-4.0	0.3~4.1
Short-term bending radius (mm)	≥15	≥15	≥15	≥25
Long-term bending radius (mm)	≥45	≥45	≥45	≥75

Ordering Info

Example: ZFG SM (1.95) 6.5/125

Cut-off wavelength (μm): 1.95/2.55/2.2

Numerical aperture: 0.23/0.23/0.125

Core/cladding diameter (μm): 6.5/125; 8.5/1235; 14/250

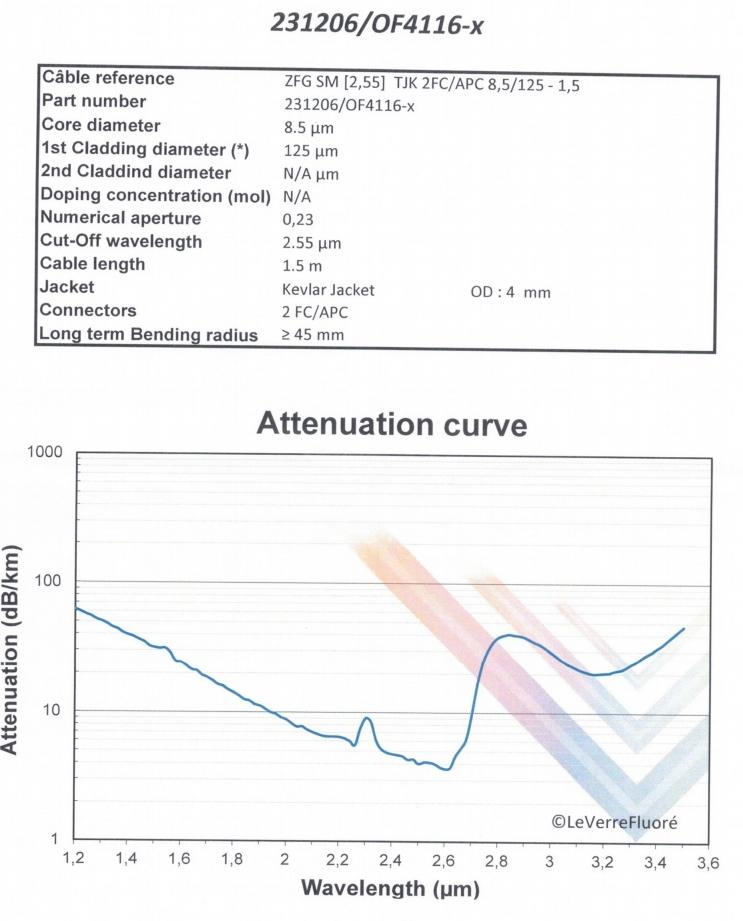

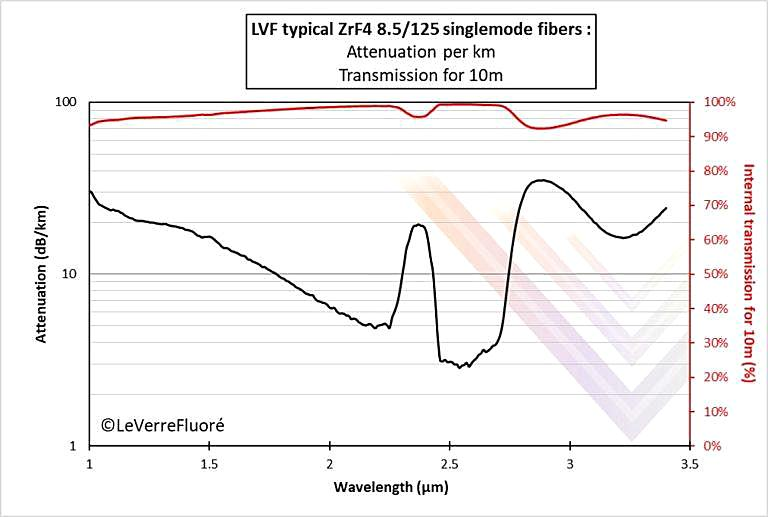

Insertion loss test curve


Optional Configurations

Downloads

Fluoride single mode ZBLAN fiber patch cord 0.3-3.9um (core diameter 6.5um FC/APC 2m long).pdf
