Single Mode Fiber Collimator 405nm Beam Waist Spot 0.70mm

It is composed of a fiber pigtail and a focusing lens that are precisely positioned and packaged. It can convert the outgoing light from the fiber into a parallel beam (Gaussian beam), or focus and couple the external parallel light into the fiber. It can also be used alone to achieve a light spot of the required size at a specific position according to the established divergence angle.

产品特点

产品货号A80152593

应用领域

产品单价联系客服询价

到货日期请咨询客服获得货期

产品库存请咨询客服

Sherry

电话：16628709332

邮箱：moli@microphotons.com

加入询价单在线咨询

相关产品

主要参数
可选配置表
资料下载

主要参数

核心参数

尺寸图

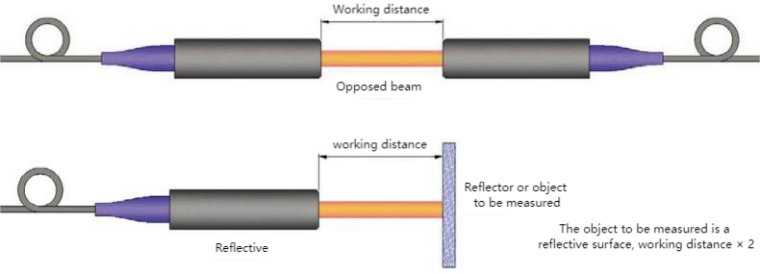

According to the working distance, it can be divided into fixed working distance (fixed focus) collimator and collimator within the working distance range (long depth of field). Spherical lenses or gradient refractive index lenses are selected according to different working distances.

We recommend that the collimator be installed in an optical precision adjustment frame for alignment and debugging to ensure optimal coupling efficiency when coupling spatial beams.

General parameters

Difference	Fixed working distance (fixed focus) collimator	Collimator with adjustable working distance (long depth of field)
Working distance	A fixed position within 1M	Universally applicable within 1M working distance
Beam characteristics	Collimation/convergence/fixed divergence angle	Collimation
Light spot	precise spot size at a fixed position, the minimum size can be 20um, and the spot changes greatly when moving forward and backward	The spot size changes very little when moving back and forth within the adjustable distance range
Pairing loss	The pairing loss changes significantly with distance	Insensitive to changes in pairing loss with distance
Output loss	No difference
Return loss	No difference

405HP single mode fiber collimator (fixed working distance) fiber applicable wavelength range 400nm-680nm
Working wavelength	Working bandwidth	Working distance	Waist spot	Collimated beam divergence	Package diameter	Connectors	Output loss (excluding connector)	Return loss	Mode Field Diameter
405nm	±20nm	100mm	0.27mm	0.12°	3.2mm	FC/APC	≤0.35dB	≥55dB	3.0±0.5um
405nm	±20nm	300mm	0.70mm	0.045°	3.2mm	FC/APC	≤0.35dB	≥55dB	3.0±0.5um
450nm	±20nm	100mm	0.26mm	0.13°	3.2mm	FC/APC	0.35dB	≥55dB	3.5±0.5um
450nm	±20nm	300mm	0.68mm	0.05°	3.2mm	FC/APC	≤0.35dB	≥55dB	3.5±0.5um
525nm	±20nm	100mm	0.31mm	0.13°	3.2mm	FC/APC	≤0.35dB	≥55dB	3.6±0.5um
525nm	±20nm	300mm	0.80mm	0.05°	3.2mm	FC/APC	≤0.35dB	≥55dB	3.6±0.5um
630HP single mode fiber collimator (fixed working distance) fiber applicable wavelength range 630nm-860nm
Working wavelength	Working bandwidth	Working distance	Waist spot	Collimated beam divergence	Package diameter	Connectors	Output loss (excluding connector)	Return loss	Mode Field Diameter
635nm	±20nm	100mm	0.39mm	0.15°	3.2mm	FC/APC	≤0.35dB	≥55dB	4.2±0.5um
635nm	±20nm	300mm	0.85mm	0.06°	3.2mm	FC/APC	≤0.35dB	≥55dB	4.2±0.5um
635nm	±20nm	1000mm	1.32mm	0.04°	3.2mm	FC/APC	≤0.35dB	≥55dB	4.2±0.5um

780HP single mode fiber collimator (fixed working distance) fiber applicable wavelength range 780nm-970nm
Working wavelength	Working bandwidth	Working distance	Waist spot	Collimated beam divergence	Package diameter	Connectors	Output loss (excluding connector)	Return loss	Mode Field Diameter
780nm	±20nm	100mm	0.39mm	0.15°	3.2mm	FC/APC	≤0.35dB	≥55dB	4.5±0.5um
780nm	±20nm	300mm	0.99mm	0.06°	3.2mm	FC/APC	≤0.35dB	≥55dB
780nm	±20nm	1000mm	1.55mm	0.04°	4.0mm	FC/APC	≤0.35dB	≥55dB
850nm	±20nm	100mm	0.37mm	0.17°	3.2mm	FC/APC	≤0.35dB	≥55dB	5.0±0.5um
850nm	±20nm	300mm	0.97mm	0.065°	3.2mm	FC/APC	≤0.35dB	≥55dB
850nm	±20nm	1000mm	1.51mm	0.043°	4.0mm	FC/APC	≤0.35dB	≥55dB
HI1060 single mode fiber collimator (fixed working distance) fiber applicable wavelength range 980nm-160onm
Working wavelength	Working bandwidth	Working distance	Waist spot	Collimated beam divergence	Package diameter	Connectors	Output loss (excluding connector)	Return loss	Mode Field Diameter
980nm	±20nm	100mm	0.36mm	0.20°	3.2mm	FC/APC	≤0.5 dB	≥55dB	5.9±0.3um
980nm	±20nm	300mm	0.96mm	0.08°	3.2mm	FC/APC	≤0.5 dB	≥55dB
980nm	±20nm	1000mm	1.48mm	0.05°	4.0mm	FC/APC	≤0.5 dB	≥55dB
1064nm	±20nm	100mm	0.37mm	0.19°	3.2mm	FC/APC	≤0.5 dB	≥55dB	6.2±0.3um
1064nm	±20nm	300mm	0.99mm	0.08°	3.2mm	FC/APC	≤0.5 dB	≥55dB
1064nm	±20nm	1000mm	1.53mm	0.05°	4.0mm	FC/APC	≤0.5dB	≥55dB

SMF-28e single mode fiber collimator (fixed working distance) fiber applicable wavelength range 1260nm-1650nm
Working wavelength	Working bandwidth	Working distance	Waist spot	Collimated beam divergence	Package diameter	Connectors	Output loss (excluding connector)	Return loss	Mode Field Diameter
1310nm	±20nm	100mm	0.38mm	0.25°	3.2mm	FC/APC	≤0.5 dB	≥55dB	9.6±0.4um
1310nm	±20nm	350mm	0.73mm	0.13°	3.2mm	FC/APC	≤0.5 dB	≥55dB
1310nm	±20nm	1000mm	0.91mm	0.11°	4.0mm	FC/APC	≤0.5 dB	≥55dB
1550nm	±20nm	100mm	0.46mm	0.26°	3.2mm	FC/APC	≤0.5 dB	≥55dB	10.4±0.5um
1550nm	±20nm	350mm	0.85mm	0.14°	3.2mm	FC/APC	≤0.5 dB	≥55dB
1550nm	±20nm	1000mm	1.15mm	0.10°	4.0mm	FC/APC	≤0.5 dB	≥55dB
1654nm	±5nm	100mm	0.47mm	0.26°	3.2mm	FC/APC	≤0.5 dB	≥55dB
1654nm	±5nm	350mm	0.89mm	0.14°	3.2mm	FC/APC	≤0.5 dB	≥55dB
1654nm	±5nm	1000mm	1.22mm	0.10°	4.0mm	FC/APC	≤0.5 dB	≥55dB

HI1060 single mode fiber collimator (adjustable working distance)
Working wavelength	bandwidth	Working distance	Exit spot	Beam divergence	Package diameter	Connectors	Pairing loss	Return loss	Mode Field Diameter
980nm	±20nm.	0-350mm	0.99mm	0.07°	3.2mm	FC/APC	≤0.8dB	≥55dB	5.9 ±0.3um
980nm	±20nm	5o-1000mm	1.54mm	0.06°	4.0mm	ICAPC	≤1.0dB	≥55dB	5.9 ±0.3um
1064nm	±20nm	0-350mm	1.0mm	0.075°	3.2mm	FC/APC	≤0.8dB	≥55dB	6.2 ±0.3um
1064nm	±20nm	50-1000mm	1.6mm	0.06°	4.0mm	FC/APC	≤1.0dB	≥55dB	6.2 ±0.3um
SMF-28e single mode fiber collimator (adjustable working distance)
Central wavelength	bandwidth	Working distance	Exit spot	Beam divergence	Package diameter	Connectors	Pairing loss	Return loss	Mode Field Diameter
1310nm	±20nm	0-350mm	0.81mm	0.12°	3.2mm	FC/APC	≤0.7dB	≥55dB	9.2 ±0.4um
1310nm	±20nm	50-1000mm	1.27mm	0.09°	4.0mm	FC/APC	≤0.9dB	≥55dB	9.2 ±0.4um
1550nm	±20nm	0-350mm	0.92mm	0.13°	3.2mm	FCAPC	≤0.7dB	≥55dB	10.4 ±0.5um
1550nm	±20nm	50-1000mm	1.45mm	0.09°	4.0mm	FC/APC	≤0.9dB	55dB
1654nm	±20nm	0-350mm	0.96mm	0.13°	3.2mm	FC/APC	≤0.7dB	≥55dB
1654nm	±20nm	50-1000mm	1.50mm	0.09°	4.0mm	FC/APC	≤0.9dB	≥55dB
