Home/ Products/ Optical Accessories/ Optical Components/ Reflector/ LAYERTEC optical cavity attenuated low dispersion high reflection flat concave mirror/ Cavity Ring-Down Plano-Concave Mirror 1600-1700nm Reflectivity>99.99%

    • Cavity Ring-Down Plano-Concave Mirror 1600-1700nm Reflectivity>99.99%

    Laser Mirror: Fused silica | pl-concave | ?=25.0(-0.1)mm | te=6.35(±0.10)mm | //<5min S1: ?e21 | 3/0.2(0.2) [L/10] | 5/2x0.04; L1x0.004 | chamfer 0.3 AR(0°,1600-1700nm)<0.25% S2(^): r=1000mm(±1%) CC | ?e21 | 3/-(0.2) [L/10 reg.] | 5/1x0.04; L1x0.004 | chamfer 0.3 ?e10 | 5/1x0.016 HR(0°,1600-1700nm)>99.99% (low loss) T(0°,1650nm)~0

    Product features：

    Part Number：--

    Application area：

    Add to Cart Consult Favorite

    Related Products

    Main parameters
  • Core parameters

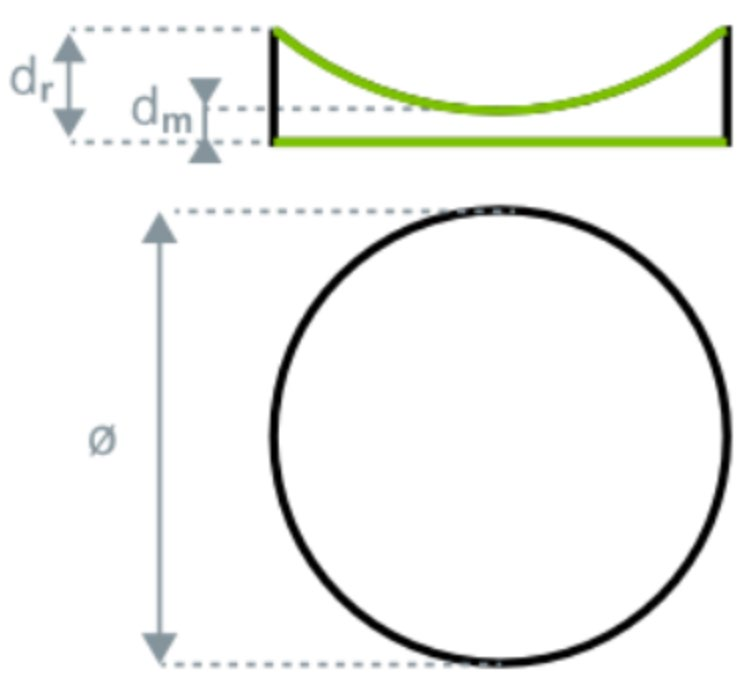

  • Dimension Drawing
    • General Parameters

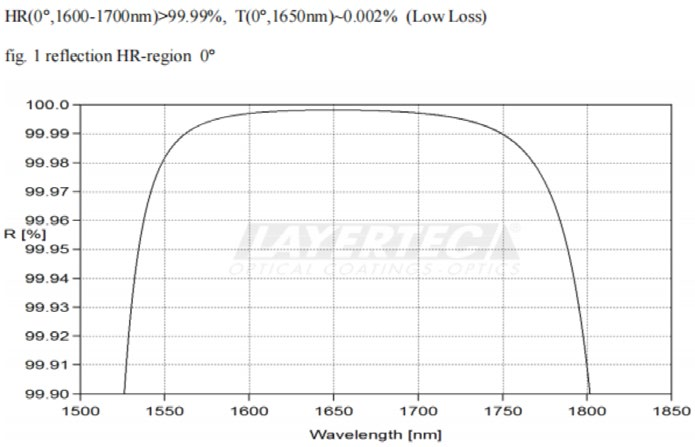

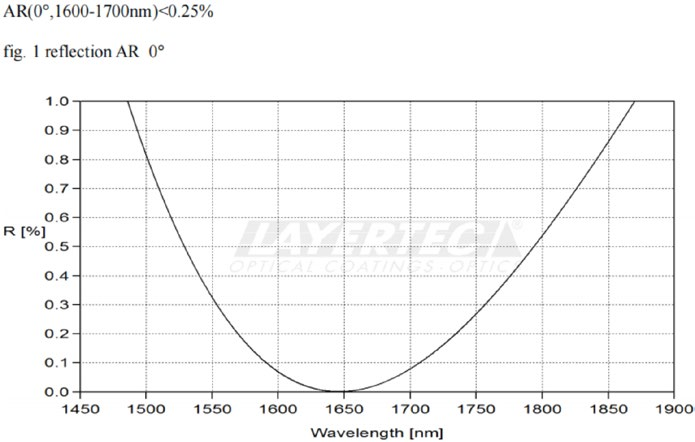

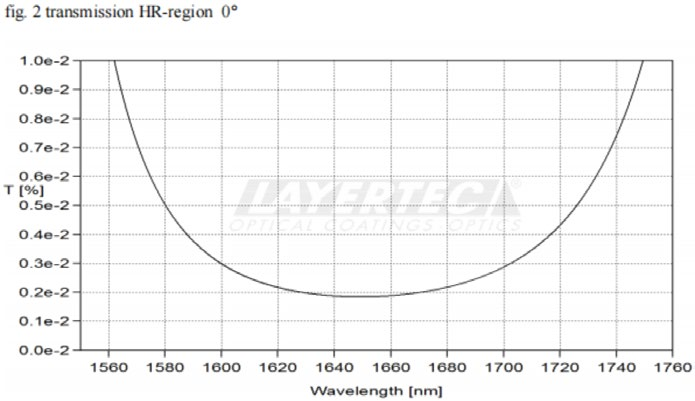

    Curve :





    General parameters:










    Optional Configurations

    --

    Downloads

    No resources available
