    1060nm 14PIN Butterfly Package DFB Laser, with built-in TEC, lens, thermistor, and PD integrated in the 14PIN butterfly package. The hermetically sealed design meets telecom-grade operational requirements, featuring narrow linewidth and high power (50mW). It supports PM980 or HI1060 fiber output and also supports custom pin definition as per customer requirements.

    产品特点14PIN butterfly sealed package、 Custom wavelengths from 1018-1200nm with integrated TEC and thermistor、 DFB chip, narrow linewidth、 PM980/HI1060 fiber pigtail options available

    产品货号无

    应用领域Ultrafast laser SHG seed light

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Optical-Electrical Characteristics (25°C)

    Optical Electrical Characteristics (TCHIP = 15 - 35 °C, TCASE = 25 °C, Iop = 150 mA)

    Parameter

    Min

    Typ.

    Max

    Unit

    Central Wavelength

    1058

    1060

    1062

    nm

    SMSR

    40

    50

    -

    dB

    Linewidth

    -

    5

    -

    MHz

    Optical Power (inside fiber)

    30

    50

    -

    mW

    Drive Voltage

    -

    2

    2.5

    V

    Drive Current

    -

    150

    250

    mA

    Mode Hop-Free Current Range

    20

    50

    -

    mA

    Threshold Current

    -

    35

    -

    mA

    Optical Electrical Characteristics (TCHIP = 15 - 35 °C, TCASE = 25 °C, Iop = 150 mA)

    Slope Efficiency

    -

    0.25

    -

    W/A

    Current Wavelength Coefficient

    -

    0.002

    -

    nm/mA

    Temperature Wavelength Coefficient

    -

    0.08

    -

    nm/°C

    MPD Response Rate

    -

    0.5

    -

    A/W

    Extinction Ratio

    -

    16

    -

    dB



    Optical Fiber Characteristics：

    Fiber Type

    PM980-XP

    Mode Field Diametera

    6.6 ± 0.5 µm @ 980 nm

    Numerical Aperture

    0.10

    Fiber Length

    1.5 m

    Connector

    FC/APC (2.0 mm Narrow Key)

    Loose Tube

    Ø900 µm



    Limiting Parameters

    Parameter

    Typical Value

    Unit

    Optical Fiber Power

    50

    mW

    Operating Current

    400

    mA

    LD Reverse Voltage

    2

    V

    PD Reverse Voltage

    15

    V

    Case Operating Temperature

    0 to 50

    °C

    Storage Temperature

    -10 to 65

    °C

    TEC Current

    2.5

    A

    TEC Voltage

    4.0

    V

    Thermistor Resistance

    10

    kOhms

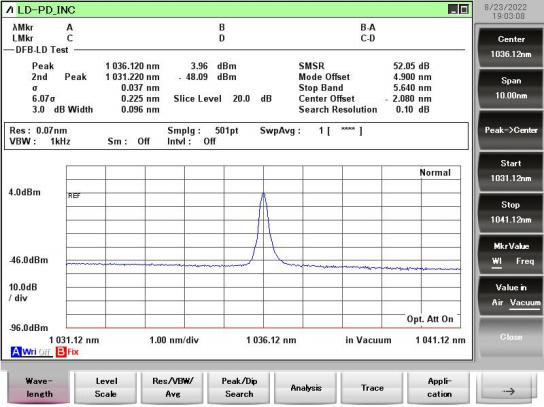

    Spectral Analysis

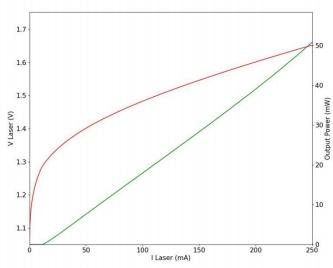

    L-I-V Curve

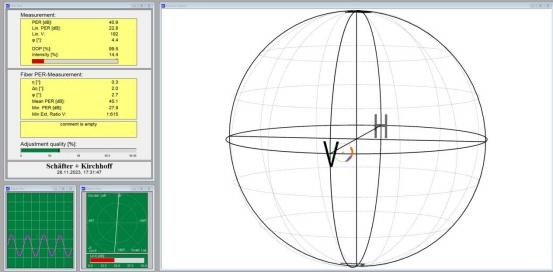

    Extinction Ratio Test (Polarization Maintaining Version)

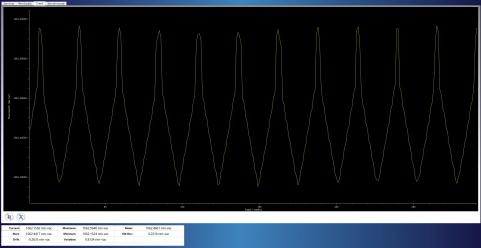

    Mode hope tuning Range



    Pin Definition: Standard A



    Standard B



    Ordering Information:

    DFB- □□□□-☆-A8▽- XX

    □□□□: Wavelength 1018: 1018nm

    1030: 1030nm 1053: 1053nm 1064: 1064nm 1084: 1084nm

    *****

    1120: 1120nm

    ☆ : Pin Definition A: Telecom A

    B: Pump B

    ▽ : Wavelength Tolerance 1: ±1nm

    2: ±2nm

    XX: Fiber and Connector Type SA=HI1060+ FC/APC

    SP=HI1060+ FC/PC

    PA=PM980 Fiber+ FC/APC PP=PM980 Fiber+ FC/PC

    Our default packaging does not include an isolator. If the customer requires an isolator, please add "-ISO" at the end of the model number. The output power with the isolator is guaranteed to be 30mW+.

    Eg:

    PN#DFB-1060-B-A81-PA-ISO
