• 310X310μm homogenized fiber connector

    Homogenized fiber has unique spot homogenization and disturbance characteristics. When Gaussian-distributed laser is input, it can obtain a flat-top spot with uniform energy distribution after passing through square/rectangular/octagonal fiber. At the same time, the coupling efficiency is higher than that of circular fiber. It is an ideal fiber for precision laser processing (welding, cutting, marking), astronomical observation, night vision monitoring, laser biological detection and other application fields. This product link is the related model of homogenized bare fiber + connector jumper.

    产品特点Even energy distribution and high damage threshold 、Large core diameter energy fiber

    产品货号A80150688

    应用领域Optical application experiment 、Laser transmission

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话:16628709332

    邮箱:moli@microphotons.com

    主要参数
  • 核心参数
  • 尺寸图
  • Technical parameters:

    Parameter

    Index

    Fiber Type

    WU375*375μm,310X310μm, 600X600μm

    length

    L≤1m Tolerance: ±10mm 1m<L≤3m Tolerance: ±15mm

    3m<L≤5m Tolerance: ±30mm

    5m<L Tolerance: ±30mm

    Connector Type

    SMA/FC-SMA/FC/SMA905

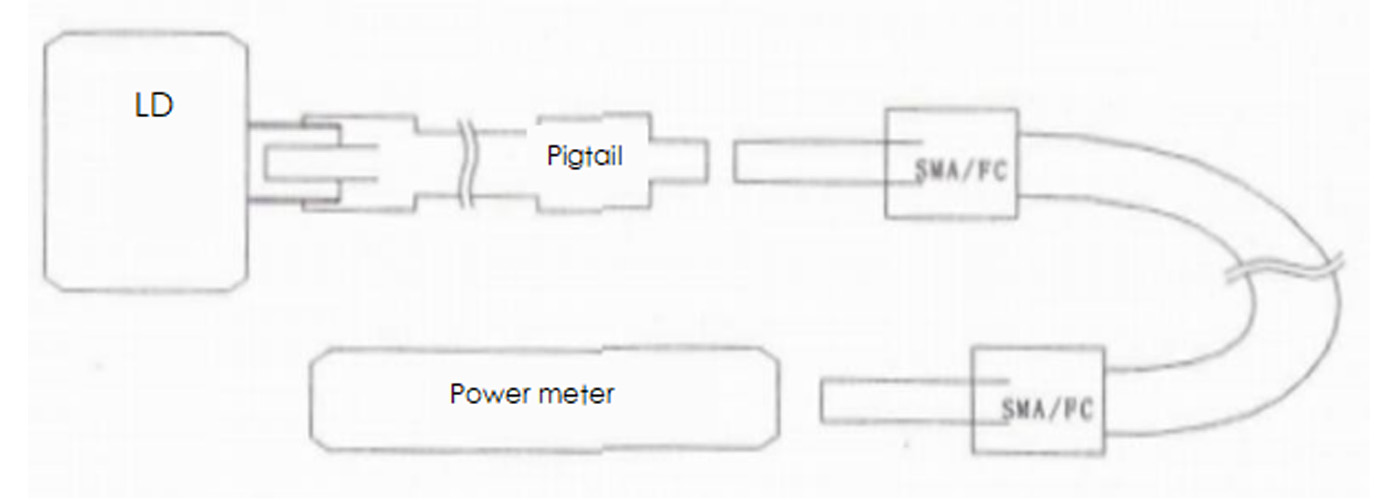

    Test diagram
