• 1550nm Phase Modulator 300 MHz

    The PM-1550-300-PA phase modulator is a high-performance LiNbO3 modulator with a bandwidth of up to 300 MHz. This modulator provides phase modulation with low driving voltage. Its low insertion loss ensures maximum transmission power. The PM-1550-300-PA modulator uses polarization-maintaining (PM) input and output fibers, making it easy to integrate with other optical components.

    产品特点Bandwidth up to 300 MHz 、Operating range: 1525 nm to 1565 nm 、Low insertion loss, typical 3 dB 、Minimal back reflection 、Drive voltage: 4V @ 1 MHz

    产品货号D80020035

    应用领域Coherent communication 、Optical chirping 、Optical sensing 、FM spectroscopy 、Frequency shifting 、Laser linewidth broadening

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Moli

    电话:13061644116

    邮箱:moli@microphotons.com

    主要参数
  • 核心参数
  • 尺寸图
  • Main Parameters

    Electro-O  tical Characteristics (Tsub = 25°C, continuous wave bias, unless otherwise s  ecified)

    Product Model

    PM-1550-300-PA

    Waveguide Process

    Annealed Proton Exchange (APE)

    Integrated Photodiode

    No

    Operating Wavelength Range

    1525nm to  1570nm

    Insertion Loss

    3 dB typical, 3.5 dB  max.

    On/Off Extinction Ratio

    ≥ 21 dB  min.

    Optical Return Loss

    ≥  30  dB

    Electrical Parameters

    RF Port


    Drive Voltage (Vpi)

    8 V typ. @  1  MHz

    Electro-Optic Bandwidth @ -3 dB

    300  MHz  typ.,  @ -3 dB

    RF Return Loss


    RF Input Power

    +30  dBm  max.

    RF Impedance


    Bias Port


    Bias Drive Voltage (Vpi)

    N/A

    Input Impedance

    N/A

    Environmental/User Interface


    Input Fiber

    Panda –  PM1550

    Output Fiber

    Panda –  PM1550

    Output Fiber Connector

    PM FC/APC, can be customized as per client needs

    RF Connector

    3pin

    Bias Connector


    Dimensions

    3.783”x  0.981” x  0.640”

    Operating Temperature Range

    -55 ºC to  +75  ºC

    Storage Temperature Range

    -60 ºC to  +90  ºC



    Phase Modulator Test Report

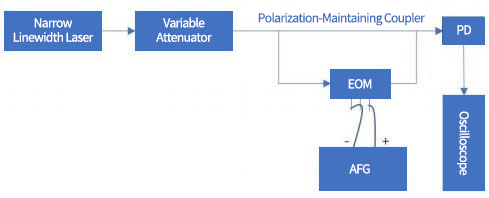

    The test optical path diagram is shown below:

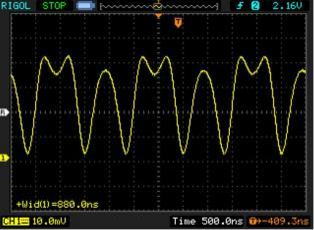

    The following results were obtained on the oscilloscope:




    The output impedance of the AFG is 50Ω, generating a sine wave signal at 500kHz with an amplitude of 0–3.8V. The 3.8V should represent the half-wave voltage, but a full-wave phase shift is displayed on the oscilloscope, possibly due to an    impedance mismatch between the AFG and the product.


    Ordering Information

    PM-W□□□□--XX

    PM: Phase Modulator/IM: Intensity Modulator □□□□: Wavelength

    850: 850nm

    1064: 1064nm 1310: 1310nm 1550: 1550nm : Bandwidth 300: 300MHz

    10G: 10GHz

    XX: Fiber and Connector Type

    SA = SMF-28E+ FC/APC  SP = SMF-28E+ FC/PC    PP = PM Fiber+ FC/PC   PA = PM Fiber+ FC/APC
