首页 Light Sources Pulse Light Source Nanosecond pulse laser 1550nm nanosecond high-power pulse light source 1550nm nanosecond high power pulse light source module (pulse width 3ns peak power 4kW)

    • 1550nm nanosecond high power pulse light source module (pulse width 3ns peak power 4kW)

    The high-power nanosecond pulsed fiber laser uses a high-power gain fiber module, coupled with dedicated drive and temperature control circuits, to output high peak power and high-energy laser pulses. The laser wavelength and power are stable, and the modular design facilitates system integration. It can be used in applications such as LiDAR and distributed fiber optic sensing systems.

    产品特点High pulse energy、 Adjustable pulse width, repetition frequency, and power、 Desktop or modular packaging

    产品货号A80080098

    应用领域Laser ranging radar、 Vehicle-mounted radar、 Fiber optic distributed sensing

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Tuning characteristics

    Parameter

    Unit

    Typical Value

    Notes

    Central Wavelength

    nm

    1550±1


    Single Pulse Energy

    μJ

    100

    @ ≤10kHz

    Peak Output Power

    kW

    1～10


    Average Laser Power

    W

    2

    @≥100kHz

    Pulse Width

    ns

    1～250


    Repetition Frequency

    kHz

    1～3000


    Beam Quality (M2)

    -

    ≤1.1


    Output Isolation

    dB

    ≥30


    Short-term Stability (15 min)

    dB

    ≤ ±0.02

    Equivalent to≤±0.5%

    Long-term Stability (8 h)

    dB

    ≤ ±0.05

    Equivalent to≤±1.2%

    Output Laser Polarization State

    -

    Random


    Tail Fiber Type

    -

    SMF-28 Fiber

    900um jacket, 0.3m length

    Tail Fiber Connector Type

    -

    FC/APC or Fiber Collimator




    Electrical and Environmental Parameters

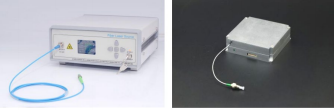

    Benchtop

    Module

    Control Method

    Button

    RS232 Serial Communication

    Communication Interface

    DB9

    XH1.27-11pin

    Triggering Method

    TTL Internal Trigger

    TTL Internal Trigger

    Power Supply

    100~240VAC, <30W

    12V2ADC, <30W

    Dimensions

    260(W)×320(D)×120(H)mm

    100(W)×100(D)×30(H)mm

    Operating Temperature Range

    -5~+35°C

    Operating Humidity Range

    0~70%



    Ordering info/PN#

    HP-NSFL-A

    Working Wavelength (nm)

    Pulse Width (ns)

    Peak Power (kW)

    Repetition Frequency (kHz)

    Tail Fiber Type

    Output Method

    Packaging Form


    1550

    1/3/10/100/250

    1/5/10

    1/100/1000

    SM=SMF-28

    FA=FC/APC C=Collimator

    M=Module

    B=Benchtop


    Example：HP-NSFL-A-1550-1-10-10-SM-FA-M

    High-power nanosecond pulsed fiber laser, 1550nm wavelength, 1ns pulse width, 10kW peak power, 10kHz repetition rate, single-mode fiber, FC/APC output, module packaging.

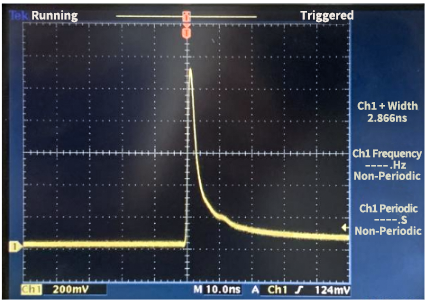

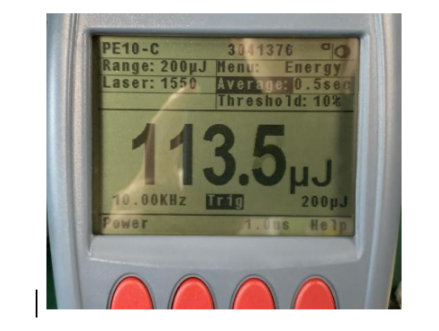

    Pulse width test and pulse energy test @ 10kHz, 3ns.




    Spectrum test @ 10kHz, 3ns, 100μJ.
