首页 Optical Accessories Optical Isolators Near-IR optical isolator Free space isolator (355-4500nm customizable) 1064nm Large Aperture Free-Space Optical Isolator

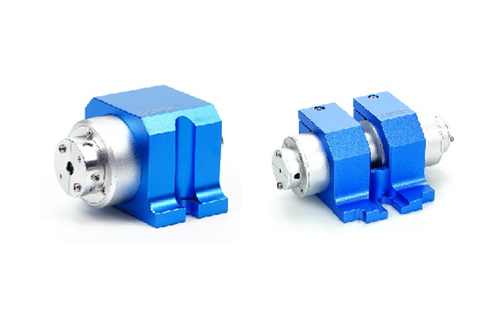

    • 1064nm Large Aperture Free-Space Optical Isolator

    The HPISO-FS-100-12-1064-C-A09 free-space isolator is available in two types: polarization-dependent and polarization-independent. The polarization-dependent isolator, also known as the Faraday isolator, is composed of three parts: a polarizer, a Faraday rotator, and an analyzer (with its polarization axis at 45° to the polarizer's axis). The polarization-independent isolator typically consists of a birefringent crystal (or polarizer), a Faraday rotator, and a half-wave plate. It is commonly used in fiber lasers and effectively maintains the stability of optical systems. The isolator uses high-quality magneto-optic crystals, offering characteristics such as low absorption, high extinction ratio, and low loss. It delivers outstanding and reliable performance, with a maximum peak isolation of 45 dB, an aperture of up to 45 mm, and a typical transmission of up to 95%. Customizations are available upon request

    产品特点

    产品货号无

    应用领域Laser Precision Processing、 Laser Sensing Systems、 Ultrafast Laser Systems、 OCTSystems、 Laser Detection

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Moli

    电话：13061644116

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Model Parameters

    1. Specifications

    Wavelength

    1064nm± 10nm

    Peak Isolation@23℃

    >30dB

    Transmission

    >93%

    Optical Power(Average)

    100W

    Clear Aperture

    12mm

    Damage Threshold

    10J/cm2 @ 1064nm, 10ns, 10Hz

    Input Polarization

    Horizontal

    Output Polarization

    Horizontal

    Operating Temperature

    10-30℃

    Storage Temperature

    -10-60℃



    Model: HPISO-FS-100-12-1064-C-A09




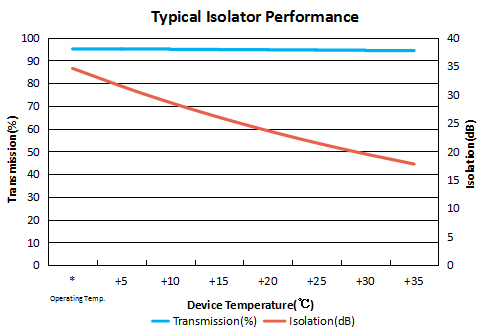

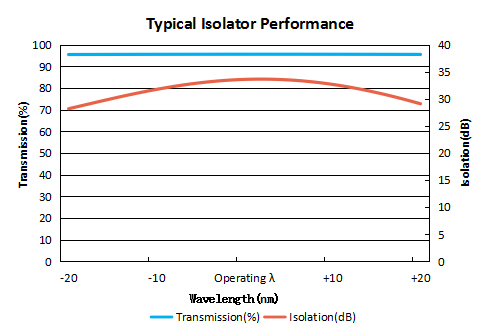

    Reliability Test

    Test Item

    Condition

    Frequency

    Sampling

    High-low temperature cycle test

    Temperature -20℃~ 70℃, total time ≥24 hours

    1 / batch

    /





    Polarization State Reference:



    ● All models of free-space isolators will non-reciprocally rotate the polarization state by 45° along the polarization plane.



    ● Additional 1/2 waveplates can be provided upon request to alter the output polarization state.

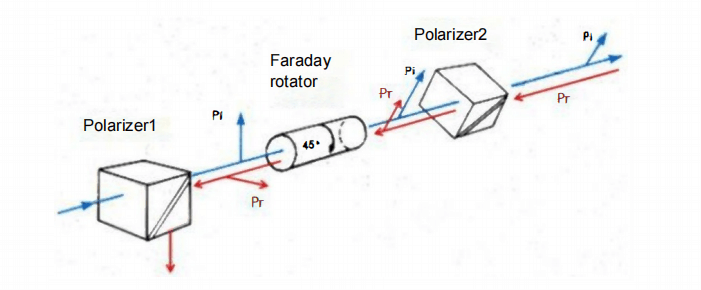

    Polarization-Dependent Isolator Beam Selection:



    ● Forward Transmission Polarization State Beam (Pi)



    ● Reverse Transmission Polarization State Beam (Pr)








    A04 (Aperture ≤ 5mm) package

    Polarization-Dependent Isolator Model：HPISO-t-p-a-λ-w-h

    Type(t)

    Power(p)

    Aperture(a)

    Wavelength(λ)

    Waveplate(w)

    Package(h)

    FS (Typical)

    DS (Dual-stage)

    AB (Adjustable bandwidth)

    1W

    5W

    30W

    50 W

    100 W


    500W
    ...

    2 mm

    3 mm

    4 mm

    5 mm

    8 mm

    10 mm

    12 mm

    15 mm

    25 mm

    45 mm

    ...

    550-880nm*

    355 nm

    405 nm

    532 nm

    633 nm

    780 nm

    850 nm

    980 nm

    1030 nm

    C
    (Contain)

    N
    (Not Contain)

    A03*

    A04

    A06

    A08

    A23

    A31

    ...

    1064 nm

    1319 nm

    1550 nm

    2000 nm

    4500 nm

    ...


    *Only applicable to the adjustable bandwidth type

    **500 W is only applicable under the 1030/1064 nm wavelength condition.



    Typical indicator reference

    Aperture Size

    Damage Threshold

    Power Handling

    Transmission

    Peak Isolation

    2~15 mm

    3J/cm² at 10ns @(532~980)nm

    50 W

    >93%*, ＞90%**

    >33 dB*, >45 dB**

    2~10 mm

    10J/cm² at 10ns @(1319~2000)nm

    50 W

    >93%

    >33 dB

    15~25 mm

    10J/cm² at 10ns @1030/1064nm

    500W

    >93%

    >33 dB

    The operating temperature range for the product is 10°C to 30°C.

    * Only applicable to conventional isolators.

    **Only applicable to dual-stage isolators.



    Packaging Dimension Diagram (mm)

    A04 (Aperture≤5mm)



    A46 (Compact, 1064nm)




    Polarization-Insensitive Model：HPISO-t-p-a-λ-w-h

    Type(t)

    Power(p)

    Aperture(a)

    Wavelength(λ)

    Wavelength(w)

    Waveplate(h)

    PI

    (Polarization-Insensitive)

    50 W

    100 W

    500 W

    1000 W

    ...

    1.5 mm

    5 mm

    8 mm

    ...

    980 nm

    1030 nm

    1064 nm

    ...

    C
    (Contain)

    N
    (Not Contain)

    A16 A29 A38 A41

    ...





    Typical Specifications Reference

    Aperture

    Damage Threshold

    Power Handling

    Transmission

    Peak Isolation

    1.5 mm

    10J/cm² at 10ns @(980~1064)nm

    50 W

    >93%

    >33 dB

    5 mm

    10J/cm² at 10ns @(980~1064)nm

    100 W

    >93%

    >33 dB

    8 mm

    10J/cm² at 10ns @(980~1064)nm

    1000 W

    >93%

    >33 dB

    * The operating temperature range for the product is 10℃-30℃







    Packaging Dimension Diagram (mm)

    A16 (Aperture≤5mm)




    A41(Aperture≤8，water-cool)
