473nm Polarization-Maintaining Fiber Polarizer (In-line Polarizer)

Product features：High extinction ratio、 Low insertion loss、 High return loss、 High reliability

Part Number：--

Application area：Communication system、 Testing equipment、 Fiber Optic Sensor、 Research

Add to Cart Consult Favorite

Related Products

Main parameters

Core parameters

Dimension Drawing

General Parameters

General parameters

PARAMETER	UNIT	Values
Central wavelength	nm	473
Working wavelength range	nm	± 10
Typ. Insertion loss at 23°C (Proper S OP)	dB	2
Max. Insertion Loss at 23°C (Proper SOP)	dB	2.4
Min. Return Loss	dB	50
Typ. Extinction ratio at 23°C	dB	25
Min. Extinction Ratio (Input to Output) at 23°C	dB	twenty three
Min. Extinction Ratio (Output to Input) at 23°C	dB	20
Min. PDL at 23°C (applicable only to SM fibers at all ports)	dB	20
Max. optical power (CW, Proper SOP)	mW	10, 50 or specify
Max. tensile load	N	5
Operating temperature	°C	-5 to +50
Storage temperature	°C	-40 to + 85

*The above specifications apply to devices without connectors.

*For devices with connectors, IL will be 1.5dB higher, RL will be 5dB lower, and ER will be 2dB lower.

*PM fiber and connector keys are aligned with the slow axis.

*The material must be RoHS compliant.

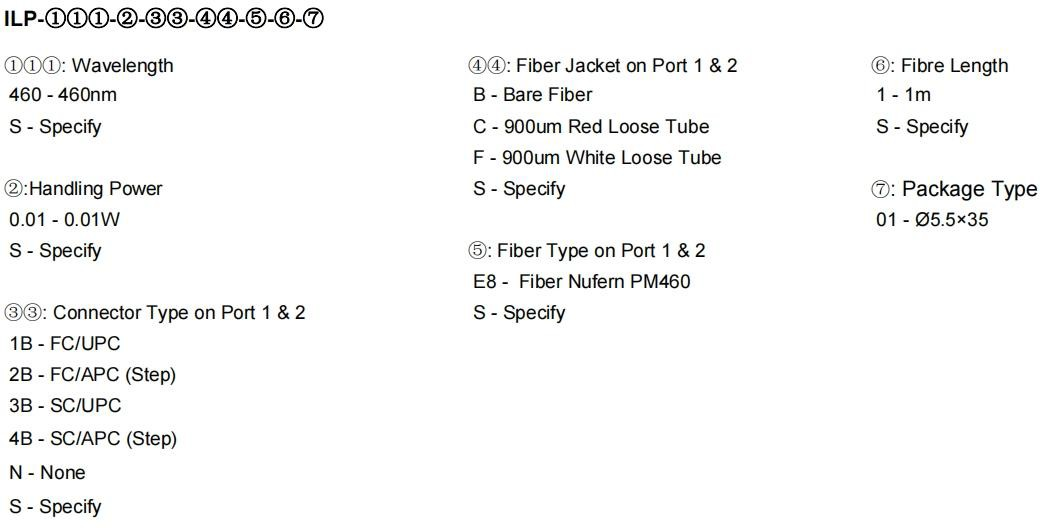

Ordering Info

Optional Configurations
