800-1700nm InGaAs Three-Channel Photodetector 40MHz

800-1700nm InGaAs Three-Channel Photodetector 40MHz

40MHz Three-Channel Low Noise Photodetector

Product features：Low noise、 High bandwidth、 High gain、 Compact structure

Part Number：--

Application area：Distributed optical fiber sensing (ψ-OTDR/ C-OTDR, DAS/DVS, BOTDA/BOTDR)、 Laser wind radar、 Optical coherence tomography、 Spectral measurement / ns-level optical pulse detection、 Other scientific research applications

Add to Cart Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Dimension Drawing

General Parameters

PN#	PD-40M-3-A	Unit
PN#	PD-40M-3-A
Detector Type	InGaAs
Wavelength	800~ 1700	nm
Bandwidth	40M	Hz
Detector Responsivity	0.95@ 1550nm	A/W
Transimpedance Gain	20K	V/A
Saturation Input Optical Power	210	uW
NEP	5	pW/Sqrt( Hz)
Output Impedance	50	Ω
Output Coupling	DC
Supply Voltage	5	V
Supply Current	0.5 (max)	A
Optical Input	FC/APC
RF Output	SMA
Dimensions	808025	mm
Note	Three optical input channels, three RF voltage output channels

User Instructions

1. The module operates with a supply voltage of 5V, with a maximum supply current of 0.7A.

2. "Input" refers to the optical input interface; "RF" refers to the RF output interface.

3. Before connecting to the input, ensure that the end-face is clean to prevent dirt or contamination from affecting the measurement results.

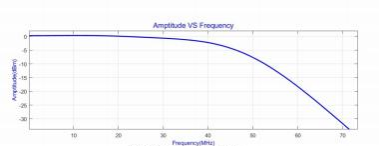

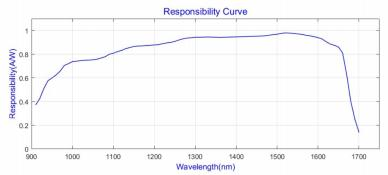

Test Results
