    • C-Band Single Mode MEMS Attenuator

    Multimode/single mode variable attenuator Based on Idealphotonics' unique optical design and processing capabilities, our VOA has the characteristics of being able to quickly adjust optical attenuation, small size, low insertion loss, low polarization-related loss, high mode-related stability and high reliability. It is mainly used in multimode transmission networks, power balancing, product testing, and related instruments and equipment. Insertion loss ≤1.0 dB Fiber connector FC/APC connector

    产品特点Wide operating wavelength range & wide temperature range、 Low insertion loss、 Low polarization-dependent loss and polarization mode dispersion、 High reliability and stability、 Telcordia GR-1221 & GR-1209

    产品货号A80152210

    应用领域Multimode product testing、 Multimode transmission network、 Power balancing、 Receiver protection、 Related instruments and equipment

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameters

    Parameter

    Unit

    Single mode

    Multi-mode

    Attenuation type

    nm

    Bright or Dark

    Wavelength

    nm

    O/C/L band or1250-1650

    850±30nm 1310±30nm

    Attenuation range

    dB

    ≥40/45

    ≥30

    Insertion loss（IL）

    dB

    ≤0.6

    ≤0.6

    Return loss

    dB

    ≥50

    ≥30

    Repeatability

    dB

    ≤0.03dB@ATT≤20dB

    PDL1

    dB

    ≤0.2@10dB

    PDL2

    dB

    ≤0.5@20dB

    Operating temperature

    ℃

    -5~70

    Storage temperature

    ℃

    -40~85

    Switching speed

    ms

    ≤3

    Lifespan

    Cycle

    ≥1x109

    Maximum optical power

    mW

    ≤500

    Drive voltage

    V

    0~7V

    0~9V

    Fiber and sleeve type

    Made according to customer requirements

    Fiber length

    Made according to customer requirements

    Connector type

    Made according to customer requirements



    Item

    Optical performance


    Specification

    Note

    1

    Attenuator type

    Bright or Dark

    Bright

    Bright:Minimum insertion lloss@0V





    Dark:Maximum attenuation@0V

    2

    Operating wavelength

    nm

    Multimode：850±30nm1310±30nm

    Single-mode：O/C/L band or 1250-1650

    3

    Attenuation range

    Min

    dB

    Multimode：≥30； Single-mode：≥40

    Operating voltage：≤±9V，Square wave

    4

    Insertion loss

    Max

    dB

    1


    5

    Repeatability@20dB

    Max

    dB

    0.1


    6

    Mode-dependent loss @20dB20Minute

    Max

    dB

    0.2


    7

    Return loss

    Min

    dB

    30


    8

    Response time

    Max

    ms

    3


    9

    Maximum optical power

    Max

    mw

    500


    Electrical performance

    Specification

    1

    Drive Voltage（AC）

    Max

    V

    Single mode：0-7V，Multimode：0-9V

    2

    Power consumption

    Max

    mw

    10

    Mechanical performance

    Specification

    1

    Fiber type



    50/125um、62.5/125um，SMF-28E


    Lifespan

    Min

    Cycle

    ≥1x109

    2

    Fiber Length

    Min

    m

    1





    Notes:

    *. All indicators are without connectors and are only valid at the above wavelengths, polarization states and temperatures.

    **. Indicators are subject to change without prior notice.




    Recommended applications

    A 5:95 beam splitter is connected to the back end of the multimode VOA, where the 5% port output is connected to the multimode PD, which is the monitoring end, and the 95% port is directly output, which is the output end.

    Data is reversed through the monitoring end to control the output voltage so that the output end reaches the set attenuation value.

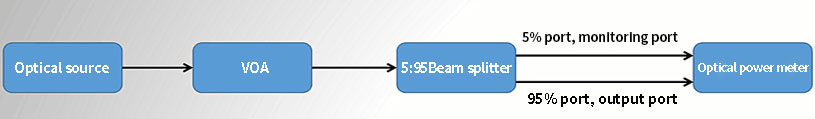

    Test block diagram

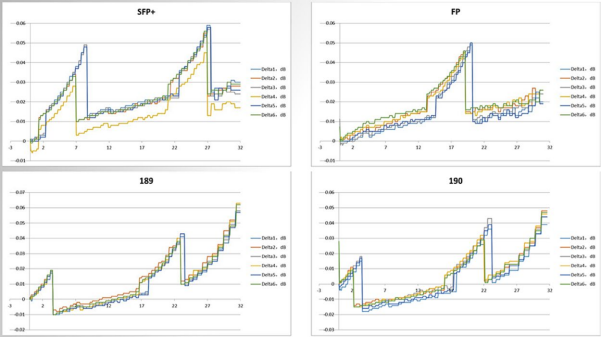

    Test Data---Attenuation accuracy




    1. The horizontal axis is the attenuation value

    2. The vertical axis is: the difference between the attenuation value estimated by the monitoring end and the actual attenuation value of the output end.




    Recommended power supply conditions

    1. Continuous square wave drive, frequency: 5KHZ, waveform: square wave

    2. Peak-to-peak value: 0-35V, duty cycle: 50%




    Ordering Information

    MEMS-VOA- W□□□□ -☆-△-XX

    W□□□□：Wavelength

    850:850nm

    1310:1310nm

    1550:1550nm

    1570:1570nm

    1650:1650nm

    O/C/L: O/C/L Band

    ☆ ：Pigtail Length

    05:0.5m

    1：1m

    10:10m

    △：Loose Tube

    B:Bare Fiber

    9:900um Loose Tube

    20:2mm Loose Tube

    30: 2mm Loose Tube

    XX: Fiber and Connector Type

    S5A=MM50/125+ FC/APC

    S5P= MM50/125+ FC/PC

    S6A=MM62.5/125+ FC/APC

    S6P= MM62.5/125+ FC/PC

    SMA=SM Fiber+FC/APC

    SMP=SM Fiber+FC/PC
