    • 1064nm Yb-doped polarization-maintaining fiber amplifier 2W

    The desktop laser-doped fiber amplifier (YDFA) incorporates a high-power, high-performance multi-mode semiconductor pump source, a highly stable wavelength division multiplexer (combiner), and a Yb-doped fiber with a high gain coefficient. The YDFA uses an integrated all-fiber system with a fully polarization-maintaining design, where the power supply, control system, and optical components are highly integrated, providing users with an easy-to-use turnkey laser system.

    产品特点Wide wavelength range、 Low noise、 High power output

    产品货号B80021111

    应用领域Fiber optic communication、 Fiber optic sensing、 Fiber optic laser

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameters

    Optical Parameters

    Unit

    Typ.

    Note

    Wavelength Range

    nm

    1030~1100


    Input Power

    dBm

    0-10

    Customizable

    Saturation Output Power

    dBm

    17/20/23/25/26/27/30/33


    Noise Figure

    dB

    5.0


    Polarization-Related Gain

    dB

    <0.3


    Input/Output Isolation

    dB

    >35


    Pigtail Type

    -

    HI1060SM fiber or PM980 PM fiber


    Pigtail Connector Type


    FC/APC


    Operating Mode


    Automatic Current Control (ACC) / Automatic Power Control (APC)

    *See Note 1

    Electrical and Environmental Parameters

    Benchtop

    Module


    Control Mode

    Keypad

    RS232 Serial Communication


    Communication Interface

    *Optional

    DB9 Female


    Power Supply

    100-240VAC,<30W

    5v DC,<15W


    Dimensions

    260(W)×280(D)×120(H)mm

    125(W)×150(D)×20(H)mm


    Operating Temperature

    -5~+55°C


    Operating Humidity

    0-70%


    Ordering Information / PN#


    YDFA

    Saturation Output Power (dBm)

    Fiber Type

    Package Type


    17/20/23/25/26/27/30/33

    SM=HI1060SM fiber PM= PM 980PM fiber

    M=Module, B=Benchtop





    Test Result

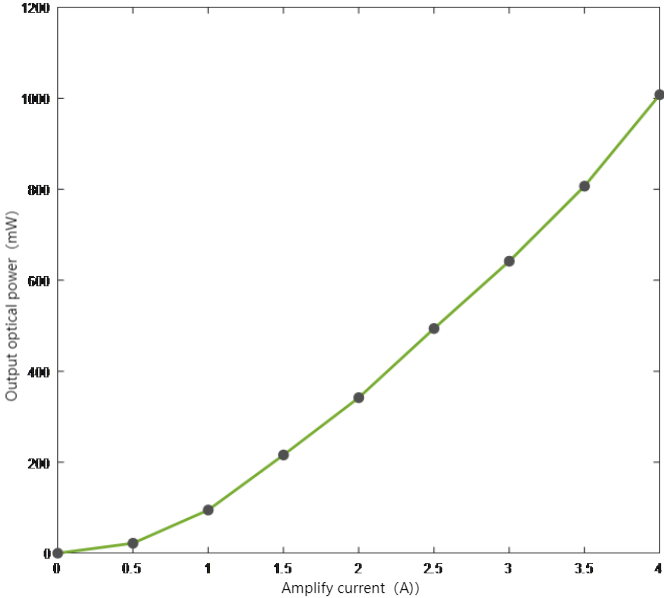

    1. Amplified Optical Power vs. Current Graph (Seed Power = 1mW):

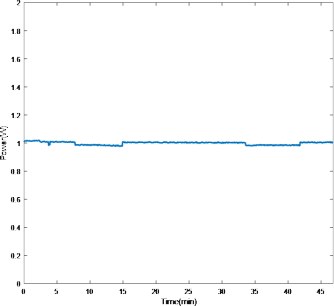

    2. Stability test of the amplified power at 1064 nm with a 4A current (seed power = 1mW):




    3. Spectral diagram before and after amplification：


    Before



     After
