    • InGaAs avalanche photodiode detector APD-500M-A

    The avalanche unit detection module integrates a low-noise APD detector, low-noise broadband transimpedance amplifier, ultra-low noise isolated power supply, high-voltage power supply, and APD temperature compensation. The isolated power supply ensures that the output signal is not affected by external power supply interference. APD temperature compensation improves the stability of the detection module. The avalanche photodetector features high gain, high sensitivity, high bandwidth, and low noise.

    产品特点Low noise、 High gain、 Built-in high-voltage power supply、 APD temperature compensation、 Compact structure、 Built-in low-noise isolated power supply

    产品货号E80040272

    应用领域Fiber sensing、 Fiber optic communication、 Laser ranging、 Spectral measurement、 Nanosecond-level optical pulse detection

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • General parameters

    PN#

    APD-100M-A

    APD-200M-A

    APD-300M-A

    APD-400M-A

    APD-500M-A

    APD-600M-A

    APD-800M-A

    APD-1G-A

    APD- 1.2G-A

    APD- 1.5G-A

    APD-2G-A

    APD- 2.5G-A

    APD- 5G-A

    Unit

    Detector type

    InGaAs


    Wavelength

    800~1700

    nm

    Bandwidth

    100M

    200M

    300M

    400M

    500M

    600M

    800M

    1G

    1.2G

    1.5G

    2G

    2.5G

    5G

    Hz

    Responsivity

    9

    9

    9

    9

    9

    9

    9

    9

    9

    9

    9

    9

    9

    V/W

    Transimpedance gain

    300K

    300K

    300K

    100K

    50K

    50K

    300K

    300K

    300K

    200K

    150K

    150K

    30K

    V/W

    Output impedance

    50

    50

    50

    50

    50

    50

    50

    50

    50

    50

    50

    50

    50

    Ω

    Saturation power

    13

    13

    13

    39

    78

    78

    13

    13

    13

    20

    26

    26

    78

    uW

    NEP

    0.46

    0.46

    0.46

    0.46

    0.46

    0.46

    0.46

    0.46

    0.46

    0.46

    0.46

    0.46

    0.46

    pW/√(Hz)

    Output coupling method

    DC/AC

    DC/AC

    DC/AC

    DC/AC

    DC

    DC

    AC

    AC

    AC

    AC

    AC

    AC

    AC


    Supply voltage

    5

    5

    5

    5

    5

    5

    12

    12

    12

    12

    12

    12

    12

    V

    Supply current

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    A

    Optical input

    FC/APC（Free space optical input optional）

    FC/APC


    RF output

    SMA

    SMA


    Dimensions

    65*50*20

    65*50*25

    80*90*25

    mm

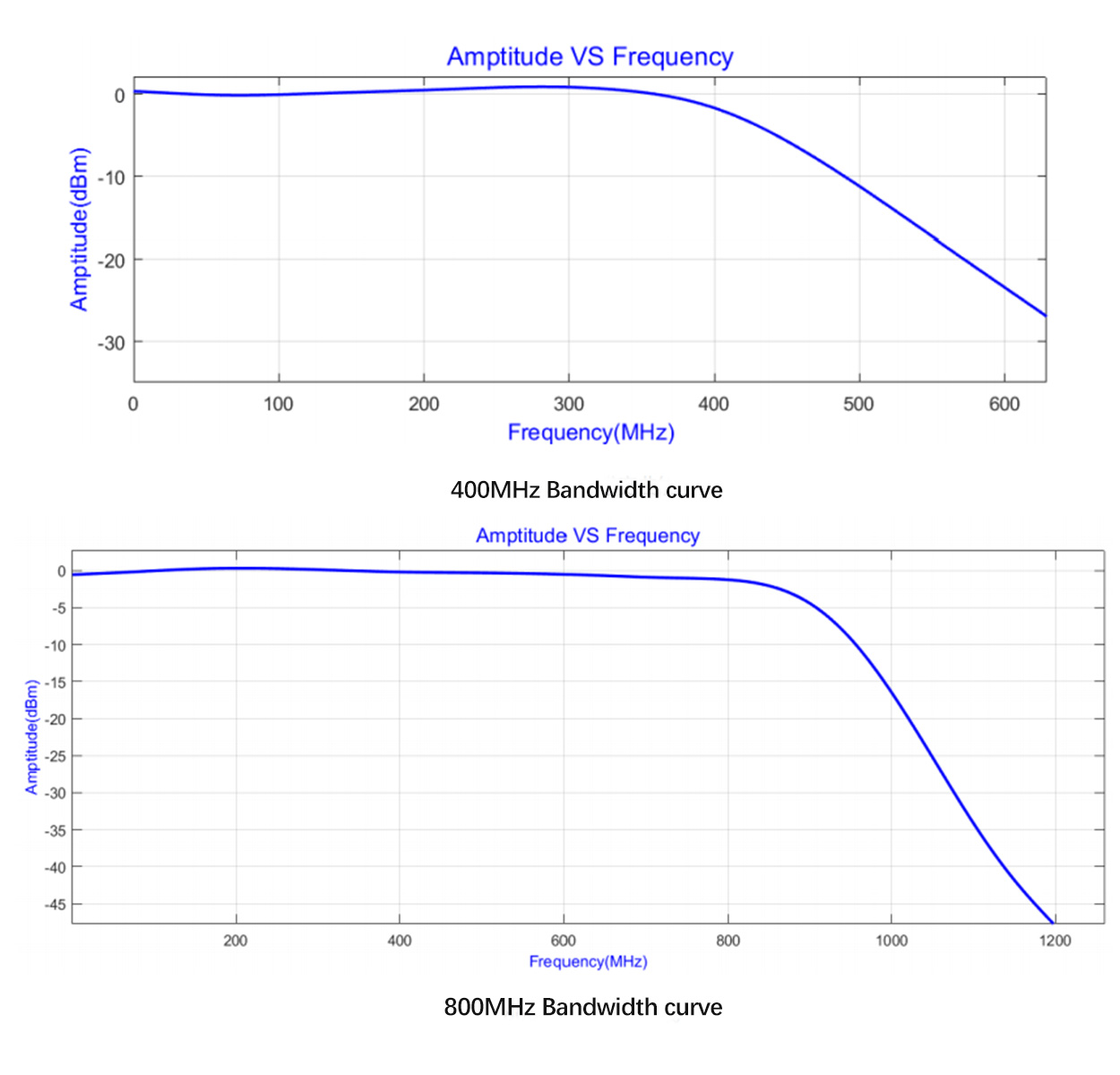

    Test result
