    • Ultra-wide mid-infrared beam quality analyzer (without M2 test, active area: 10.8×8.7mm

    IdealPhotonics' infrared beam quality analyzer can detect light spots and analyze parameters in the 1.2-15μm range. It offers spatial analysis accuracy down to the 10μm level, featuring an ultra-wide sensitivity range, a large target area, ultra-high resolution, and multi-functional software capabilities

    产品特点Ultra-wide sensitivity range、 Large target area、 Ultra-high resolution

    产品货号E80060101

    应用领域Infrared Imaging、 Infrared Laser M² Testing、 Infrared Optical System Characterization

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • General Parameters

    Optical Characteristics

    Unit

    Typical Value

    Light Sensitive Surface


    Composite thin-film VOx micro-measuring thermal radiation focal plane

    Wavelength Range

    μm

    1.2μm-15μm

    Resolution


    640× 512

    640× 512

    1280× 1024

    Light Sensitive Surface Size

    mm

    10.8 ×8.7mm

    7.6 ×6.1mm

    15.3 × 12.2mm

    Pixel Size

    μm

    17μm

    12μm

    12μm

    Min. Detectable Light Intensity

    μW/cm2

    100μW/cm2

    Saturation Light Intensity

    mW/cm2

    200mW/cm2

    Damage Threshold

    mW/cm2

    250mW/cm2

    Min. Detectable Spot Size


    10×pixel size

    Sampling Resolution

    bit

    14bit

    Signal-to-Noise Ratio (SNR)


    ≥1000:1

    Laser Mode Measurement


    Continuous (CW) or Repetition rate ≥1kHz

    Output Frame Rate

    FPS

    25FPS

    Communication Interface


    TYPE-C/USB3.0

    Max. Laser Power

    mW

    300mW (with attenuation filter)/ 2mW (without attenuation filter)

    Measurement Software


    DoBEAM2024

    Special Algorithms


    Infrared interference fringe removal algorithm, adaptive background noise correction algorithm

    Expansion Components


    M² measurement module, including rail and lens system, conforms to ISO 11146 standard






    Physical Parameters

    Unit

    Typical Value

    Operating Temperature

    ℃

    10~40℃

    Storage Temperature

    ℃

    0~50℃

    Power Supply Interface


    TYPE-C (shared with communication power, no separate power required)

    Support Rod Interface


    M6×4

    Optical Interface


    SM1× 1

    Dimensions

    mm

    64.75mm×64.75mm×59.40mm

    Light Sensitive Surface Depth

    mm

    ~15mm

    Detector Net Weight

    kg

    0.3kg



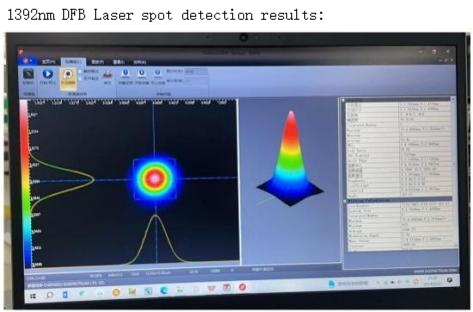

    Quick Operation Guide:

    Connect the Detector: Plug in the USB cable and USB key. The system will recognize the detector in about 10 seconds.

    Launch Software: Double-click the DoBEAM2024 icon (run as administrator if needed).

    Initialize the Detector:

    Click "Detector" > "Initialize", wait 8 seconds for the screen to load.

    Automatic Exposure Adjustment:

    The software adjusts exposure automatically. Do not exceed 2mW without attenuation filters. The default password is "0000".

    Stabilize the Detector:

    Wait 60 seconds for stabilization. If there’s background interference, refresh manually or use the "Collect Background" and "Use Background" functions.

    Storage & Playback:

    Click "Detector" > "Storage Settings" to choose storage options. Click "Start Storage" to save data. Use "Playback" to open saved files.

    Save PDF Report:

    Click "Analysis" > "Save Result" to generate a PDF report.





    Attachment 1: Optional Configuration Table

    Beam Quality Analyzer


    Product Name

    Spectrum

    Photodetector Size

    Component

    Reserved Optional Config

    BA: "Beam Quality Analyzer"

    B: Superwide Spectrum

    1 ：10.8 ×8.7mm

    G: With M2 Rail and Lens System




    2 ：7.6 ×6.1mm

    W: Without




    3 ：15.3 × 12.2mm






    Attachment 2: Model and Part Number Comparison Table

    Model

    Specifications



    BAB1G

    Superwide Mid-Infrared Beam Quality Analyzer (with M2 testing, photodetector size: 10.8 × 8.7mm), Max. Optical Power: 300mW (with attenuator), Wavelength Range: 1.2-15um



    BAB1W

    Superwide Mid-Infrared Beam Quality Analyzer (without M2 testing, photodetector size: 10.8 × 8.7mm), Max. Optical Power: 300mW (with attenuator), Wavelength Range: 1.2-15um



    BAB2G

    Superwide Mid-Infrared Beam Quality Analyzer (with M2 testing, photodetector size: 7.6 × 6.1mm), Max. Optical Power: 300mW (with attenuator), Wavelength Range: 1.2-15um



    BAB2W

    Superwide Mid-Infrared Beam Quality Analyzer (without M2 testing, photodetector size: 7.6 × 6.1mm), Max. Optical Power: 300mW (with attenuator), Wavelength Range: 1.2-15um



    BAB3G

    Superwide Mid-Infrared Beam Quality Analyzer (with M2 testing, photodetector size: 15.3 × 12.2mm), Max. Optical Power: 300mW (with attenuator), Wavelength Range: 1.2-15um



    BAB3W

    Superwide Mid-Infrared Beam Quality Analyzer (without M2 testing, photodetector size: 15.3 × 12.2mm), Max. Optical Power: 300mW (with attenuator), Wavelength Range: 1.2-15um
