首页 Semiconductor Diodes DFB Laser Diode 1000-1200nm DFB laser diode DFB (distributed feedback) semiconductor laser 1028/1036/1060/1064/1068/1084nm 30mW 1050nm DFB Laser Diode 50mW (Without Isolator)

    • 1050nm DFB Laser Diode 50mW (Without Isolator)

    1050nm 14PIN Butterfly Package DFB Laser, with integrated TEC, lens, thermistor, and PD in a 14PIN butterfly package. The hermetically sealed design meets telecom-grade operating requirements, featuring narrow linewidth and high power (50mW). It supports PM980 or HI1060 fiber output, and also offers custom pin definitions as requested by the customer.

    产品特点14PIN butterfly sealed package、 Custom wavelengths from 1018-1200nm with integrated TEC and thermistor、 DFB chip, narrow linewidth、 PM980/HI1060 fiber pigtail options available

    产品货号无

    应用领域Ultrafast laser SHG seed light

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Optical-Electrical Characteristics (25°C)

    Optical Electrical Characteristics (TCHIP = 15 - 35 °C, TCASE = 25 °C, Iop = 150 mA)

    Parameter

    Min

    Typ.

    Max

    Unit

    Center Wavelength

    1048

    1050

    1052

    nm

    SMSR

    40

    50

    -

    dB

    Linewidth

    -

    5

    -

    MHz

    Optical Power (inside fiber)

    30

    50

    -

    mW

    Drive Voltage

    -

    2

    2.5

    V

    Drive Current

    -

    150

    250

    mA

    Mode Hop-Free Current Range

    20

    50

    -

    mA

    Threshold Current

    -

    35

    -

    mA

    Slope Efficiency

    -

    0.25

    -

    W/A

    Current Wavelength Coefficient

    -

    0.002

    -

    nm/mA

    Temperature Wavelength Coefficient

    -

    0.08

    -

    nm/°C

    MPD Response Rate

    -

    0.5

    -

    A/W

    Extinction Ratio

    -

    16

    -

    dB





    Optical Fiber Characteristics：

    Fiber Type

    PM980-XP

    Mode Field Diametera

    6.6 ± 0.5 µm @ 980 nm

    Numerical Aperture

    0.10

    Fiber Length

    1.5 m

    Connector

    FC/APC (2.0 mm Narrow Key)

    Loose Tube

    Ø900 µm




    Limiting Parameters

    Parameter

    Typical Value

    Unit

    Optical Fiber Power

    50

    mW

    Operating Current

    400

    mA

    LD Reverse Voltage

    2

    V

    PD Reverse Voltage

    15

    V

    Case Operating Temperature

    0 to 50

    °C

    Storage Temperature

    -10 to 65

    °C

    TEC Current

    2.5

    A

    TEC Voltage

    4.0

    V

    Thermistor Resistance

    10

    kOhms

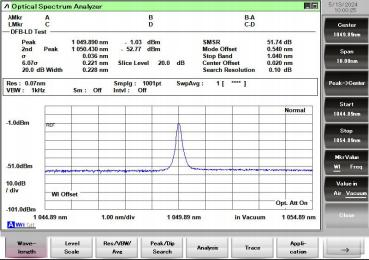

    Spectral Analysis

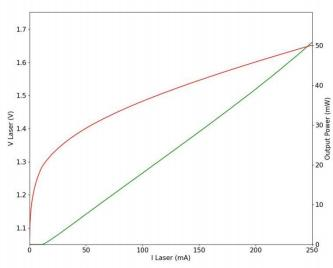

    L-I-V Curve

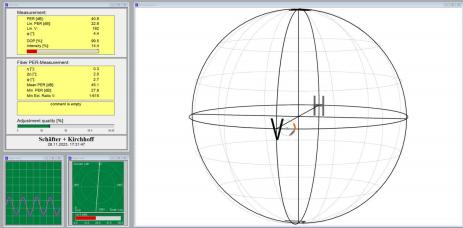

    Extinction Ratio Test (Polarization Maintaining Version)

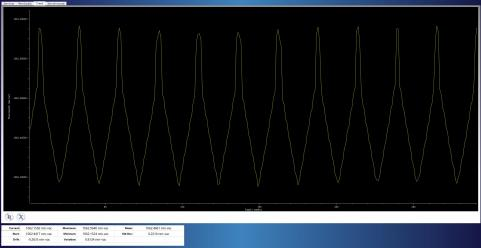

    Mode hope tuning Range





    Pin Definition: Standard A





    Standard B



    Current-illumination characteristic (TCHIP = 15 - 35 °C, TCASE = 25 °C, Iop = 150 mA)

    Parameter

    Min

    Typ.

    Max

    Unit

    Central wavelength

    1026

    1028

    1030

    nm

    1034

    1036

    1038

    1058

    1060

    1062

    1062

    1064

    1066

    1066

    1068

    1070

    1082

    1084

    1086

    SMSR

    40

    50

    -

    dB

    Linewidth

    -

    5

    -

    MHz

    Optical power(inside the fiber)

    30

    50

    -

    mW

    Drive voltage

    -

    2

    2.5

    V

    Drive current

    -

    150

    250

    mA

    Mode-hop free range

    20

    50

    -

    mA

    Threshold current

    -

    35

    -

    mA

    Slope efficiency

    -

    0.25

    -

    W/A

    Current wavelength coefficient

    -

    0.002

    -

    nm/mA

    Temperature wavelength coefficient

    -

    0.08

    -

    nm/°C

    MPD Responsivity

    -

    0.5

    -

    A/W

    Extinctive ratio

    -

    16

    -

    dB




    Ordering Information:

    DFB- □□□□-☆-A8▽- XX

    □□□□: Wavelength

    1018: 1018nm

    1030: 1030nm

    1053: 1053nm

    1064: 1064nm

    1084: 1084nm

    *****

    1120: 1120nm

    ☆ : Pin Definition A:

    Telecom A

    B: Pump B

    ▽ : Wavelength Tolerance 1:

    ±1nm

    2: ±2nm

    XX: Fiber and Connector Type

    SA=HI1060+ FC/APC

    SP=HI1060+ FC/PC

    PA=PM980 Fiber+ FC/APC

    PP=PM980 Fiber+ FC/PC

    Our default packaging does not include an isolator. If the customer requires an isolator, please add "-ISO" at the end of the model number. The output power with the isolator is guaranteed to be 30mW+.

    Eg:

    PN#DFB-1050-B-A81-PA-ISO
