2000nm 1x2 Three-Port Polarization-Insensitive Circulator (Max Optical Power 1W)

2000nm 1x2 Three-Port Polarization-Insensitive Circulator (Max Optical Power 1W)

2000nm Three-Port Polarization Insensitive Optical Circulator (High Power)

Product features：

Part Number：--

Application area：

Add to Cart Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Dimension Drawing

General Parameters

Parameter	Unit	Values
Central Wavelength	nm	2000
Operating Wavelength Range	nm	±20
Max. Insertion Loss (23℃, 1→2, 2→3, λc)	dB	1.5
Min. Isolation (23℃, 3→2, 2→1, λc)	dB	20
Min. Return Loss	dB	50
Min. Crosstalk	dB	50
Max. Polarization Dependent Loss	dB	0.2
Max. Polarization Mode Dispersion	ps	0. 15
Max. Optical Power (CW, total)	W	1, 3, 5 or Specify
Max. Tensile Load	N	5
Fiber Type	-	SMF-28e Fiber
Operating Temperature	℃	-5 to +70
Storage Temperature	℃	-40 to +85

* The above specifications apply to devices without connectors.

*For devices with connectors, the insertion loss (IL) will be higher by 0.3dB, the return loss (RL) will be lower by 5dB, and the optical power will be limited to 1000mW (CW).

*The material must comply with RoHS standards.

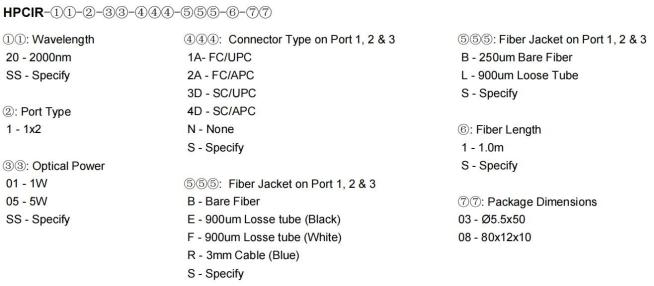

Model Description


Optional Configurations

Downloads

No resources available
