638nm Single Wavelength Zoom Laser Collimating Lens 50x

When the zoom magnification requirement varies significantly, the design uses a curved groove form, with multiple lenses linked together to achieve continuous changes while maintaining beam quality. By using different fiber inputs, good zoom effects can be achieved. The output beam is uniform with clear boundaries. This design is mainly applied in laser dazzling and optical tracking systems.

产品特点Standard fiber optic interface input, collimated spatial beam output、 Three main wavelength options: 525nm, 450nm, 638nm、 Achieves diffraction-limited performance when used with compatible connectors、 Metal oxide housing、 Reserved motor installation interface for automatic focusing

产品货号A80150630

应用领域

产品单价联系客服询价

到货日期请咨询客服获得货期

产品库存请咨询客服

Sherry

电话：16628709332

邮箱：moli@microphotons.com

加入询价单在线咨询

相关产品

主要参数
可选配置表
资料下载

主要参数

核心参数

尺寸图

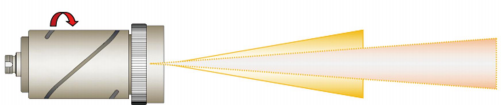

Diagram

Parameter

Single-Wavelength Zoom Laser Collimating Lens
Zoom Magnification	Usable Working Distance	Divergence Angle Range	Max Power	Input Fiber	Size	Connector Type	Transmission Rate
20x	30-600m	0.05~1.0°	30w	62.5/125 200/220 400/440	Φ50×150mm	FC/PC	85%
50x	20~1000m	0.05~2.5°	50w	62.5/125 200/220 400/440	Φ50×220mm	FC/PC	85%
Three-Wavelength Zoom Laser Collimating Lens
Zoom Magnification	Usable Working Distance	Divergence Angle Range	Max Power	Input Fiber MFD	Size	Connector Type	Transmission Rate
50x	20-1000m	0.05~2.5°	20w	10.4um	Φ55×260mm	FC/PC	80%
