• PM Fiber Collimator 1550nm (Working Distance 100mm)

    The polarization maintaining fiber collimator is precisely positioned and packaged with a polarization maintaining fiber pigtail and a focusing lens. It can convert the light output from the fiber into a parallel beam (Gaussian beam), or focus and couple external parallel light into the fiber. It can be used individually to achieve a specified spot size at the required position, or in pairs with optical elements such as filters and isolators placed between the pair of probes to meet the customer's application requirements. In interferometric fiber sensors based on optical coherence detection, the use of polarization maintaining fibers ensures that the linear polarization direction remains unchanged, improving the coherence signal-to-noise ratio, thereby enabling high-precision measurement of physical quantities.

    产品特点

    产品货号A80150571

    应用领域

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话:16628709332

    邮箱:moli@microphotons.com

    主要参数
  • 核心参数
  • 尺寸图

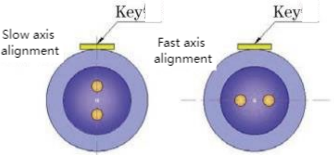

  • When making polarization maintaining device connectors, the direction of the cat's eye connection axis is perpendicular to the key slot direction, also known as slow axis alignment, and the opposite is fast axis alignment. As shown in the figure:


     Diagram










    General Parameter

    PM780 Polarization-Maintaining Fiber Collimator (Fixed Working Distance)

    Wavelength

    Bandwidth

    Working Distance

    Beam Waist Spot

    Beam Divergence

    Package Diameter

    Connector

    Excess Loss (no connector)

    Return Loss

    Mode Field Diameter

    780nm

    ±20nm

    100mm

    0.45mm

    2.2mrad

    3.2mm

    FC/APC

    ≤0.5dB

    ≥55dB

    5.9±0.3um

    780nm

    ±20nm

    300mm

    0.75mm

    1.3mrad

    3.2mm

    FC/APC

    ≤0.5dB

    ≥55dB

    PM980 Polarization-Maintaining Fiber Collimator (Fixed Working Distance)

    Wavelength

    Bandwidth

    Working Distance

    Beam Waist Spot

    Beam Divergence

    Package Diameter

    Connector

    Excess Loss (no connector)

    Return Loss

    Mode Field Diameter

    980nm

    ±20nm

    100mm

    0.50mm

    2.5mrad

    3.2mm

    FC/APC

    ≤0.5dB

    ≥55dB

    6.6±0.5um

    980nm

    ±20nm

    300mm

    0.96mm

    1.3mrad

    3.2mm

    FC/APC

    ≤0.5dB

    ≥55dB

    1064nm

    ±20nm

    100mm

    0.51mm

    2.7mrad

    3.2mm

    FC/APC

    ≤0.5dB

    ≥55dB

    1064nm

    ±20nm

    300mm

    0.90mm

    1.5mrad

    3.2mm

    FC/APC

    ≤0.5dB

    ≥55dB

    1064nm

    ±20nm

    500mm

    1.43mm

    0.95mrad

    4.0mm

    FC/APC

    ≤0.5dB

    ≥55dB

    PM1310 Polarization-Maintaining Fiber Collimator (Fixed/Adjustable Working Distance)

    Wavelength

    Bandwidth

    Working Distance

    Beam Waist Spot

    Beam Divergence

    Package Diameter

    Connector

    Excess Loss

    Pairing Loss

    Return Loss

    Mode Field Diameter

    1310nm

    ±20nm

    100mm

    0.4mm

    4.2mrad

    3.2mm

    FC/APC

    ≤0.5dB

    ≤0.7dB

    ≥55dB

    9.2±0.4um

    1310nm

    ±20nm

    300mm

    0.8mm

    2.1mrad

    3.2mm

    FC/APC

    ≤0.5dB

    ≤0.9dB

    ≥55dB

    1310nm

    ±20nm

    500mm

    1.2mm

    1.4mrad

    4.0mm

    FC/APC

    ≤0.5dB

    ≤1.1dB

    ≥55dB

    PM1550 Polarization-Maintaining Fiber Collimator (Fixed/Adjustable Working Distance)

    Wavelength

    Bandwidth

    Working Distance

    Beam Waist Spot

    Beam Divergence

    Package Diameter

    Connector

    Excess Loss

    Pairing Loss

    Return Loss

    Mode Field Diameter

    10±0.4um

    1550nm

    ±20nm

    100mm

    0.45mm

    4.4mrad

    3.2mm

    FC/APC

    ≤0.5dB

    ≤0.7dB

    ≥55dB

    1550nm

    ±20nm

    300mm

    0.86mm

    2.3mrad

    3.2mm

    FC/APC

    ≤0.5dB

    ≤0.9dB

    ≥55dB

    1550nm

    ±20nm

    500mm

    1.3mm

    1.5mrad

    4.0mm

    FC/APC

    ≤0.5dB

    ≤1.1dB

    ≥55dB

    Beam Waist Spot Diameter: The value is taken at the 1/e² point of the Gaussian beam, with the theoretical value calculated using single-mode fiber for each wavelength.

    Pairing Loss: Refers to the coupling loss between the two fiber collimators in free space.

    Packaging Material, Package Size, and Other Fiber Connector Types: Customizable.
