Narrow Linewidth Laser Linewidth Measurement SystemLinewidth Analyzer 1300-1700nm (Linewidth 2-5000KHz Input 0.2-20mW)

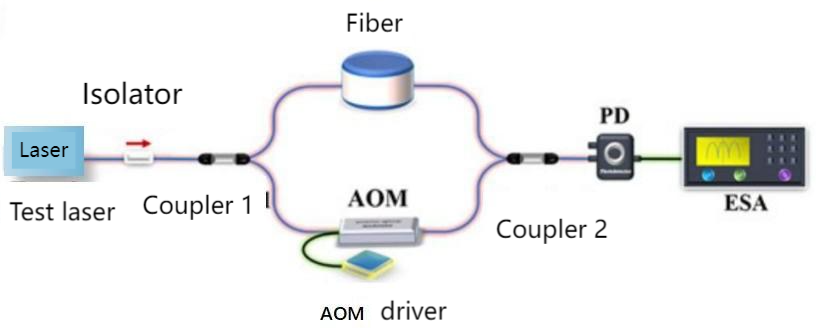

The Laser Linewidth Measurement System is a simple and accurate laser diode linewidth measurement system. The evaluation of laser linewidth is critical to the development, manufacturing and quality control of optical communication lasers. Combined with Keysight's signal analyzers and dedicated test sets, you can easily measure linewidth. Idealphotonics' narrow linewidth laser linewidth tester uses the delayed self-heterodyne beat frequency method to test the laser linewidth. When used with a 50km delayed optical fiber, it can measure lasers with a linewidth of 2kHz without the need to build a complex system.

产品特点Laser linewidth measurement down to 2kHz、 Wide wavelength range 1300-1700nm、 The interferometer and the optical receiver are in one box

产品货号E80100208

应用领域

产品单价联系客服询价

到货日期请咨询客服获得货期

产品库存请咨询客服

Sherry

电话：16628709332

邮箱：moli@microphotons.com

加入询价单在线咨询

相关产品

主要参数
可选配置表
资料下载

主要参数

核心参数

尺寸图

General parameters

Parameter	Unit	Min.	Typ.	Max.
Measurement Band	nm	1310		1700
Min. Measurable Line Width	kHz	2		5000
Optical input Power (can be increased to 500mW using adjustable attenuator)	dBm	-20		+10
Frequency Shift of the Interferometer (Electrical Signal Carrier Frequency)	MHz		150
Optical Delay Length	Km		50
Supply Voltage	V		220
Fiber Optic Interface	NA	FC/APC
RF Radio Frequency Interface	NA	BNC

Laser line width measurement device
