Fiber focusing lens (converger) 525nm FC/APC

首页 Fiber Accessories Fiber optic components Fiber collimator Fiber optic focusing mirror (concentrator) Fiber focusing lens (converger) 525nm FC/APC

Fiber focusing lens (converger) 525nm FC/APC

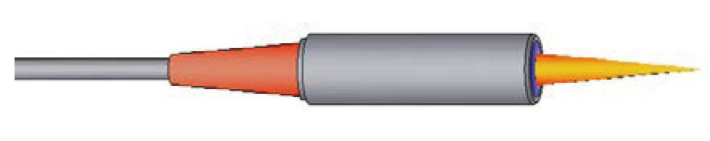

After passing through the focusing lens, the beam diameter reaches its minimum value at a specified position, with various wavelengths and distances available for selection. It can achieve precise surface detection, interference imaging, distance measurement, and more. This can be used in industrial automation, medical OCT, optical testing instruments, and other applications.

产品特点

产品货号A80152254

应用领域Industrial automation, medical OCT, optical testing instruments

产品单价联系客服询价

到货日期请咨询客服获得货期

产品库存请咨询客服

Sherry

电话：16628709332

邮箱：moli@microphotons.com

加入询价单在线咨询

相关产品

主要参数
可选配置表
资料下载

主要参数

核心参数

尺寸图

Technical Parameters

405nm Fiber Focusing Lens
Center Wavelength	Lens Coating Wavelength	Focus Point Waist Beam Diameter	Focus Point Distance	Structure Dimensions	Connector	Fiber Type	Transmission Rate
405nm	400-700nm	6um	5mm	3.5×10mm	FC/PC FC/APC SMA905	405HP	>90%
405nm	400-700nm	15um	10mm	3.5×10mm
405nm	400-700nm	24um	20mm	3.5×12mm
525nm Fiber Focusing Lens
Center Wavelength	Lens Coating Wavelength	Focus Point Waist Beam Diameter	Focus Point Distance	Structure Dimensions	Connector	Fiber Type	Transmission Rate
525nm	400-700nm	6um	5mm	3.5×10mm	FC/PC FC/APC SMA905	405HP	>90%
525nm	400-700nm	16um	10mm	3.5×10mm
525nm	400-700nm	26um	20mm	3.5×12mm
650nm Fiber Focusing Lens
Center Wavelength	Lens Coating Wavelength	Focus Point Waist Beam Diameter	Focus Point Distance	Structure Dimensions	Connector	Fiber Type	Transmission Rate
650nm	400-700nm	7um	5mm	3.5×10mm	FC/PC FC/APC SMA905	630HP	>90%
650nm	400-700nm	18um	10mm	3.5×10mm
650nm	400-700nm	29um	20mm	3.5×12mm
780nm Fiber Focusing Lens
Center Wavelength	Lens Coating Wavelength	Focus Point Waist Beam Diameter	Focus Point Distance	Structure Dimensions	Connector	Fiber Type	Transmission Rate
780nm	600-1100nm	9um	5mm	3.5×10mm	FC/PC FC/APC SMA905	780HP	>90%
780nm	600~1100nm	21um	10mm	3.5×10mm
780nm	600~1100nm	34um	20mm	3.5×12mm

1064nm Fiber Focusing Lens
Center Wavelength	Lens Coating Wavelength	Focus Point Waist Beam Diameter	Focus Point Distance	Structure Dimensions	Connector	Fiber Type	Transmission Rate
1064nm	900-1100nm	10um	5mm	3.5×10mm	FC/PC FC/APC SMA905	HI060	>90%
1064nm	900-1100nm	26um	10mm	3.5×10mm
1064nm	900-1100nm	42um	20mm	3.5×12mm
1310nm Fiber Focusing Lens
Center Wavelength	Lens Coating Wavelength	Focus Point Waist Beam Diameter	Focus Point Distance	Structure Dimensions	Connector	Fiber Type	Transmission Rate
1310nm	1250-1650nm	15um	5mm	3.5×10mm	FC/PC FC/APC SMA905	SMF-28e	>90%
1310nm	1250-1650nm	40um	10mm	3.5×10mm
1310nm	1250-1650nm	64um	20mm	3.5×12mm
1550nm Fiber Focusing Lens
Center Wavelength	Lens Coating Wavelength	Focus Point Waist Beam Diameter	Focus Point Distance	Structure Dimensions	Connector	Fiber Type	Transmission Rate
1550nm	1250-1650nm	l6um	5mm	3.5×10mm	FC/PC FC/APC SMA905	SMF-28c	>90%
1550nm	1250-1650nm	43mm	10mm	3.5×10mm
1550nm	1250-1650nm	69mm	20mm	3.5×12mm
