首页 Light Sources Optical Amplifier EDFA 1550nm Erbium doped Fiber Amplifier EDFA 1550nm 2W polarization-maintaining erbium-doped fiber amplifier (EDFA)

    • 1550nm 2W polarization-maintaining erbium-doped fiber amplifier (EDFA)

    Idealphotonics Optics Amplifier Module Selectable Bands: O-band, S-band, C-band, L-band. Amplifier Types: Booster Amplifier, Pre-Amplifier. Low Noise, Gain Range: 8dB ~ 40dB selectable. The EDFA-C-B-40-ISO Series is a C-band fiber amplifier operating in the 1530-1560nm wavelength range. It has a wide range of applications, including high-speed data signals, image signals, and femtosecond pulse amplification. The amplifier offers excellent gain flatness for WDM signals over the entire L-band. Maximum output, input/output fiber, control methods, and appearance can all be customized.

    产品特点Output Power: Greater than 5W、 Excellent Noise Figure、 Flat Gain Spectrum、 Low Cost、 Output Power and Pump Current Monitoring with ACC Mode Operation

    产品货号B80021115

    应用领域Optical Communication、 Testing & Measurement、 Scientific Applications

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Technical parameters

    Parameters

    Specifications

    Input Power

    0-10mW

    Maximum Output Optical Power (continuously adjustable)

    >1W

    Amplifier Operating Mode

    ACC

    Operating Wavelength Range

    1530-1560nm

    Test Wavelength

    1550nm

    Input/Output Isolation

    >30dB

    SMSR

    >40dB

    Storage Temperature Range

    -40℃-75℃

    Output Fiber Type

    PM1550nm

    Output Fiber Connector

    FC/APC

    Output Fiber Length

    >1m

    Voltage

    220/110AC 60/50Hz

    Dimensions

    260×320×120mm

    Weight

    2.5kg

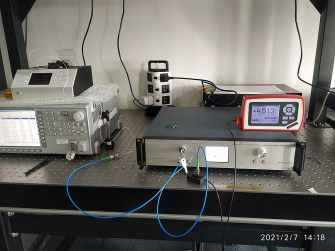

    Testing



    Testing Steps:

    Install the 1550nm DFB laser.

    Connect the fiber amplifier to the power supply and turn on the power switch.

    Use a flange to connect the laser output to the input of the fiber amplifier.

    Connect the fiber amplifier output to the power meter.

    Turn on the seed source, then turn on the key switch of the fiber amplifier, press the enter key, adjust the power using the knob, or coarse/fine tune using the select key, then press the enter key again to see the laser output and monitor the power or spectrum.

    When turning off, first turn off the amplifier, then turn off the seed source.

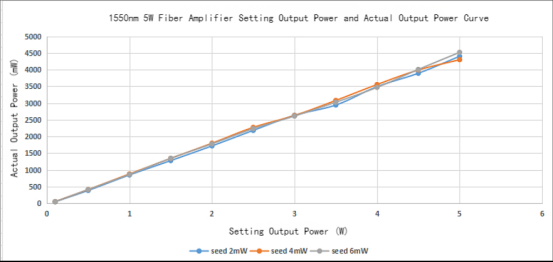

    Fiber amplifier power curve

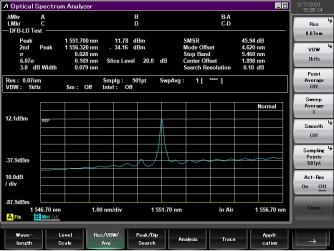

    Fiber amplifier output spectrum


     (Seed source 6mW, set power 0.1W)



    PN#/Ordering info

    EDFA-△-PG-OPP-ISO △:

    C=C band

    L=L Band

    C+L=C+L Band

    PG: Packaging Type

    B：Benchtop

    M：Module



    PG: Packaging Type
    B: Benchtop
    M: Module



    OPP (Output Power): Output power, in dBm. For example: 16-16 dBm, 23-23 dBm

    ISO: Internal Isolator Protection



    0 - None
    1 - Pump protection
