    • 1060nm ASE broadband light source 10mW

    The 1060nm band ASE broadband light source is based on ytterbium-doped fiber and semiconductor pump laser, with a spectrum covering 1030~1080nm, and can also be extended to 1010nm and 1100nm bands, with high output power and good flatness. It can be used for fiber device testing, FBG grating production, etc.

    产品特点Spectral flatness、 Adjustable power、 Highly stable output power

    产品货号B80010019

    应用领域Fiber optic sensing、 Medical imaging、 Fiber optic device testing

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameter

    Parameter

    Unit

    Typical

    Notes

    Spectral range

    nm

    1010、1030~1080、1015

    50nm@10dB

    Output optical power

    mW

    10/20/30/50/100


    Power adjustment range (optional function)

    dB

    10%~100%

    Spectral flatness remains unchanged during adjustment

    Spectral flatness

    dB

    10


    Output isolation

    dB

    >35


    Short-term stability (15 minutes)

    dB

    ≤  ±0.02

    Equivalence≤±0.5%

    Long-term stability (8 hours)

    dB

    ≤  ±0.05

    Equivalence≤±1.2%

    Polarization degree DOP

    dB

    ≤ 0.2


    Pigtail type

    -

    Hi 1060 SM fiber/PM980 PM fiber


    Pigtail connector type

    -

    FC/APC




    Electrical and environmental parameters

    Benchtop

    Module

    Control mode

    Button

    RS232 Serial communication

    Communication interface

    Optional

    DB9 Female

    Power supply

    100~240VAC, <30W

    5V DC, <15W

    Dimensions

    260(W)×280(D)×120(H)mm

    125(W)×150(D)×20(H)mm

    Operating temperature range

    -5~+35°C

    Operating humidity range

    0~70%

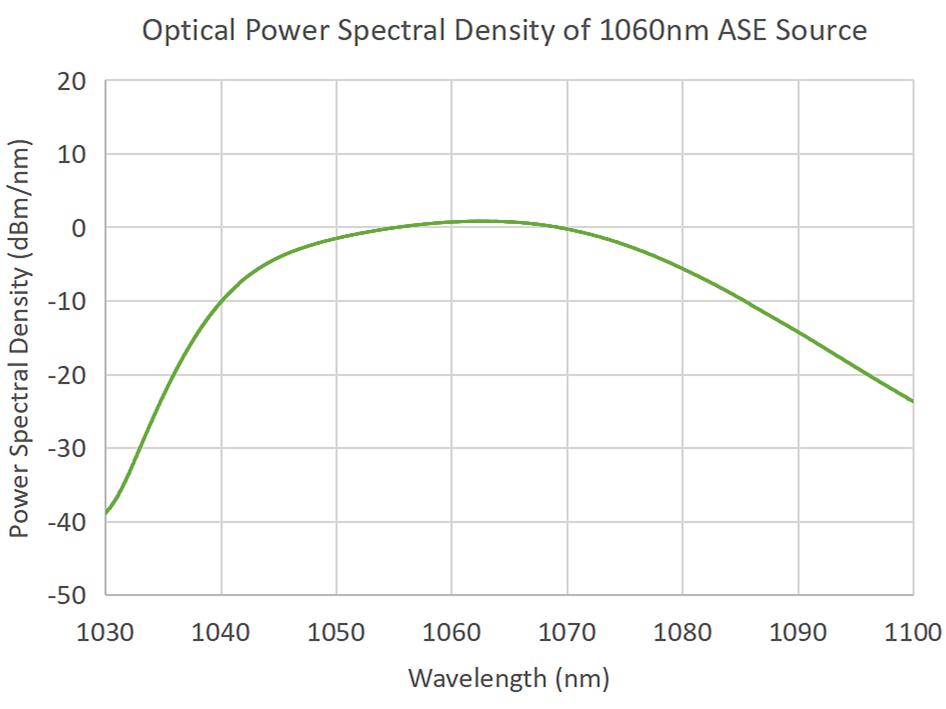

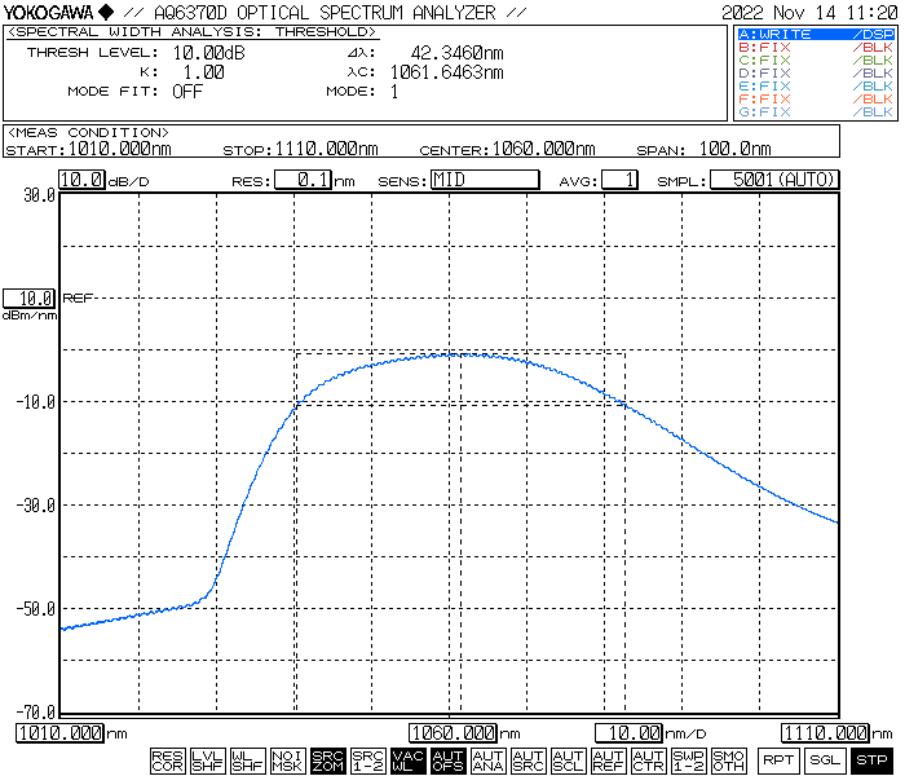

    Spectrum





     Ordering info

    Ordering information / PN#

    ASE

    Spectrum range

    Output power(W)

    *Power adjustable (optional)

    Output pigtail type

    Package method

    1010/1060/1150

    10/20/30/50/100

    *T

    SM=single mode fiber

    B=Benchtop

    PM=Polarization-mode fiber

    M=Module
