320-1000nm Silicon-based Amplified Photodetector, Photodetector Size Φ0.8mm

320-1000nm Silicon-based Amplified Photodetector, Photodetector Size Φ0.8mm

The Silicon-based Amplified Photodetector from IdealPhotonics covers a wavelength range of 200nm to 1100nm, featuring fixed gain for quantitative photoconversion. It provides sufficient gain while ensuring high bandwidth performance, making it suitable for the development of photodetection applications involving weak light intensity and fast speeds. It delivers excellent performance and high cost-efficiency, along with Quan-level technical support. Commonly used in ultraviolet (UV) and visible light measurement.

Product features：Wavelength range: 200nm to 1100nm, commonly used in ultraviolet and visible light measurements、 Amplified detector with fixed gain for quantitative photoconversion、 Ensures high bandwidth and sufficient gain, ideal for photodetection with weak light intensity and fast speeds、 Excellent performance with high cost-effectiveness and full technical support、 Customization services available

Part Number：--

Application area：Ultraviolet (UV) and visible light measurement

Add to Cart Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Dimension Drawing

General Parameters

Main Parameters

Parameters	Value
Wavelength Range	200-1100nm	400-1000nm	320-1100nm	320-1000nm
Active area	Φ1.0mm	Φ150um	1.1mm×1.1mm	Φ0.8mm
Bandwidth Range	DC ～150MHz	DC～380MHz	DC～20MHz	DC～50MHz
Gain Range	Hi-Z Load: 1 × 10⁴ V/A; 50Ω Load: 5 × 10³ V/A	Hi-Z Load: 5 × 10⁴ V/A; 50Ω Load: 2.5 × 10⁴ V/A	1 × 10¹² V/A ±10%	Hi-Z Load: 100kV/A; 50Ω Load: 50kV/A
Signal Amplitude	Hi-Z Load: 0 ～10V; 50Ω Load: 0～5V	Hi-Z Load: 0 ～10V; 50Ω Load: 0～5V	0 ～10V	Hi-Z Load: 0～3.6V; 50Ω Load: 0~1.8V
NEP	2.92× 10^-11W/Hz^1/2	3.6 × 10^-11W/Hz^1/2	3.0 × 10^-15W/H z^1/2	7.8 × 10^-12W/Hz^1/2
Photodetector Depth	0.09" (2.2 mm)	0.20" (5.0 mm)	0.10" (2.4 mm)	0.07" (1.8 mm)
Operating Temperature	10-50℃	10-40℃	10-50℃
Storage Temperature	-25-70℃
Detector Net Weight	0.10kg			0.06kg
Dimensions	2.79" X 1.96" X 0.89" (70.9 mm X 49.8 m m X 22.5 mm)		2.79" X 1.96" X 0.89" (70.9 mm X 49.9 mm X 22.5 mm)
Power Supply Interface	Power Supply	Power Switch	Signal Interface	Support Rod Interface	Optical Interface
LUMBERG R SMV3 FEMA LE	LDS12B(DP), ±12 VD, C Linear Power Supply, 6W, 220VAC	Slide switch with LED indicator	BNC Female Socket	M4 X 2	SM1 X 1 SM0.5 X 1

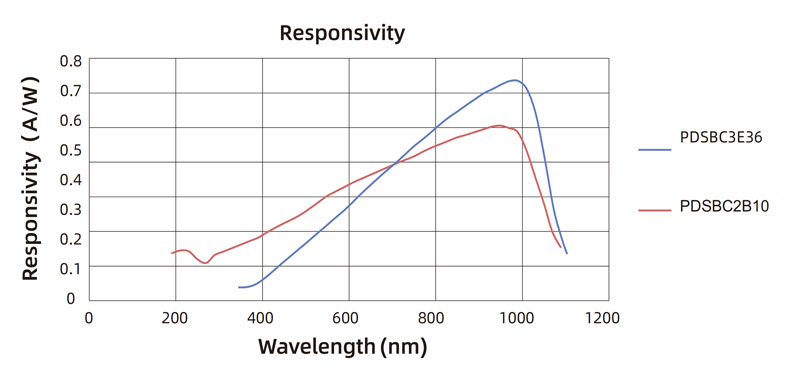

SI Response Curve:

Attachment 1: Optional Configuration Table

Silicon-Based Amplifying Photodetector	Optional Configuration
Product Name	Material	Type	Features	Wavelength Range Photodetector Size	Reserved Optional Configuration
PD: "Photodetector"	S: Si Silicon-based	A: Amplifying Type	F: Fixed Gain	2B10：200-1100nm ，Φ1.0mm
				4F015：400-1000nm ，Φ150u m
				3D11： 320-1100nm ，1.1mmX1.1 mm
				3C8：320-1000nm ，Φ0.8mm

Attachment 2：Model and Part Number Comparison Table

Model	Part Number	Specs
PDSAF2B10	A80153417	200-1100nm Silicon-based Amplifying Photodetector, Active area Φ1.0mm, Fixed Gain 1 × 10⁴V/A, Bandwidth DC ~ 150MHz
PDSAF4F015	A80153418	400-1000nm Silicon-based Amplifying Photodetector, Active area Φ150µm, Fixed Gain 5 × 10⁴V/A, Bandwidth DC ~ 380MHz
PDSAF3D11	A80153419	320-1100nm Silicon-based Amplifying Photodetector, Active area 1.1mm × 1.1mm, Fixed Gain 1 × 10¹²V/A ± 10%, Bandwidth DC ~ 20MHz
PDSAF3C8	A80153420	320-1000nm Silicon-based Amplifying Photodetector, Active area Φ0.8mm, Fixed Gain 100kV/A, Bandwidth DC ~ 50MHz

Optional Configurations

Downloads

320-1000nm Silicon-based Amplified Photodetector, Photodetector Size Φ0.8mm.pdf
