    • 1550nm High Power Single Mode Fiber Laser 3W

    With optimized optical properties, 1550nm single-mode DFB is an ideal choice for demanding sensing system applications. The innovative chip design has suppressed high-order longitudinal and transverse modes while maintaining linear polarization stability. The laser has high output power (Max. 50W output), narrow line width and good consistency, and is currently favored by domestic scientific research customers. At present, our existing inventory wavelengths cover 1000-2400nm. For certain specific areas of use of customers, we can provide customers with customized chip screening services.

    Product features：Ultra-narrow linewidth: <10MHz、 No mode jump、 High stability and reliability、 Output power continuously adjustable, LCD status display

    Part Number：--

    Application area：LAN/WAN communication system、 CATV System、 Test Measurement、 Other scientific research

    Add to Cart Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Dimension Drawing
    • General Parameters

    Technical Parameters

    Unit

    Technical indicators

    Min

    Type

    Max

    Product Model


    LP-1550-B-10-1

    Peak operating wavelength

    nm

    -

    1550

    -

    Output Power

    Single Mode

    w

    -

    10

    50

    Polarization Maintaining

    w

    -

    10

    20

    Output side mode suppression ratio (SMSR)

    dB

    20

    25

    35

    Output Polarization Extinction Ratio (PER)

    dB

    20

    -

    -

    Output power stability (15 minutes)

    %

    -

    ±0.1

    ± 0.5

    Output power stability (8 hours)

    %

    -

    ±0.5

    ± 1.0

    Output power adjustable range

    %

    10

    -

    100

    Output power regulation mode


    Coarse adjustment / fine adjustment

    Operating voltage

    V

    170

    220

    260

    Operating temperature

    ℃

    0

    -

    35

    Storage temperature

    ℃

    -40

    -

    85

    Output fiber type

    Single Mode

    W

    SMF-28e@<10w

    Polarization Maintaining

    W

    PM 9/125um @<10w

    Output fiber length

    m

    >1

    Output fiber connector


    FC/APC

    Specifications and dimensions

    mm

    Rack can be customized

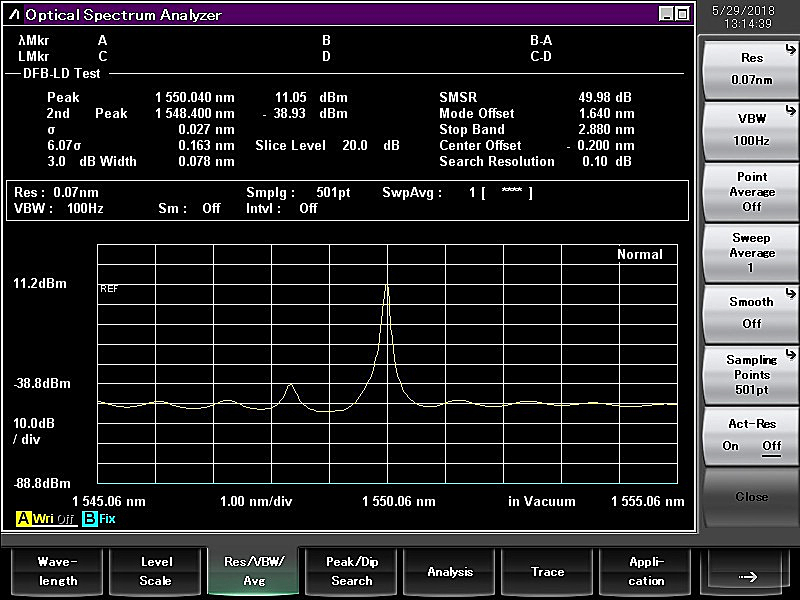

    Spectrum


    Power stability analysis


    Beam quality analysis

    Optional Configurations

    --

    Downloads

    1550nm High Power Single Mode Fiber Laser 3W.pdf
