首页 Light Sources Incoherent Sources SLD light source 1250-1650nm Ultra Wideband SLD Light Source 1250-1650nm ultra-broadband SLD light source 10mW

    • 1250-1650nm ultra-broadband SLD light source 10mW

    The ultra-wideband SLD light source uses multiple bands of super-radiant light sources to combine and splice the spectrum, achieving single-mode fiber output covering an ultra-wideband spectrum of 1250-1650nm wavelength, while having a high optical power spectrum density. It is suitable for passive device testing, fiber optic sensing and other applications.

    产品特点Ultra-wide spectrum、 Low spectral ripple、 Power stability

    产品货号A80051041

    应用领域Fiber optic sensing、 Medical imaging、 Fiber optic device testing

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameter

    Parameter

    Unit

    Typical

    Notes

    Spectral range

    nm

    1250~1650


    Total output optical power

    mW

    >10

    Not adjustable

    Spectral power density

    dBm/nm

    ≥-25


    Spectral ripple

    dB

    <0.2


    Short-term stability (15 minutes)

    dB

    ≤  ±0.02

    Equivalence≤±0.5%

    Long-term stability (8 hours)

    dB

    ≤  ±0.05

    Equivalence≤±1.2%

    Degree of polarization DOP

    dB

    ≤ 0.2


    Pigtail type

    -

    SMF-28Fiber


    Pigtail connector type

    -

    FC/APC




    Electrical and environmental parameters

    Benchtop

    Module

    Control mode

    Button

    RS232 Serial communication

    Communication interface

    Optional

    DB9 Female

    Power supply

    100~240VAC, <30W

    5V DC, <15W

    Dimensions

    260(W)×280(D)×120(H)mm

    125(W)×150(D)×20(H)mm

    Operating temperature range

    -5~+35°C

    Operating humidity range

    0~70%

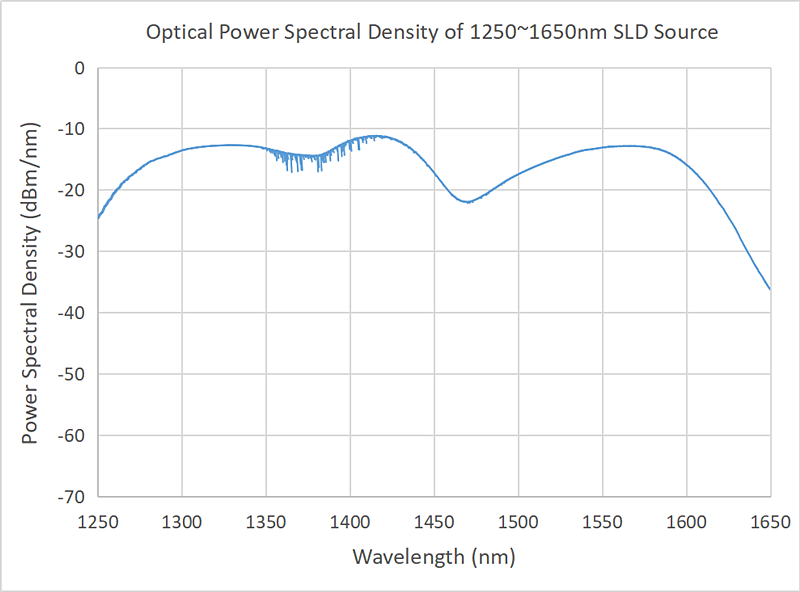

     *1350~1400nm is the OH- absorption peak



    Ordering Information

    Ordering information / PN#


    SLD

    Spectrum range

    Power spectral density (dBm/nm)

    Package method

    2565=1250~1650nm

    25=-25dBm/nm

    B=Benchtop

    M=Module
