1550nm thermally insensitive packaged fiber Bragg grating

1550nm thermally insensitive packaged fiber Bragg grating

Fiber Bragg gratings are widely used as wavelength filters in the communication field. The central wavelength of the fiber Bragg grating is highly sensitive to external temperature changes. This packaging utilizes unique technology to ensure that the central wavelength of the grating is unaffected by temperature variations.

Product features：100G/50G channel spacing、 Low insertion loss、 Excellent channel isolation

Part Number：--

Application area：Local area network and backbone network、 Dense wavelength division multiplexing network、 Wavelength reference

Add to Cart Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Dimension Drawing

General Parameters

Technical Parameters

Parameters	Value
Wavelength range	1550nm+/-0.05nm
Reflection bandwidth @3dB	1nm+/-0.05（125G）
Insertion loss	<0.2dB
Isolation	>10dB
Reflectivity	>95%
Polarization-dependent loss	<0.1dB
Wavelength drift	<0.1nm from -5 degree to 70 degree
Fiber type	SMF-28 Compatible
Package dimensions	5.5mm(Dia.) *65mm
Storage temperature	-40℃ ~ +85℃

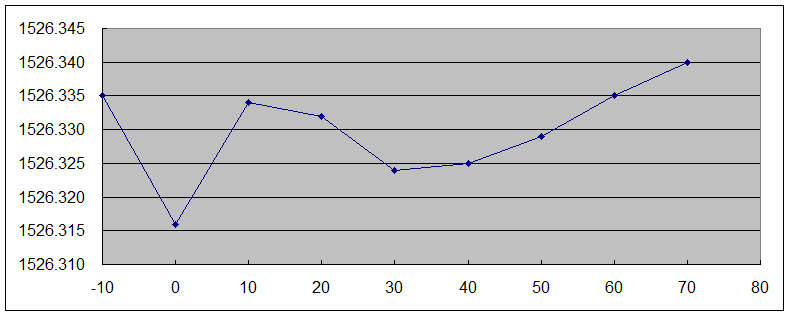

Thermal stability

Optional Configurations

Downloads

1550nm thermally insensitive packaged fiber Bragg grating.pdf
