  • Pulsed EDFA Erbium Doped Fiber Amplifier Module 1550nm 20KHz

    Pulsed EDFA Erbium-doped Fiber Amplifier Module 1550nm, repetition frequency; 20KHz, pulse width 200ns.

    产品特点

    产品货号B80021107

    应用领域

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话:18602170419

    邮箱:moli@microphotons.com

    主要参数
  • 核心参数
  • 尺寸图
  • Main Parameters:

    Parameters

    Unit

    Min

    Typ

    Max

    Note

    Wavelength range

    nm


    1550±0.5



    Pulse width



    200ns



    Repetition frequency



    20KHz



    Input peak power

    mW


    1



    Input average power

    uW


    4


    @1mW×200ns×20kHz

    Output peak power

    W


    > 100


    @200ns,20kHz The average power is about 100mW

    Noise figure

    dB



    5.5


    Polarization-dependent gain

    dB



    0.5


    Polarization mode dispersion

    ps



    0.5


    Input/output isolation

    dB


    35



    Operating temperature range

    °C

    -5


    +55


    Operating humidity range

    %



    70


    Pigtail connector type


    FC/APC


    Pigtail type


    Single mode fiber SMF-28e


    Power supply method

    -

    DC5v

    National Standard

    Dimensions

    mm

    125(W)×150(D)×20(H)


    Communication interface and control method

    -

    RS232 DB9

    Host computer software version V20220708

    Working mode

    -

    ACC: Automatic pump current control

    Maximum current 900mA

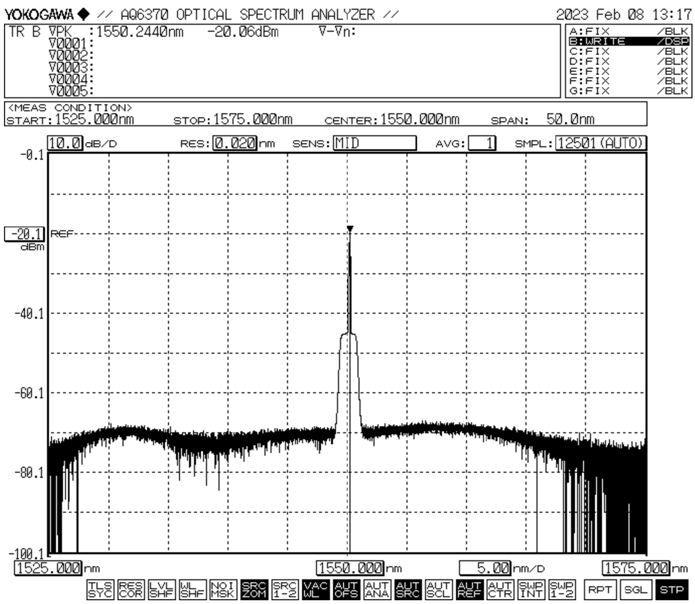

    Input and output spectra:

    (Test conditions: peak 1mW/20kHz/200ns input, average power 160mW output, drive current 900mA, ACC mode)

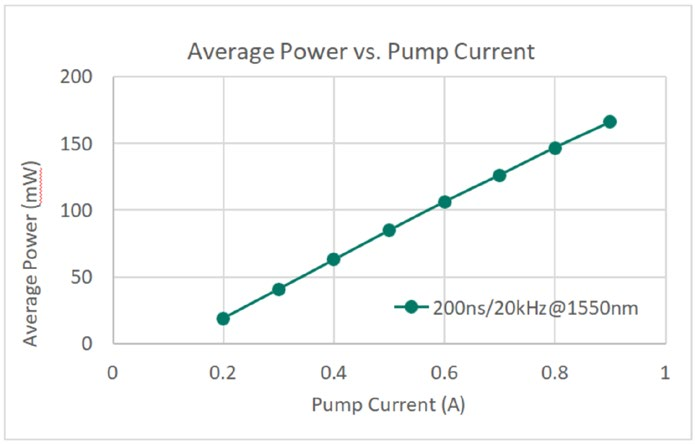

    Output power-driving current curve (P-I):
