Single Mode Coaxial Fiber Collimator 1550nm

Also known as unbiased fiber collimator, the conventional fiber collimator has poor positional accuracy between the optical axis and the mechanical outer circle, that is, there are errors such as position deviation and angle between the optical axis and the mechanical center axis of the collimator, which makes the collimator unable to be used in the plug-in connector and rotating state. Unbiased fiber collimator is a good solution. The optical axis and the mechanical axis basically coincide, so that the collimator does not need precise adjustment when used in pairs. Just align the outer circles of the two fiber collimators to obtain a smaller optical path insertion loss. The product has good interchangeability, which greatly improves installation efficiency and reduces the difficulty of manual adjustment.

产品特点High-precision packaging case、 Plug-in and low-loss、 Non-contact optical signal transmission、 Long service life

产品货号A80152263

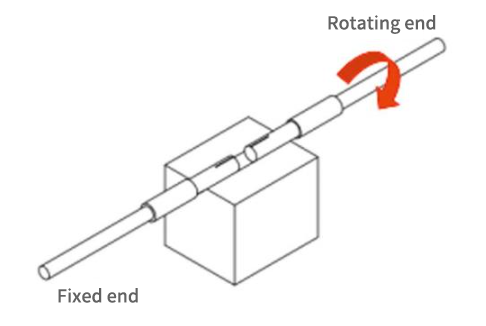

应用领域Fiber optic rotary connector、 Fiber optic beam expansion connector、 Photoelectric hybrid slip ring、 Fiber optic rotary pan-tilt optical current transformer、 Plug-and-play optical collimation link
