VIR-MIR-2000 Mid-infrared high-efficiency laser fluorescence induction card

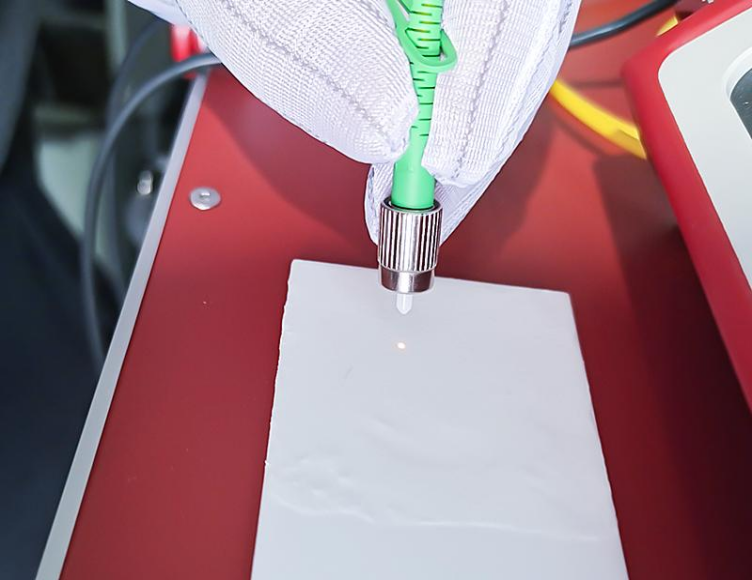

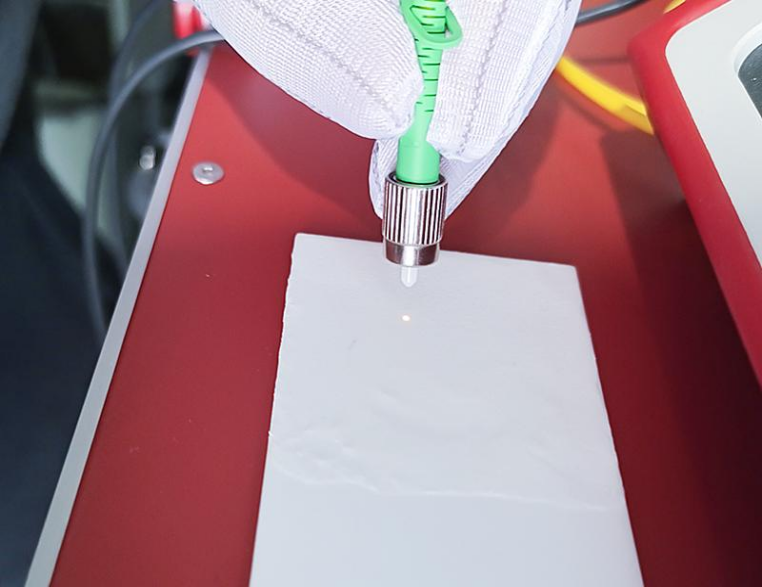

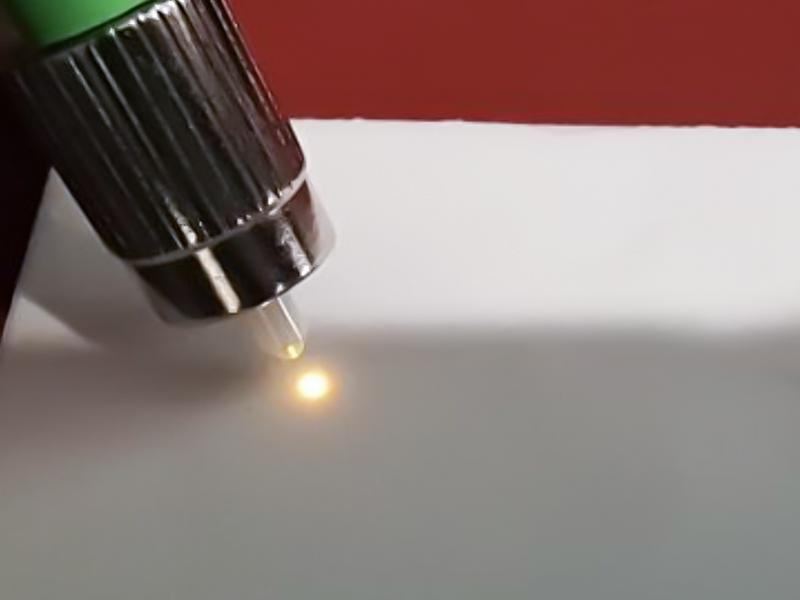

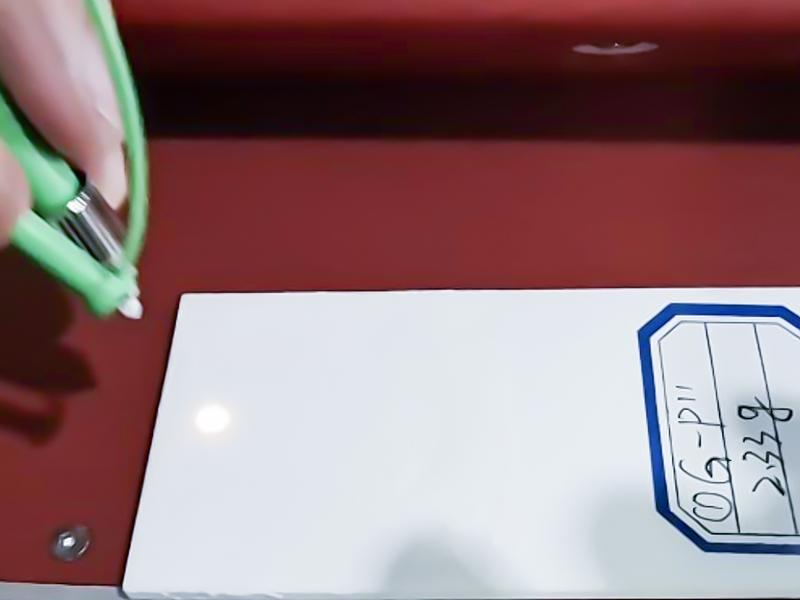

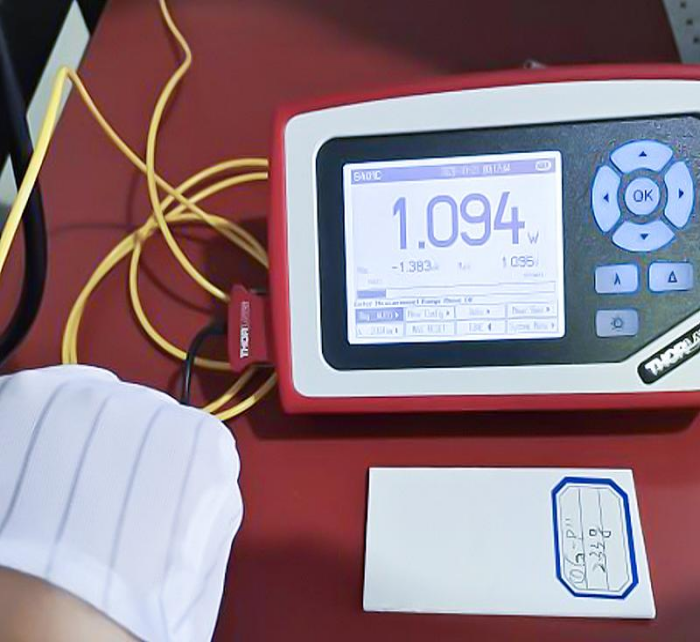

This laser fluorescence induction card is small and easy to carry. The laser induction card is a standard size: 50X35mm, and the maximum power is 20W. It can display MIR laser beams, making up for the vacancy of 2um laser induction cards on the market, and provides convenience, safety, reliability and excellent performance for the commonly used 2um lasers in the optical path construction and experimental testing. The obvious beam can be observed on the induction card, which reduces the difficulty of finding the spot size and position of the invisible mid-infrared laser. The 2um high-efficiency laser induction card can sense lasers in the wavelength range of 1900-2100nm. The material of the induction card is a wear-resistant and high-temperature resistant ceramic material. The photosensitive area is coated on its front surface, which can easily locate the infrared light near the mid-infrared 2um and its focus. Moreover, our photosensitive card does not need to charge the photosensitive area. Even when detecting continuous light in the dark, the emission is stable and continuous, and the service life is long.

产品特点Laser alignment and detection、 Low threshold power、 Customized size and shape profile、 Covered band: 1900-2100nm、 High sensitivity, high performance、 Ceramic substrate can withstand Max. 20W power

产品货号E80020011

应用领域Laser alignment and detection、 Construction of laser optical path
