Multi-mode fiber achromatic collimator 1550nm (beam waist spot diameter 10mm)

Multi-mode fiber achromatic collimator 1550nm (beam waist spot diameter 10mm)

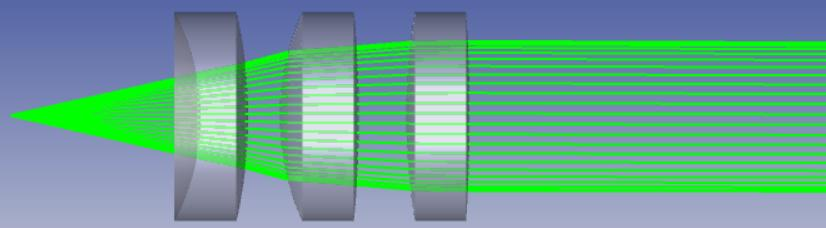

It is composed of a group of large numerical aperture lens systems, and can use multimode optical fibers with large numerical apertures. It can shape the light beam emitted from the multimode optical fiber, and can also couple the spatial flat beam into the multimode optical fiber, so that the light beam has a good collimation effect and spot shape within a long distance.

Product features：Achromatic processing, focal length is not sensitive to wavelength, collimator has rich wavelengths、 Large numerical aperture design、 Can be used for collimation or coupling、 Non-magnetic stainless steel housing

Part Number：--

Application area：

Add to Cart Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Dimension Drawing

General Parameters

635nm Multimode Fiber Achromatic Collimator

Central wavelength

Lens coating wavelength

Beam waist spot

Beam divergence angle

Effective focal length

Numerical aperture (lens)

Package diameter

Access fiber type

Connector

Transmittance

635nm

400~700nm

4mm

0.2 °

10mm

0.37

φ 11mm

62.5/125

FC/PC Sma905

>90%

10mm

1.0 °

25mm

0.25

Φ 15mm

105/125

780nm Multimode Fiber Achromatic Collimator

Central wavelength

Lens coating wavelength

Beam waist spot

Beam divergence angle

Effective focal length

Numerical aperture (lens)

Package diameter

Access fiber type

Connector

Transmittance

780nm

700~ 1100nm

4mm

0.2 °

10mm

0.37

φ 11mm

62.5/125

FC/PC Sma905

>90%

10mm

1.0 °

25mm

0.25

Φ 15mm

105/125

850nm Multimode Fiber Achromatic Collimator

Central wavelength

Lens coating wavelength

Beam waist spot

Beam divergence angle

Effective focal length

Numerical aperture (lens)

Package diameter

Access fiber type

Connector

Transmittance

850nm

700~ 1100nm

4mm

0.2 °

10mm

0.37

φ 11mm

62.5/125

FC/PC Sma905

>90%

10mm

1.0 °

25mm

0.25

Φ 15mm

105/125

905nm Multimode Fiber Achromatic Collimator

Central wavelength

Lens coating wavelength

Beam waist spot

Beam divergence angle

Effective focal length

Numerical aperture (lens)

Package diameter

Access fiber type

Connector

Transmittance

905nm

700~ 1100nm

4mm

0.2 °

10mm

0.37

φ 11mm

62.5/125

FC/PC Sma905

>90%

10mm

1.0 °

25mm

0.25

Φ 15mm

105/125

1064nm Multimode Fiber Achromatic Collimator

Central wavelength

Lens coating wavelength

Beam waist spot

Beam divergence angle

Effective focal length

Numerical aperture (lens)

Package diameter

Access fiber type

Connector

Transmittance

1064nm

1050~ 1700nm

4mm

0.2 °

10mm

0.37

φ 11mm

62.5/125

FC/PC Sma905

>90%

10mm

1.0 °

25mm

0.25

Φ 15mm

105/125

1310nm Multimode Fiber Achromatic Collimator

Central wavelength

Lens coating wavelength

Beam waist spot

Beam divergence angle

Effective focal length

Numerical aperture (lens)

Package diameter

Access fiber type

Connector

Transmittance

1310nm

1050~ 1700nm

4mm

0.2 °

10mm

0.37

φ 11mm

62.5/125

FC/PC Sma905

>90%

10mm

1.0 °

25mm

0.25

Φ 15mm

105/125

1550nm Multimode Fiber Achromatic Collimator

Central wavelength

Lens coating wavelength

Beam waist spot

Beam divergence angle

Effective focal length

Numerical aperture (lens)

Package diameter

Access fiber type

Connector

Transmittance

1550nm

1050~ 1700nm

4mm

0.2 °

10mm

0.37

φ 11mm

62.5/125

FC/PC Sma905

>90%

10mm

1.0 °

25mm

0.25

Φ 15mm

105/125
