    • 1950nm 1m long distance fiber collimator single mode

    Idealphotonics' fiber collimators are pre-aligned and used to collimate light emitted from FC/APC connector fibers with diffraction-limited performance. These fiber collimators have no moving parts and are compact and easy to integrate into existing devices. Currently, the supported operating bands are 532/633/780/850/915/1064/1310/1550nm/1950nm.

    产品特点Fiber Collimators with FC/APC Connectors for Single Mode Patch Cables、 Long Working Distances、 Each Collimator is Factory Aligned、 Simplified Fiber Coupled Detection Systems

    产品货号A80150172

    应用领域Fiber Amplifiers、 WDM & DWDM Systems、 Fiber Equipment、 Fiber Lasers

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameter

    Parameter

    Indication

    Center wavelength

    1950nm

    Insertion loss (IL)

    ≤2.2dB

    Return loss (RL)

    ≥55dB

    Working distance

    1000mm

    Connector type

    FC/APC

    Fiber type

    SM1950

    Fiber length

    1.0±0.05m

    Maximum optical power (CW)

    300mW

    Buffer type

    0.9mm loose tube

    Dimensional information

    Φ4.0xL20mm




    Experimental testing

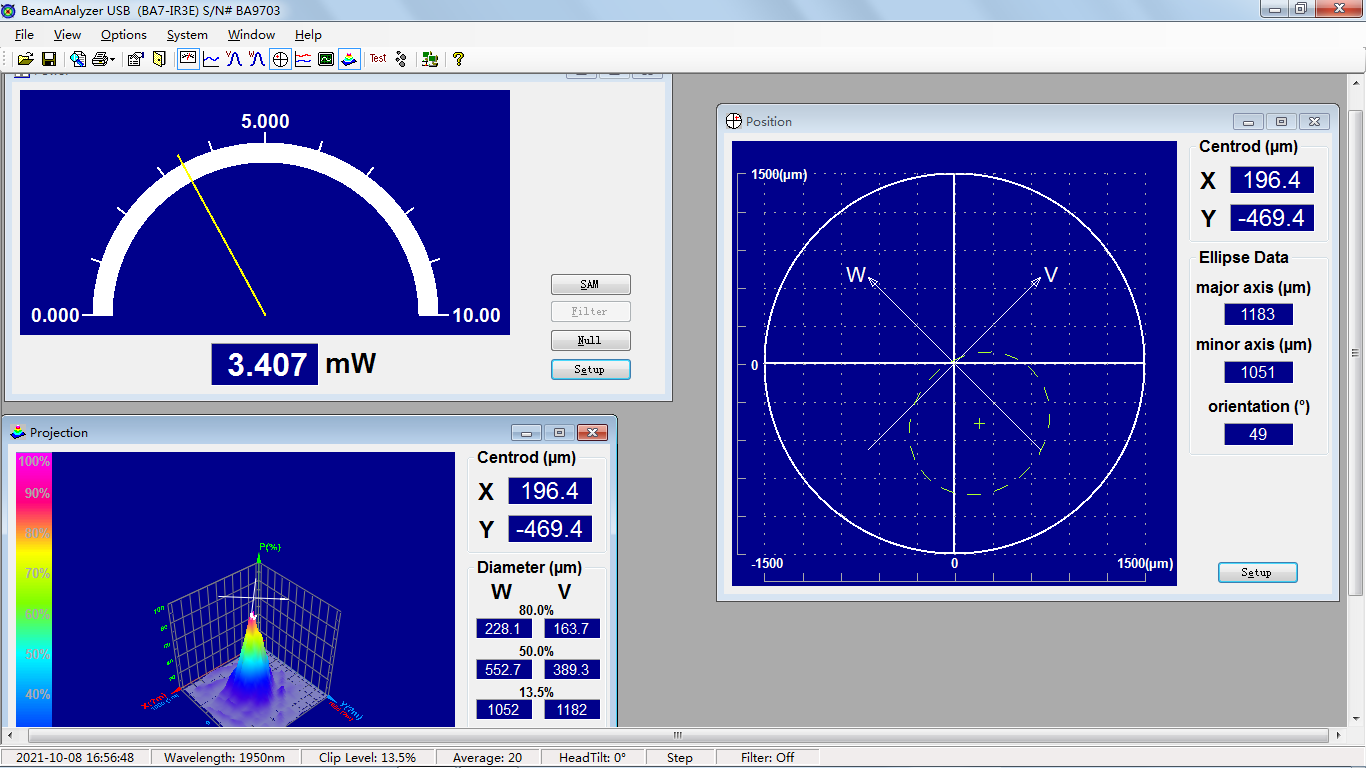

    Spot pattern of 1950nm laser after collimation (working distance 1m)
