    • Silicon Si avalanche photodiode 905nm (photosensitive surface diameter 0.23mm LCC3)

    Silicon avalanche photodiode, spectral response range from visible light to near infrared, peak response wavelength 905nm. Large photosensitive surface, high speed response, high gain, low noise.

    产品特点Front-illumination planar chip structure、 High-speed response、 High gain、 Low junction capacitance、 Low noise

    产品货号E80040254

    应用领域Laser ranging、 Laser radar、 Laser warning

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameter

    Photoelectric performance (@Ta=22±3℃)

    PN#

    Spectral response range(nm)

    Peak response wavelength(nm)

    responsivity

    Dark current M=100(nA)

    Response time  (ns)

    Operating voltage temperature coefficient(V/℃)

    Total capacitance(pF)

    Breakdown voltage(V)

    Typical

    Max.

    Min.

    Max.

    APD-SI-905-2-TO46

    400～1100

    905

    55

    0.2

    1

    0.6

    0.9

    1.0

    130

    220

    APD-SI-905-TO46

    0.4

    1

    1.2

    APD-SI-905-8-TO46

    0.8

    2

    2.0

    APD-SI-905-2-LCC3

    0.2

    1

    1.0

    APD-SI-905-5-LCC3

    0.4

    1

    1.2




    Structure/Max. absolute rated value

    PN#

    Package method

    Photosensitive surface diameter(mm)

    Operating voltage (V)

    Operating temperature (℃)

    Storage temperature (℃)

    Soldering temperature (℃)

    Forward current (mA)

    Power dissipation (mW)

    APD-SI-905-2-TO46

    TO-46

    0.23

    0.9×V BR

    -40～85

    -45～100

    260

    0.25

    100

    APD-SI-905-5-TO46

    TO-46

    0.50

    APD-SI-905-8-TO46

    TO-46

    0.80

    APD-SI-905-2-LCC3

    LCC3

    0.23

    APD-SI-905-5-LCC3

    LCC3

    0.50




    PN

    Name

    PN#

    Description

    Silicon Avalanche Photodiode

    APD-SI-905-0.23-TO46

    Spectral response range: 400-1100nm

    Peak response wavelength: 905nm

    Photosensitive surface diameter: 0.23mm

    Package: TO46

    Silicon Avalanche Photodiode

    APD-SI-905-0.5-TO46

    Spectral response range: 400-1100nm

    Peak response wavelength: 905nm

    Photosensitive surface diameter: 0.50mm

    Package: TO46

    Silicon Avalanche Photodiode

    APD-SI-905-0.8-TO46

    Spectral response range: 400-1100nm

    Peak response wavelength: 905nm

    Photosensitive surface diameter: 0.80mm

    Package: TO46

    Silicon Avalanche Photodiode

    APD-SI-905-0.23-LCC3

    Spectral response range: 400-1100nm

    Peak response wavelength: 905nm

    Photosensitive surface diameter: 0.23mm

    Package: LCC3

    Silicon Avalanche Photodiode

    APD-SI-905-0.5-LCC3

    Spectral response range: 400-1100nm

    Peak response wavelength: 905nm

    Photosensitive surface diameter: 0.50mm

    Package: LCC3

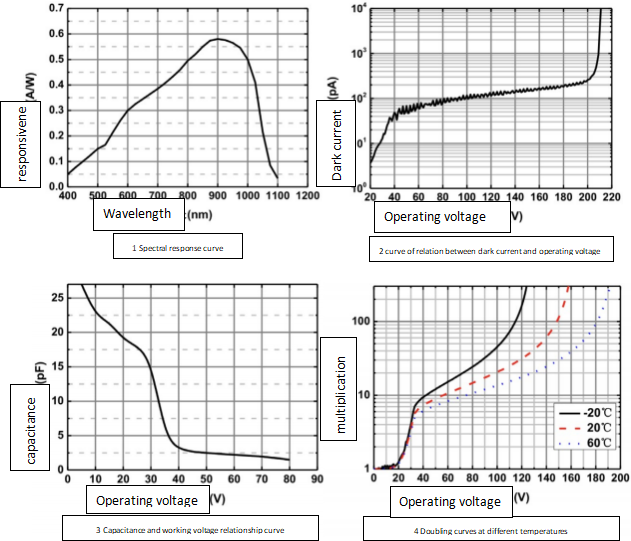

    Typical characteristic curve





    Package shape, size and pin definition:

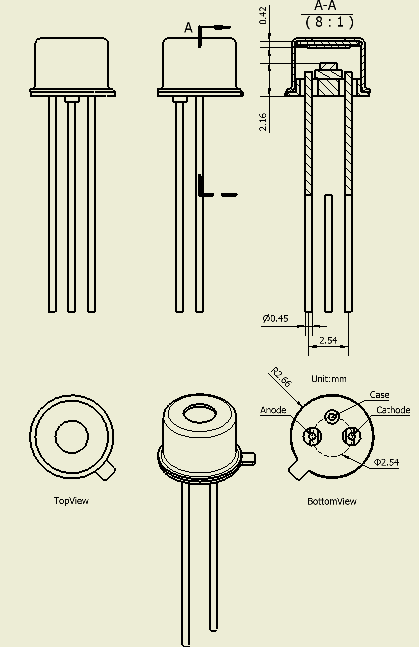

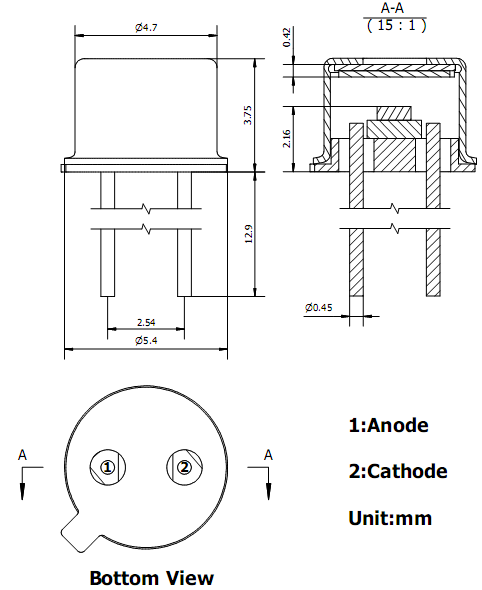

    APD-SI-905-2/5/8-TO46 (three-pin and two-pin packages)

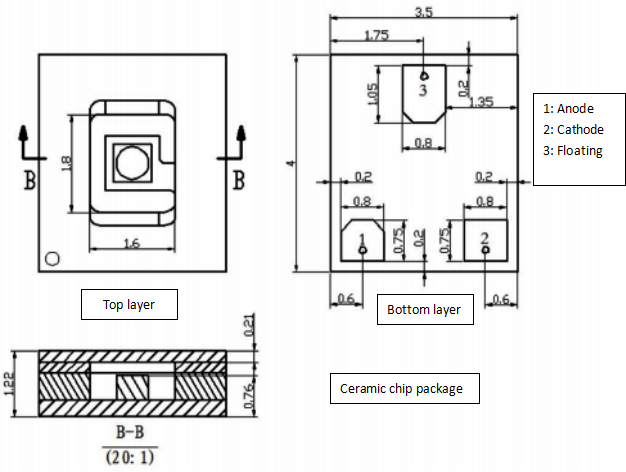

    APD-SI-905-2/5-LCC3

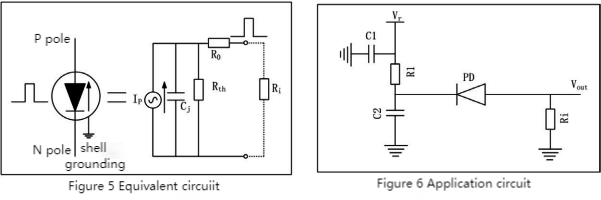

    Equivalent circuit and application circuit





    Note:

    C1-filter capacitor, filters out the noise of bias voltage VR.

    C2-bypass capacitor, provides a ground loop for AC signal.

    R1-current limiting resistor, prevents damage to the detector when bias voltage VR is too high.

    Ri-sampling resistor, converts photocurrent into voltage signal.



    Order Information

    PN#

    [APD-SI-response wavelength-photosensitive surface diameter-packaging form]
