首页 Light Sources Optical Amplifier EDFA C+L band erbium-doped fiber power amplifier (saturated output 27dBm) C+L band erbium-doped fiber amplifier Benchtop(saturated output 27dBm)
  • C+L band erbium-doped fiber amplifier Benchtop(saturated output 27dBm)

    C+L band erbium-doped fiber power amplifier (BA amplifier for short) can be used to amplify optical signals in the power range of -6dBm~+3dBm or higher, with a maximum saturated output power of 27dBm. It is often used to increase the emission power of laser light sources.

    产品特点Wide wavelength range、High output power、Low noise

    产品货号B80021169

    应用领域Fiber optic communication 、 Fiber optic sensing 、 Fiber laser systems

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话:18602170419

    邮箱:moli@microphotons.com

    主要参数
  • 核心参数
  • 尺寸图
  • 1744853384885.jpg

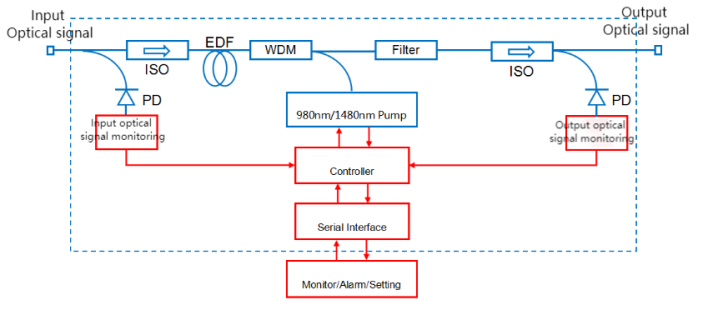

    Main Parameters

    Optical Specifications

    Unit

    Typical Value

    Remarks

    Wavelength Range

    nm

    1528~1563

    C-band

    1570~1603

    L-band

    Input Power

    dBm

    -6~+3


    Total Output Power

    dBm

    27

    @-3dBm input

    Noise Figure

    dB

    ≤5.0

    @-3dBm input

    Polarization Dependent Gain

    dB

    <0.3


    Polarization Mode Dispersion

    ps

    0.5


    Input/Output Isolation

    dB

    >35


    Optical Power Monitoring

    -

    Output optical power monitoring


    Pigtail type

    -

    SMF-28


    Pigtail connector typr

    -

    FC/APC


    Operating mode


    ACC/APC

    *Note



    Electrical and Environmental Parameters

    Benchtop

    Module

    Control Method

    Keypad / RS232 Serial Communication

    RS232 Serial Communication

    Communication Interface

    DB9 Female

    DB9 Female

    Power Supply

    100~240V     AC,<30W

    5V DC,     <15W

    Dimensions

    260(W) ×280(D) ×120(H)mm

    125(W) ×150(D) ×20(H)mm

    Operating Temperature Range

    -5~+35°C

    Operating Humidity Range

    0~70%



    Order information / PN#

    EDFA

    Operating wavelength

    PG Packaging

    OPP

    Saturation output power

    (dBm)

    Fiber type

    ISO

    Built-in isolator protection


    C=C band

    L=L band

    C+L

    M=Module

    B=Benchtop

    27

    SM=Single-mode fiber

    0 None

    1 Pump protection

    *Note: ACC mode - automatic current control: the user sets the EDFA pump operating current, and the EDFA automatically locks it to achieve constant pump current. When the input optical power fluctuates, the output power will also fluctuate accordingly. It is applicable to all EDFA models. PA amplifiers only support ACC mode.

    APC mode - automatic power control: the user sets the EDFA signal light output power, the PD automatically monitors and feedbacks the output power, and the EDFA controls and adaptively adjusts the pump to achieve output signal stability. The power adjustment range in APC mode is usually 10%~100%. The advantage of APC mode is that when the input optical power fluctuates, the EDFA will reduce the output power fluctuation as much as possible. It is applicable to power-type and line-type EDFA, but not suitable for low repetition frequency pulse signals.


    Attachment 1: Optional Configuration Table

    C++ Band Gain Flattened Erbium-Doped Fiber Amplifier

    Optional Configurations

    Product Name

    Operating Wavelength

    Amplifier Type

    Saturation Output Power

    Fiber Type

    Connector

    Package Type

    Reserved Optional Configurations

     EA: "Erbium-Doped Fiber Amplifier"

    1: C++ Band

    BF: Gain Flattened Power Amplifier

     B 16-20dbm

     S: Single Mode

    A:FC/APC

     M: Module





    C21-25dbm



    B: Benchtop



    Attachment 2: Model and Product Number Cross-Reference Table

    PN#

    Product Number

    Specifications

    EA1BFBSAM

    B80030300

    C++ Band Gain Flattened Erbium-Doped Fiber Power Amplifier, C++ Band, Gain: 16dB, Saturation Output Power: 20dBm, Single Mode Fiber, FC/APC, EDFA Module

    EA1BFBSAB

    B80030301

    C++ Band Gain Flattened Erbium-Doped Fiber Power Amplifier, C++ Band, Gain: 16dB, Saturation Output Power: 20dBm, Single Mode Fiber, FC/APC, EDFA Desktop

    EA1BFCSAM

    B80030302

    C++ Band Gain Flattened Erbium-Doped Fiber Power Amplifier, C++ Band, Gain: 16dB, Saturation Output Power: 24dBm, Single Mode Fiber, FC/APC, EDFA Module

    EA1BFCSAB

    B80030303

    C++ Band Gain Flattened Erbium-Doped Fiber Power Amplifier, C++ Band, Gain: 16dB, Saturation Output Power: 24dBm, Single Mode Fiber, FC/APC, EDFA Desktop
