    • 1550nm High Power PM Fiber Laser 10W

    With optimized optical characteristics, the 1550nm single-mode DFB laser has become the ideal choice for high-demand sensor system applications. The innovative chip design suppresses higher-order longitudinal and transverse modes while maintaining linear polarization stability. The laser offers high output power (up to 50W), narrow linewidth, and excellent consistency, making it highly favored by domestic research customers. Currently, we have stock covering wavelengths from 1000nm to 2400nm. For certain specific customer applications, we can provide custom chip selection services.

    产品特点Ultra-narrow linewidth: <10MHz、 No mode hopping、 High stability and reliability、 Continuously adjustable output power, with LCD status display.

    产品货号B80020034

    应用领域LAN/WAN communication systems、 CATV systems、 Test and measurement、 Other scientific research

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameters

    Parameters

    Min.

    Typ.

    Max.

    Unit

    PN#

    LP-1550-B-2-1


    Peak operating wavelength

    -

    1550

    -

    nm



    Output power

    SM

    -

    10

    50

    W

    PM

    -

    10

    20

    W

    SMSR

    20

    25

    35

    dB

    Output polarization extinction ratio (PER)

    20

    -

    -

    dB

    Output power stability (15 minutes)

    -

    ±0. 1

    ±0. 5

    %

    Output power stability (8 hours)

    -

    ±0. 5

    ±1. 0

    %

    Output power adjustment range

    0

    -

    100

    %

    Output power regulation mode

    Coarse/ Fine adjustment


    Operating voltage

    170

    220

    260

    V

    Operating temperature

    0

    -

    35

    ℃

    Storage temperature

    -40

    -

    85

    ℃



    Output fiber type

    SM

    SMF-28e@<10w

    W

    PM

    PM 9/ 125um @<10w

    W

    Output fiber length

    >1

    m

    Output fiber connector

    FC/ APC


    Dimensions

    Rack-mounted customization available

    mm

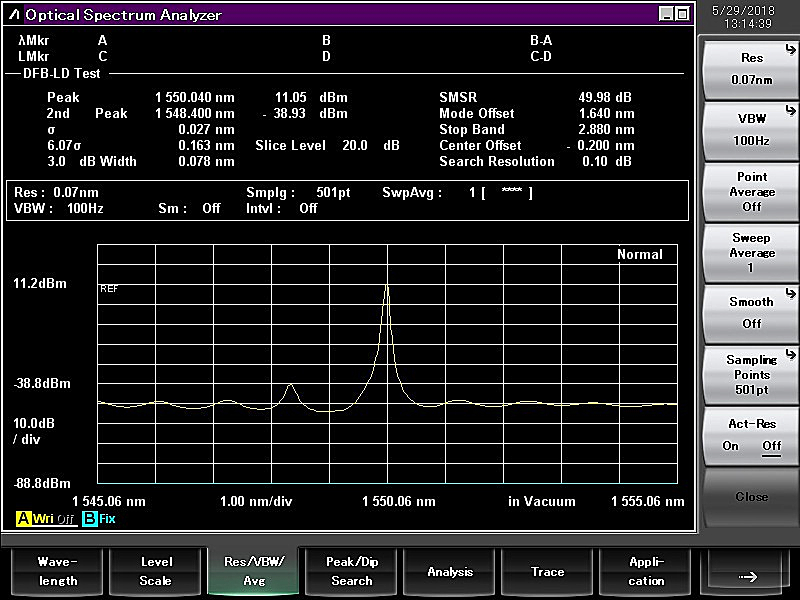

    Spectrum

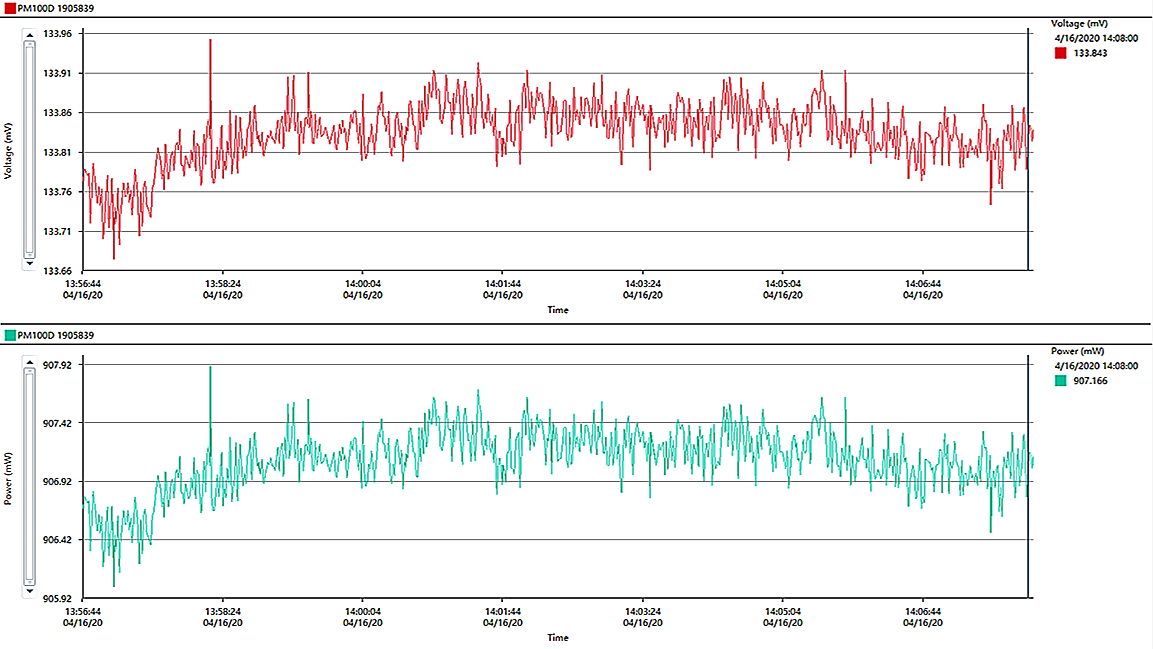

    Power stability

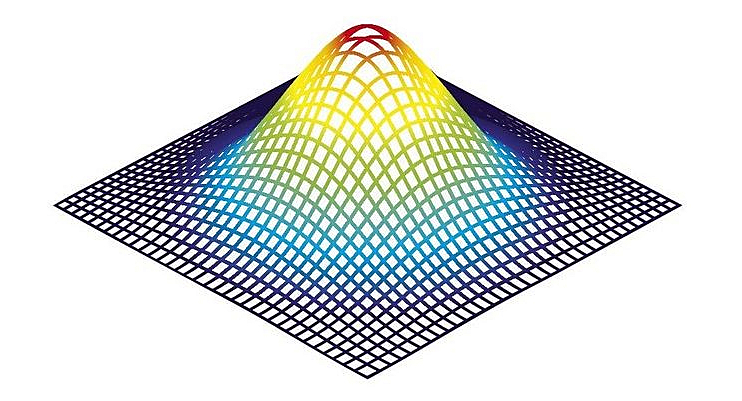

    Beam quality





    Ordering info

    A. Model: LP-1550-B-2-1-SA Description:
    Center wavelength: 1550nm, wavelength deviation: ±1nm, output power: 2W, 2U rack-mounted packaging, single-mode SMF-28E output, FC/APC connector

    B.A. Model: LP-1550-B-10-1-SA Description:
    Center wavelength: 1550nm, wavelength deviation: ±1nm, output power: 10W, 2U rack-mounted packaging, single-mode SMF-28E output, FC/APC connector

    E. Model: LP-1550-B-2-1-PA Description:
    Center wavelength: 1550nm, wavelength deviation: ±1nm, output power: 2W, 2U rack-mounted packaging, single-mode PM1550 output, FC/APC connector

    F. Model: LP-1550-B-10-1-PA Description:
    Center wavelength: 1550nm, wavelength deviation: ±1nm, output power: 10W, 2U rack-mounted packaging, single-mode PM1550 output, FC/APC connector

    C. Model: LP-1064-B-2-1-SA Description:
    Center wavelength: 1064nm, wavelength deviation: ±1nm, output power: 2W, 2U rack-mounted packaging, single-mode SM-GSF-10/125 output, FC/APC connector

    D. Model: LP-1064-B-10-1-SA Description:
    Center wavelength: 1064nm, wavelength deviation: ±1nm, output power: 10W, 2U rack-mounted packaging, single-mode SM-GSF-10/125 output, FC/APC connector

    G. Model: LP-1064-B-2-1-PA Description:
    Center wavelength: 1064nm, wavelength deviation: ±1nm, output power: 2W, 2U rack-mounted packaging, single-mode PM-10/125 output, FC/APC connector

    H. Model: LP-1064-B-10-1-PA Description:
    Center wavelength: 1064nm, wavelength deviation: ±1nm, output power: 10W, 2U rack-mounted packaging, single-mode PM-10/125 output, FC/APC connector
