    • 1550nm 1W Polarization Maintaining Erbium Doped Fiber Amplifier EDFA

    Idealphotonics optical amplifier module, optional bands: O-band, S-band, C-band, L-band. Optional amplifier types: Booster Amplifier, Pre-Amplifier. Low noise, gain 8dB~40dB optional. EDFA- C-B-40-ISO series is a C-band fiber amplifier with a wavelength of 1530-1560nm. It has a wide range of applications including high-speed data signals, image signals, and femtosecond pulse amplification applications. For WDM signals, it has excellent gain smoothness throughout the L-band broadband. Max. output, input/output fiber, control method and appearance can be customized

    产品特点Output power: greater than 5W、 Excellent noise figure、 Stable gain spectrum、 Low cost、 Output power and pump current monitoring、 ACC mode operation

    产品货号B80020089

    应用领域Optical communication、 Test and measurement、 Scientific applications

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameter

    Parameter

    Indicator

    Input power

    0-10mW

    Output maximum optical power (continuously adjustable)

    >5W

    Amplifier operating mode

    ACC

    Operating wavelength range

    1530-1560nm

    Test wavelength

    1550nm

    Input/output isolation

    >30dB

    SMSR

    >40dB

    Storage temperature range

    -40℃-75℃

    Output fiber type

    PM1550nm

    Output fiber connector

    FC/APC

    Output fiber length

    >1m

    Voltage

    220/110AC 60/50Hz

    Volume

    260×320×120mm

    Weight

    2.5kg

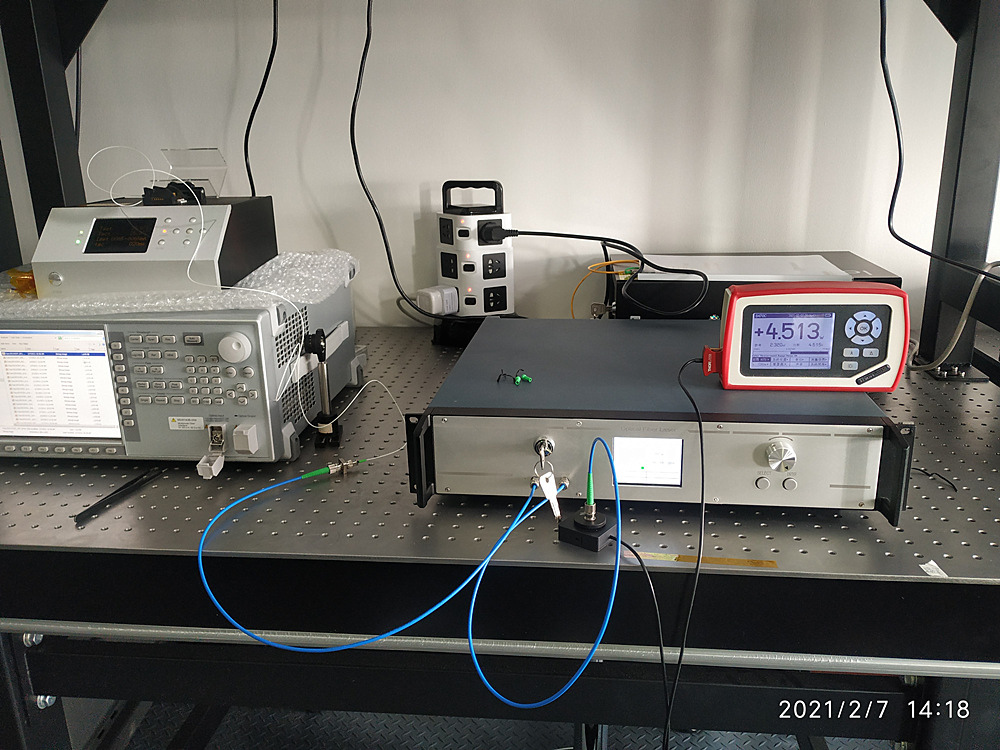

    Test steps:

    1. Install 1550nm DFB laser.

    2. Connect the fiber amplifier to the power supply and turn on the power switch.

    3. Use flange to connect the laser output to the fiber amplifier input.

    4. Connect the fiber amplifier output to the power meter.

    5. Turn on the seed source, then turn on the key switch of the fiber amplifier, press the enter key, adjust the power through the knob, or adjust the coarse or fine adjustment through the select key, then press the enter key, laser output, check the power or spectrum.

    6. When shutting down, turn off the amplifier first, then turn off the seed source.

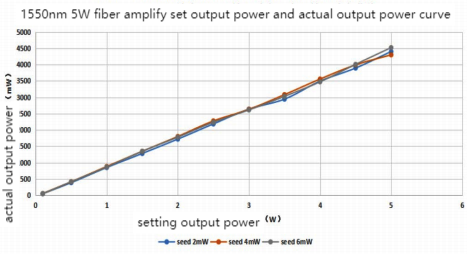

    The fiber amplifier power curve

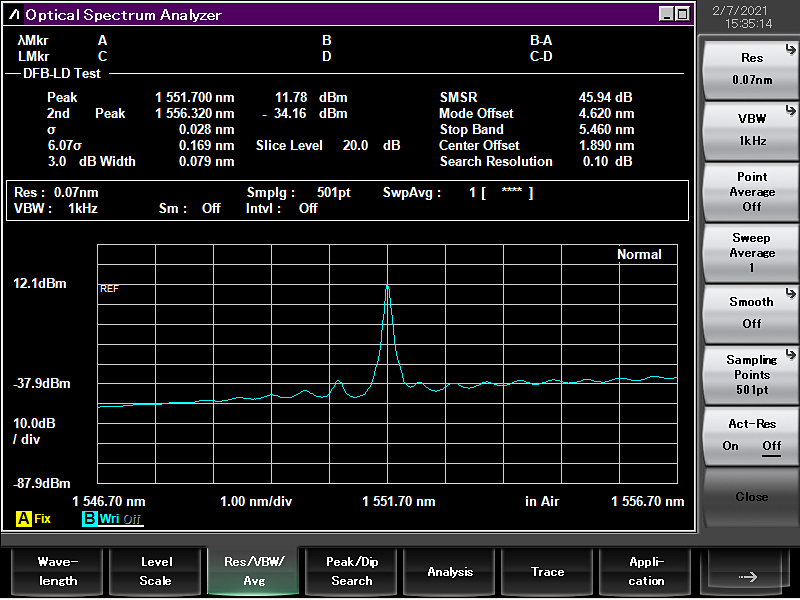

    Fiber Amplifier Output Spectrum


     (seed source 6mW, set power 0.1W)





    Ordering Information

    EDFA-△-PG-OPP-ISO

    △:

    C=C band

    L=L Band

    C+L=C+L Band

    PG: Packaging method

    B: Benchtop

    M: Module

    OPP (Output Power): Output power, unit dBm

    E.g. : 16-16dbm, 23-23dbm

    ISO: Built-in isolator protection

    0-None

    1-Pump protection
