Idealphotonics'Ultra-Width series 1550nm high-stability single-mode pump source utilizes a TEC-stabilized single-mode semiconductor laser, offering wavelength stability and high output power. Based on an advanced microprocessor control system combined with high-precision ATC and ACC (APC) control circuits, it achieves highly stable laser output while ensuring quick and intuitive operation of the light source. We can also provide corresponding communication interfaces and control software based on user requirements to enable computer control. This light source features a Turn-Key pump laser protection function to effectively prevent user errors. It supports coarse power adjustment (1mW steps) and fine power adjustment (0.1mW steps). 1550nm single-mode pump source is a highly integrated desktop system light source with a high-definition LCD display, continuously adjustable output power, and synchronous current and voltage display, making it ideal for experimental scientific research and production testing. Additionally, the company can provide modular packaging based on user needs for easy system integration.
产品特点Single-mode high-power output: up to 25mW、 Spectral width up to 80nm、 ASE optical isolation protection design、 Stable and continuously adjustable output power、 LCD status display、 High-precision ACC and ATC control circuits、 Optional built-in isolator
产品货号B80020036
应用领域Fiber optic gyroscope、 Optical coherence testing、 Test and measurement、 Nonlinear effect research
产品单价联系客服询价
到货日期请咨询客服获得货期
产品库存请咨询客服
Daisy
电话:18602170419
邮箱:moli@microphotons.com
相关产品
Center wavelength Spectral width Output power
Parameters
Parameters | Unit | Specs | ||
Min. | Typ. | Max. | ||
PN# | LP-SLD-1550-B LP-SLD-1550-M* | |||
Output Power | mW | 3 | - | 35 |
Peak Operating Wavelength | nm | 1540 | 1550 | 1560 |
Spectral Width (FWHM) | nm | 25 | 40 | 80 |
Output Side Mode Suppression Ratio (SMSR) | dB | 20 | - | - |
Output Isolation | dB | - | 30 | - |
Output Power Stability (15 minutes) | % | - | ±0.5 | ± 1.0 |
Output Power Stability (8 hours) | % | - | ±1.0 | ±2.0 |
Output Power Adjustable Range | % | 0 | - | 100 |
Output Power Adjustment Mode | Coarse/Fine Adjustment | |||
TEC Stability | ℃ | - | ±0.1 | ±0.2 |
TEC Operating Range | ℃ | 25 | 30 | 35 |
Operating Voltage | VAC | 100 | 220 | 240 |
Electrical Power Consumption | W | - | - | 30 |
Operating Temperature | ℃ | 0 | - | 50 |
Storage Temperature | ℃ | -40 | - | 85 |
Output Fiber Type | SM/PM | |||
Output Fiber Length | m | >1 | ||
Output Fiber Connector | FC/APC, other models optional | |||
Dimensions | mm | 340(L) × 240(W) × 100(H) Benchtop | ||
150(L) × 125(W) × 25(H) Module |
Technical Specification Notes
*Software remote control optional
1.Output power selectable;
2.Peak operating wavelength customizable;
3.Isolation refers to the isolation against ASE light;
4.Output power stability test conditions: 25°C, tested after a 30-minute warm-up;
5.Maximum power consumption refers to the overall power consumption under extreme operating conditions.

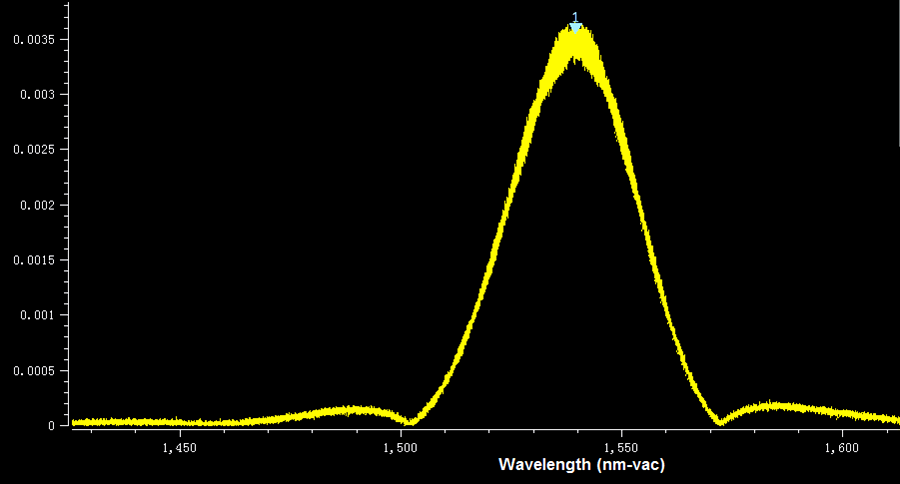

Spectrum Graph

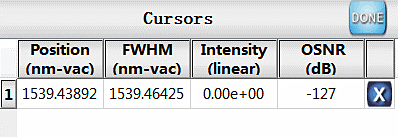

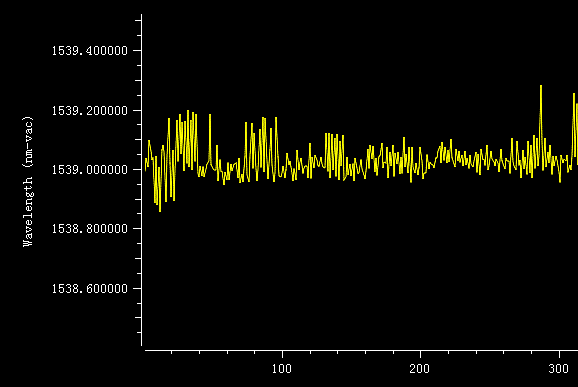

Wavelength Stability Test

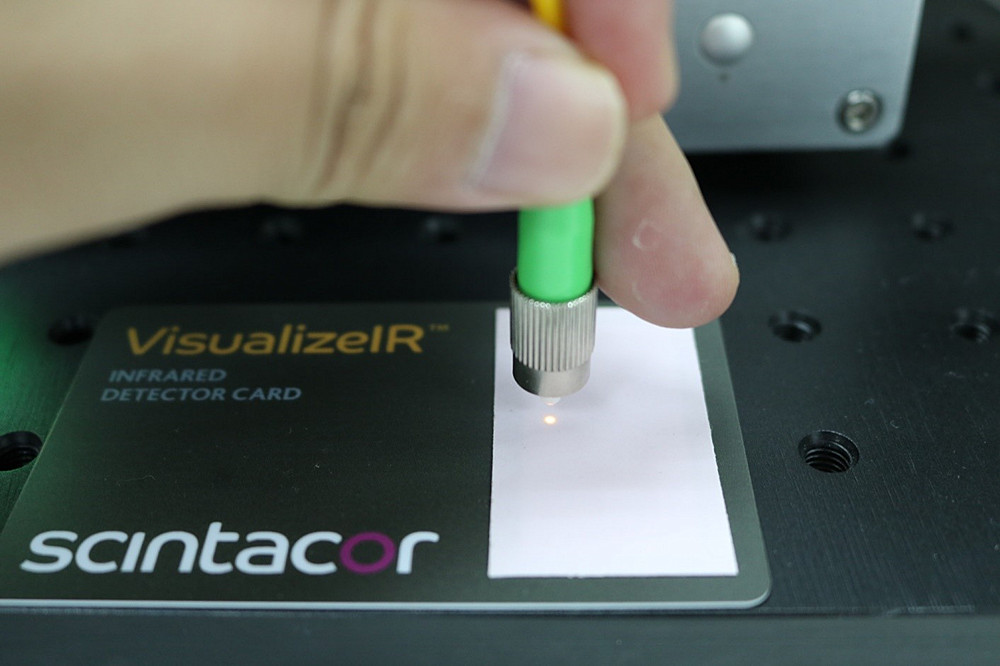

Beam Quality

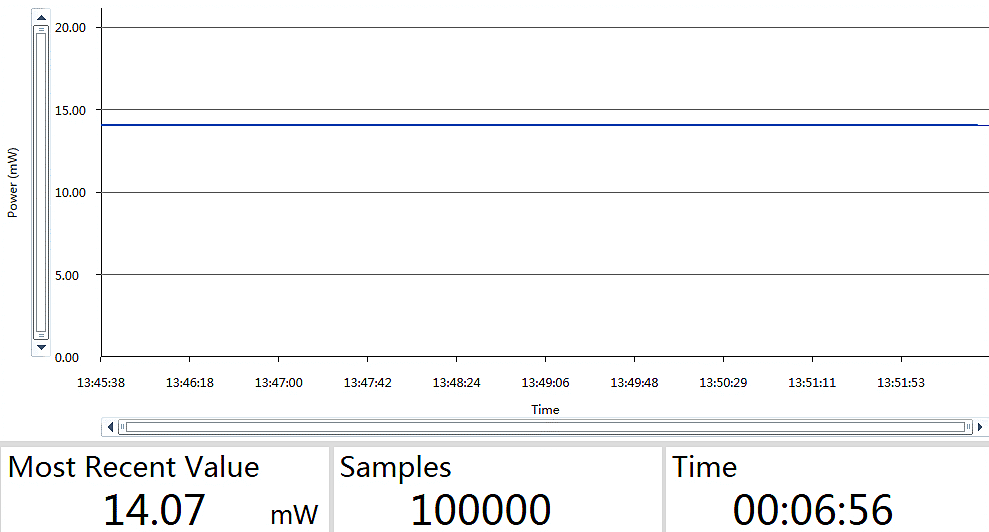

Power Test Table

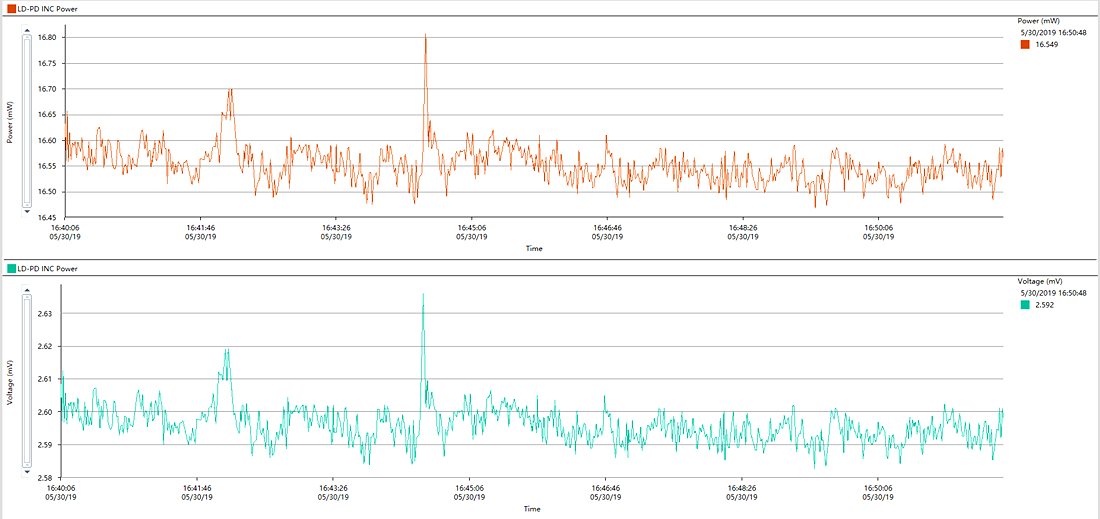

SLD light source power stability test curve
Ordering info
LP-SLD-1550-PG-
PG: Packaging Type
B:Benchtop
M: Module
OPP (Output Power): Output power in mW. For example: 10-10mW, 50-50mW
BWD: 25:25nm, 40:40nm, 50:50nm, 60:60nm, 80:80nm, 100:100nm
FT: Fiber Type
SM=SMF-28E+
PM=PM1550
