首页 Optical Imaging Camera Near infrared camera Low cost near-infrared digital camera (1480-1600nm) 1550nm Near Infrared Low Cost Digital Camera (Economical Real-time Infrared Imaging Application Camera)
  • 1550nm Near Infrared Low Cost Digital Camera (Economical Real-time Infrared Imaging Application Camera)

    CAM-1550IR is a camera for affordable real-time infrared imaging applications. Using our existing technology, we developed the CAM-1550IR to optimize extreme high sensitivity at 1550nm, ideally suited for beam positioning/alignment in the communication band, transmitters, lasers, high-speed fiber or direct imaging via an attached lens. The Caml-Adapter is used to easily and economically adjust the camera for use at 1550nm.

    产品特点Laser detection or direct imaging、 Lightweight design、 High sensitivity、 High performance、 Excellent for laboratory use

    产品货号E80050009

    应用领域Laser beam profiling、 Machine vision and general purpose infrared detection、 Telecom equipment manufacturing control、 Telecom testing and inspection、 Fiber optic inspection and spectroscopy、 Product quality monitoring

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Moli

    电话:13061644116

    邮箱:moli@microphotons.com

    相关产品

    主要参数
  • 核心参数
  • 尺寸图
  • Parameter

    Camera specifications

    Digital CamIR1550 463125

    Image sensor model

    Sony progressive scan interface interline transfer ICX445 1/3” Exview HAD CCDTM

    Maximum resolution

    1296 (H) x 964 (V)

    Pixel size

    3.75µm x 3.75µm

    A/D converter

    12-bit ADC analog-to-digital converter

    Video data output

    8, and 16-bit digital data

    Digital interface

    5-pin Mini B USB2.0 digital interface for camera control, video data transfer and power supply

    Transfer rate

    480 Mbit/s

    Partial image mode

    Pixel classification and region of interest mode based on format 7

    Dynamic range

    56.77dB



    Gain control

    Auto/Manual/Single push mode, software programmable, 0 dB to 24 dB, 0.04 increments

    Switching speed

    Auto/Manual/Single push mode, software programmable, 0.01 ms to >10 s

    Voltage requirements

    Voltage through Mini B USB 2.0 interface or JST 7-pin GPIO connector: 4.745 to 5.25 V

    Power consumption

    Power consumption at 5V2 W (max)

    Dimensions

    Dimensions 25.5mm x 41mm x 44mm (excluding optics)

    Gross weight

    Mass 37g (including tripod mount bracket)

    Memory storage

    3 memory channels for custom camera settings

    Lens mount

    CS-Mount (includes 5mm C-mount adapter)

    Emissions

    Complies with CE rules and FCC rules part 15 class B

    Operating temperature

    0°C to 45°C

    Storage temperature

    -30°C to 60°C

    Warranty period

    1 year

    Spectral sensitivity

    See graph

    Peak sensitivity

    See graph

    Scene lighting

    Spectral sensitivity 1000-1185nm

    Frame rate

    100 fps

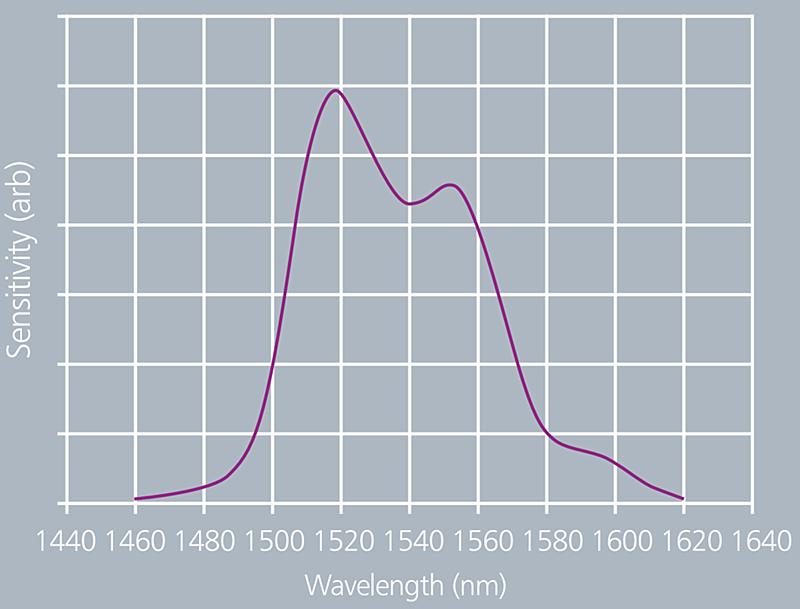

    Absorption sensitivity of camera sensor coatings
