首页 Semiconductor Diodes DFB Laser Diode 1000-1200nm DFB laser diode DFB (distributed feedback) semiconductor laser 1028/1036/1060/1064/1068/1084nm 30mW 1060nm DFB Laser Diode 30mW Pump Type

    • 1060nm DFB Laser Diode 30mW Pump Type

    The 10xxnm 14PIN Butterfly Packaged DFB Laser Diode integrates TEC, lens, thermistor, and PD into a 14PIN butterfly package. The hermetically sealed design meets telecom-grade operating requirements. It offers narrow linewidth and high power (50mW) and can support output with PM980 or HI1060 fiber. Custom pin definitions are also supported.

    产品特点14PIN Butterfly Package、 Wavelengths from 1018 to 1200nm available、 Integrated TEC and thermistor、 Narrow linewidth DFB chip、 PM980/HI1060 fiber

    产品货号A80012062

    应用领域Ultrafast lasers、 SHG seed light

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • General Parameters

    Electro-Optical Characteristics (T = 25°C)

    Optical Electrical Characteristics (TCHIP = 15 - 35   °C, TCASE = 25   °C, Iop = 150 mA)



    Parameter

    Min

    Typ.

    Max

    Unit

    Central Wavelength

    1026

    1028

    1030

    nm

    1034

    1036

    1038

    1058

    1060

    1062

    1062

    1064

    1066

    1066

    1068

    1070

    1082

    1084

    1086

    SMSR

    40

    50

    -

    dB

    Linewidth

    -

    5

    -

    MHz

    Optical Power (Fiber Internal)

    30

    50

    -

    mW

    Drive Voltage

    -

    2

    2.5

    V

    Drive Current

    -

    150

    250

    mA

    No Mode-Hop Range

    20

    50

    -

    mA

    Threshold Current

    -

    35

    -

    mA

    Slope Efficiency

    -

    0.25

    -

    W/A

    Current Wavelength Coefficient

    -

    0.002

    -

    nm/mA

    Temperature Wavelength Coefficient

    -

    0.08

    -

    nm/ °C

    MPD Responsivity

    -

    0.5

    -

    A/W

    Extinction Ratio

    -

    16

    -

    dB



    Optical Fiber Characteristics:






    Fiber  Type

    PM980-XP

    Mode  Field  Diametera

    6.6  ±  0.5  µm  @  980  nm

    Numerical  Aperture

    0. 10

    Fiber  Length

    1.5  m

    Connector

    FC/APC  (2.0  mm  Narrow  Key)

    Loose Tube

    Ø900  µm




    Limit Parameters



    Parameter

    Typical Value

    Unit

    Fiber Optical Power

    50

    mW

    Operating Current

    400

    mA

    LD  Reverse  Voltage

    2

    V

    PD  Reverse  Voltage

    15

    V

    Case Operating Temperature

    0 to  50

    °C

    Storage Temperature

    -10  to  65

    °C

    TEC Current

    2.5

    A

    TEC Voltage

    4.0

    V

    Thermistors Resistance

    10

    kOhms




    Spectral Analysis

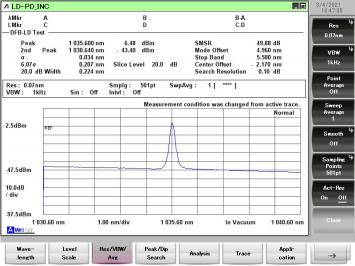

    1028nm





     1036nm

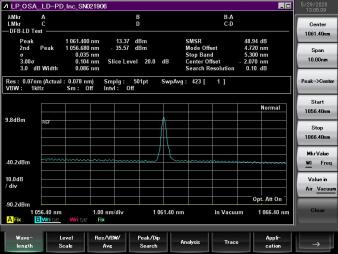

    1060nm

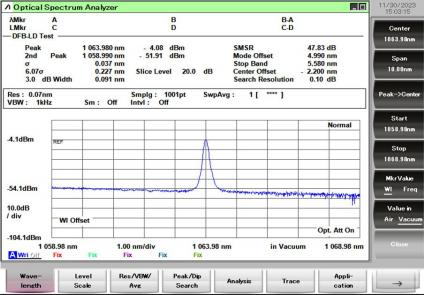

    1064nm

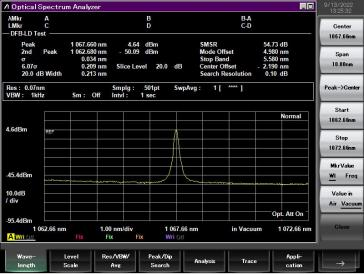

    1068nm


    1084nm



    L-I-V Curve

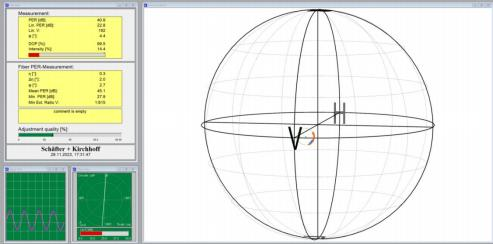

    Extinction Ratio Test (Polarization Maintaining Version)

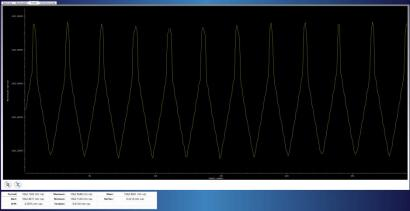

    Mode hope tuning Range



    Pin Definition

    Type A


      Type B



    Ordering Info

    DFB-  □□□□-☆-A8▽- XX

    □□□□: Wavelength

    1018: 1018nm 1030: 1030nm 1053: 1053nm 1064: 1064nm 1084: 1084nm *****

    1120: 1120nm

    ☆  : Pin Definition A: Telecom A

    B: Pump B

    ▽: Wavelength Tolerance 1:  ± 1nm

    2:  ±2nm

    XX: Fiber and Connector Type SA=HI1060+ FC/APC

    SP=HI1060+ FC/PC

    PA=PM980 Fiber+ FC/APC PP=PM980 Fiber+ FC/PC

    (Our default packaging does not include an isolator. If the customer requires an isolator, please add "-ISO" at the end of the model number. With the addition of the isolator, we can only guarantee an output power of 30mW+.)

    Eg:

    PN#DFB-1064-B-A81-PA-ISO
