50:50 2x2 single mode Fiber Coupler 1030nm

50:50 2x2 single mode Fiber Coupler 1030nm

NIR-FBC-W1216 NIR series single-mode fiber coupler is a coupler for near-infrared band splitting developed and produced by our single-mode fiber fused taper machine IPCS-5000-SMT. It has excellent performance and can cover the entire communication band (1260-1620nm). At the same time, we can provide customers with more cost-effective narrowband couplers with a central wavelength of 1310nm, 1392nm, 1480nm, 1512nm, 1550nm, 1650nm, 1742nm with a bandwidth of ±20nm. The maximum power of our coupler with connector or bare fiber is 500mW. We have 50:50, 75:25, 90:10 or 99:1 coupling ratio couplers for customers. Our 2x2 couplers are based on the fused taper process, so they are bidirectional, and any port can be used as the input

Product features：Fused fiber couplers for 1260-1620nm、 50:50, 75:25, 90:10, or 99:1 coupling ratios、 Bidirectional coupling (either end can be used as input)、 2.0 mm narrow key FC/PC or FC/APC connectors、 Each broadband coupler comes with its own test report

Part Number：--

Application area：Visible light communication、 Power monitoring、 Optical splitter、 Test equipment

Add to Cart Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Dimension Drawing

General Parameters

Parameters

NIR-FBC-W1216 parameter
Central wavelength	1030nm
Bandwidth	360 nm
Insertion loss	＜3.8dB
Return loss	>55dB
Fiber type	SMF-28E
Operating power	500mw
Connector	FC/APC or FC/PC
Operating temperature	-10-+70℃
Storage temperature	-45-+85℃
PDL	≤ 0.15 dB
Uniformity	≤ 1.0 dB
Dimension
Package size	3.0mm (Ф) x 60.0mm (L)
Pigtail length	1m
Is charging working	No

Note: 1. All test results do not include connectors.

2. We can accept customization for better parameters or other requirements

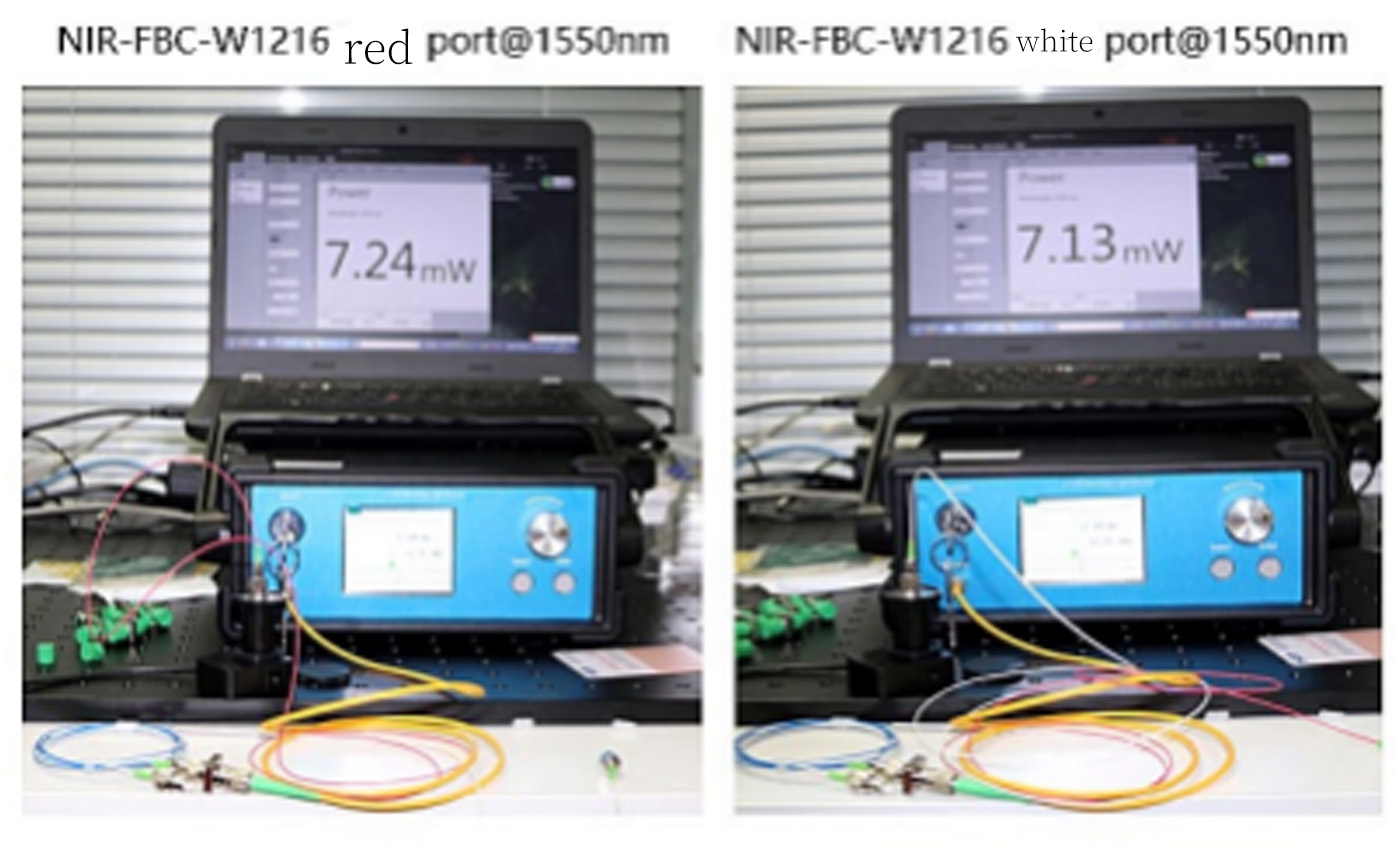

Single point data test 2X2, 50:50, full-band single-mode fiber coupler

(Broadband SLD center wavelength 1550nm, spectrum width: 125nm 15mw single-mode SLD laser test as an example)


Ordering information

NIR-FBC - W□□□□-S○-CR▽-☆-△-XX

W□□□□：Wavelength

1310:1310nm

1392:1392nm

1512:1512nm

1532:1532nm

*****

1550:1550nm

1650-1650nm

1216:1260-1620nm

1742:1742nm

S○：Port Structure

12:1x2

22:2x2

CR▽:

0199: 1:99

1090: 10:90

2575:25:75

5050: 50:50

☆ ：Pigtail Length

05:0.5m

1：1m

10:10m

△：Loose Tube

B:Bare Fiber

9:900um Loose Tube

20:2mm Loose Tube

30: 2mm Loose Tube

XX: Fiber and Connector Type

SA=SMF-28E+ FC/APC

SP=SMF-28E+ FC/PC

PA=PM Fiber+ FC/APC

PP=PM Fiber+ FC/PC

Optional Configurations

Downloads

50:50 2x2 single mode Fiber Coupler 1030nm.pdf
