    • 1060±60nm MZI Interferomete

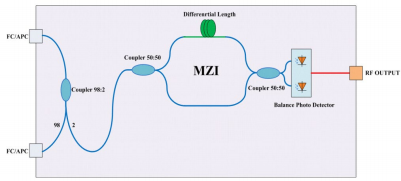

    1060±60nm MZI Interferometer (Balanced Detector with 1G Bandwidth) Mach-Zehnder Interferometer

    Product features：Optical coherence tomography can be customized for different wavelengths、 MZI with different arm differences can be customized、 With balanced detector output、 Vibration-absorbing and heat-insulating design、 Compact structure

    Part Number：--

    Application area：Optical Coherence Tomography、 Other Scientific Research Applications

    Add to Cart Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Dimension Drawing
    • General Parameters

    General Parameters

    PN#

    OL-MZI-1060

    Unit

    Detector Type

    InGaAs


    Wavelength

    1000~1100

    nm

    Balanced Detector Bandwidth

    1G

    Hz

    MZI Arm Difference

    6.8 @ fiber (10mm @ air)

    mm

    Connector

    SMA


    Fiber Type

    HI1060


    Optical Input

    FC/APC


    Power Interface

    Aviation Connector


    Operating Voltage/Current

    12V/0.2A（max）


    Dimensions

    120*100*25

    mm












    Optional Configurations

    --

    Downloads

    1060±60nm MZI Interferomete.pdf
