• 1550nm single-mode small spot fiber collimator

    Idealphotonics' collimator products have sufficiently wide bandwidth, high return loss, and low polarization-dependent loss optical performance, which enable them to be widely used in various laser systems. At the same time, we can also easily provide customized product types such as various spot sizes, working distances, and product sizes.

    产品特点Low insertion loss、 No glue in optical path、 Compact structure、 High reliability and stability

    产品货号A80150099

    应用领域Fiber optic devices and modules、 Free space optical path integration、 Optical test system、 Sensing system

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话:16628709332

    邮箱:moli@microphotons.com

    主要参数
  • 核心参数
  • 尺寸图
  • Parameters

    parameter

    Unit

    Value

    Note

    Operating wavelength

    nm

    1310 or 1550

    Other wavelengths available

    Bandwidth

    nm

    60


    Lens type

    N/A

    C-lens / G-lens


    Fiber type

    N/A

    SMF-28e+

    Other fiber type available

    Operating distance

    mm

    5.5 +/- 0.5 (standards)

    Other distances available

    Insertion loss

    dB

    0.15 (Typ.)0.20 (Max.)

    A pair of collimator losses

    Return loss

    dB

    60


    Optical power

    mW

    500


    Spot size

    mm

    0.35 (Typ.)0.50 (Max.)

    2ω at 1/e2

    Operating temperature

    0C

    -5 ~ 70

    Wider temperature

    Storage temperature

    0C

    -40 ~ 85




    Dimension (ФDx A)



    mm

    Ф 3.20 × 9 (with metal tube)



    Customizable on request

    Ф2.78 × 9 (with glass tube)

    Ф1.65 × 6 (with glass tube)

    Lens exposed

    mm

    1.0~2.0

    Customizable on request

    Fiber head exposed

    mm

    0~2.0

    Customizable on request

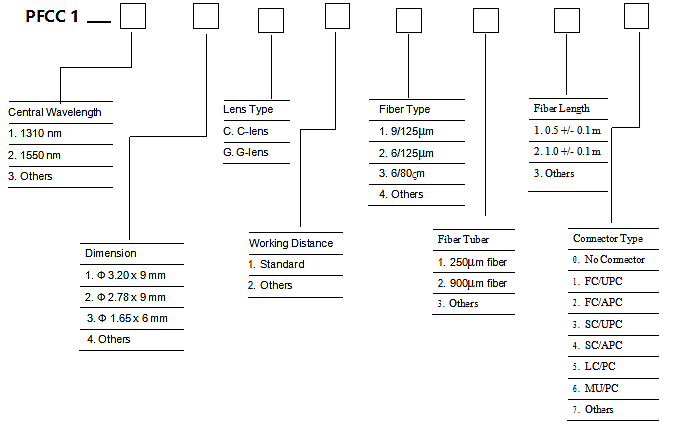

    Ordering information

    E.g. : PFCC1-11C11110
