1560nm Transmission FBG Fiber Bragg Grating (AOS)

1560nm Transmission FBG Fiber Bragg Grating (AOS)

FBG stands for Fiber Bragg Grating, which refers to a fiber optic Bragg grating. It is a grating with a spatially periodic phase distribution formed within the fiber core. Its fundamental function is to act as a narrowband (transmission or reflection) filter or mirror within the core. Leveraging this property, a variety of unique fiber optic devices can be manufactured.

Product features：Center Wavelength: 1560nm 、High Transmission 、Single-Mode Fiber 、FC/APC Connector

Part Number：--

Application area：Fiber Lasers、 Fiber Filters、 Fiber Sensing、 Test and measurement、 Nonlinear effect research

Add to Cart Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Dimension Drawing

General Parameters

Parameters

Center Wavelength	1560.547nm
Center Frequency	192.1THz
Transmission Loss	0.22db
Reflectivity	4.9%
SNR @ ±1nm	35dB
Reflection Bandwidth
-1.0 dB	0.027nm	3.3GHz
-3.0dB	0.046	5.7GHz
Fiber Type	Corning SMF28e
Connector Type	FC/APC

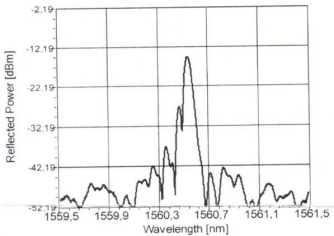

Reflection Spectrum

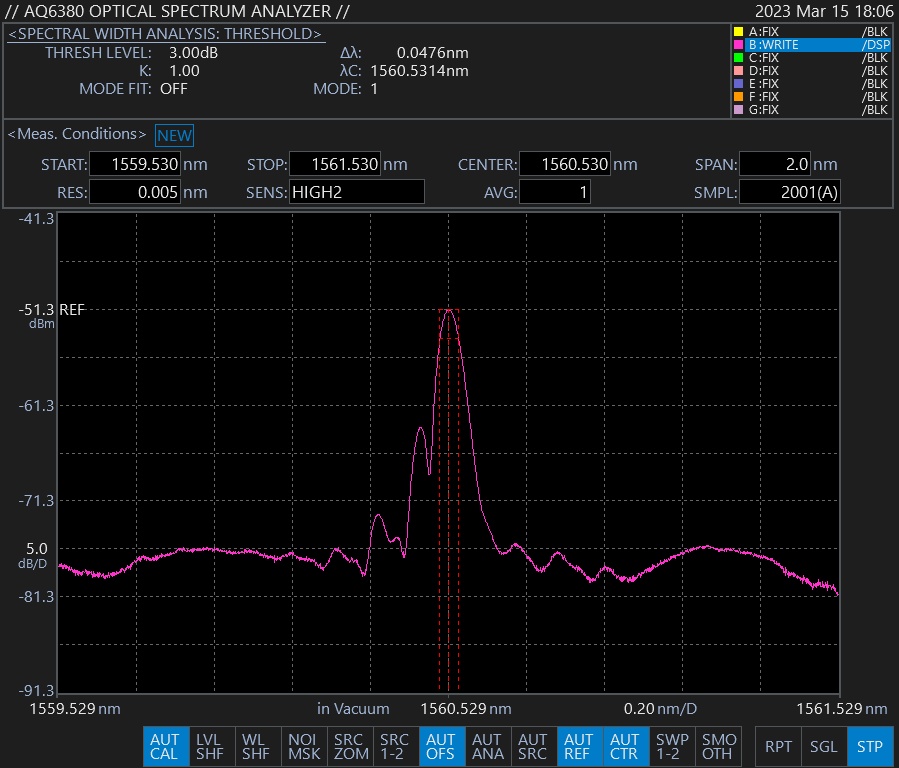

Transmission Spectrum
