    • 1550nm Polarization-maintaining taper lens fiber

    Conical lens fiber, because of the enlarged numerical aperture and increased light collection ability, is very suitable for coupling with LD, DFB, SLD lasers or VCSELs with circular or nearly circular output beam cross-sections.

    产品特点Improved coupling with waveguides and laser diodes、 Can be made according to spot size or taper shape、 Polarization-maintaining fiber

    产品货号C80010453

    应用领域Active component pigtails、 DWDM devices、 Waveguide packaging、 MEMS device connection、 Micro-fiber assemblies

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameters

    Parameter

    Unit

    Typ.

    Fiber type


    PM1550

    Cone angle (Port 1)

    deg

    110

    Angle tolerance (Port 1)

    deg

    ±3

    Lens radius (Port 1)

    um

    7.5±1.5

    Beam diameter (Port 1)

    um

    specific

    Fiber stripping length (Port 1)

    mm

    16±1

    Fiber length

    m

    1.5

    Operating temperature

    ℃

    -5 to +50

    Store temperature

    ℃

    -40 to +85

    Notes: * Actual dimensions may differ from the image below due to different requirements, please refer to the shipping data sheet.

    * This material is RoHS compliant.

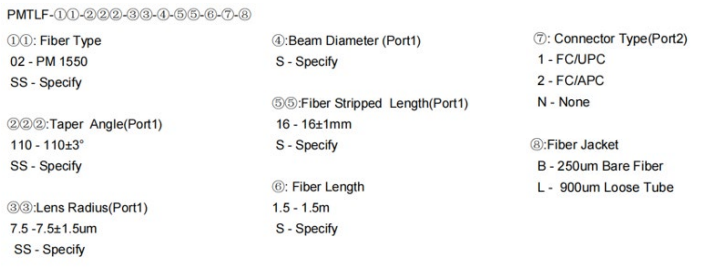

    Ordering Information
