  • 1532nm Benchtop Polarization-Maintaining SLD Light Source 3mW

    Idealphotonics'Ultra-Width series 1550nm high-stability single-mode pump source utilizes a TEC-stabilized single-mode semiconductor laser, offering wavelength stability and high output power. Based on an advanced microprocessor control system combined with high-precision ATC and ACC (APC) control circuits, it achieves highly stable laser output while ensuring quick and intuitive operation of the light source. We can also provide corresponding communication interfaces and control software based on user requirements to enable computer control. This light source features a Turn-Key pump laser protection function to effectively prevent user errors. It supports coarse power adjustment (1mW steps) and fine power adjustment (0.1mW steps).1550nm single-mode pump source is a highly integrated desktop system light source with a high-definition LCD display, continuously adjustable output power, and synchronous current and voltage display, making it ideal for experimental scientific research and production testing. Additionally, the company can provide modular packaging based on user needs for easy system integration.

    Product features:Single-mode high-power output: up to 25mW、 Spectral width up to 80nm、 ASE optical isolation protection design、 Stable and continuously adjustable output power、 LCD status display、 High-precision ACC and ATC control circuits、 Optional built-in isolator

    Part Number:--

    Application area:Fiber optic gyroscope、 Optical coherence testing、 Test and measurement、 Nonlinear effect research

    Add to Cart Consult Favorite

    Main parameters
  • Core parameters
  • Dimension Drawing
  • General Parameters

    Parameters

    Parameters

    Unit

    Specs



    Min.

    Typ.

    Max.

    PN#


    LP-SLD-1550-B     LP-SLD-1550-M*

    Output Power1

    mW

    3

    -

    5

    Peak Operating Wavelength2

    nm

    1540

    1550

    1560

    Spectral Width (FWHM)

    nm

    25

    40

    80

    Output Side Mode Suppression Ratio (SMSR)

    dB

    20

    -

    -

    Output Isolation3

    dB

    -

    30

    -

    Output Power Stability (15 minutes)4

    %

    -

    ±0.5

    ± 1.0

    Output Power Stability (8 hours)4

    %

    -

    ±1.0

    ±2.0

    Output Power Adjustable Range

    %

    0

    -

    100

    Output Power Adjustment Mode


    Coarse/Fine Adjustment

    TEC Stability

    -

    ±0.1

    ±0.2

    TEC Operating Range

    25

    30

    35

    Operating Voltage

    VAC

    100

    220

    240

    Electrical Power Consumption

    W

    -

    -

    30

    Operating Temperature

    0

    -

    50

    Storage Temperature

    -40

    -

    85

    Output Fiber Type


    SM/PM

    Output Fiber Length

    m

    > 1

    Output Fiber Connector


    FC/APC, other models optional

    Dimensions

    mm

    340(L) × 240(W) × 100(H) Benchtop
    150(L) × 125(W) × 25(H) Module

    Technical Specification Notes

    *Software remote control optional

    1.Output power selectable;

    2.Peak operating wavelength customizable;

    3.Isolation refers to the isolation against ASE light;

    4.Output power stability test conditions: 25°C, tested after a 30-minute warm-up;

    5.Maximum power consumption refers to the overall power consumption under extreme operating conditions.

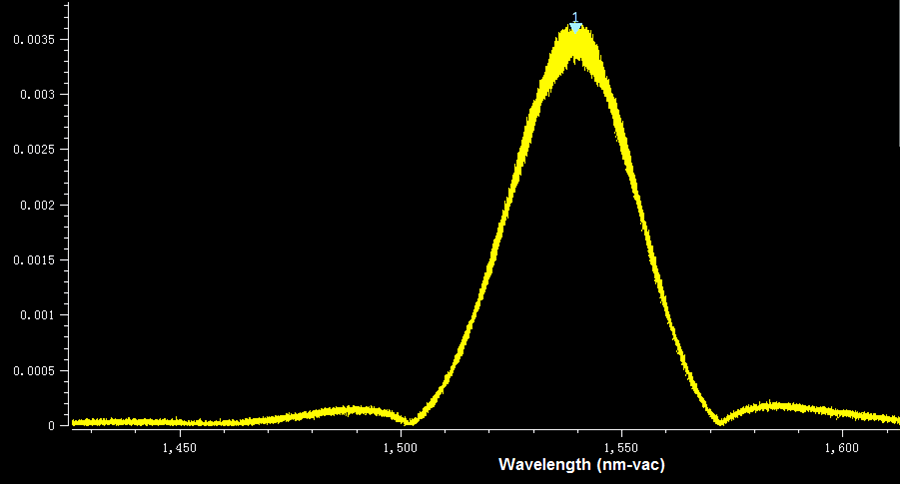

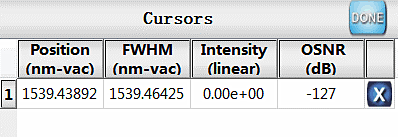

    Spectrum Graph

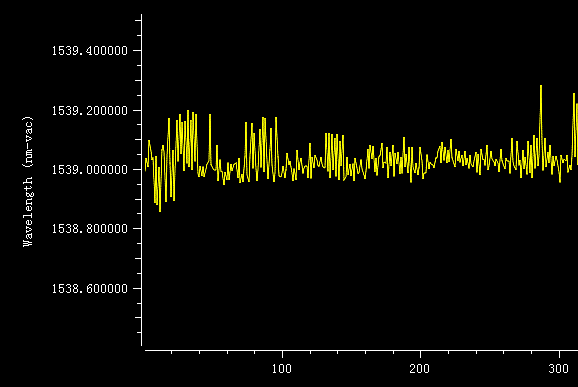

    Wavelength Stability Test

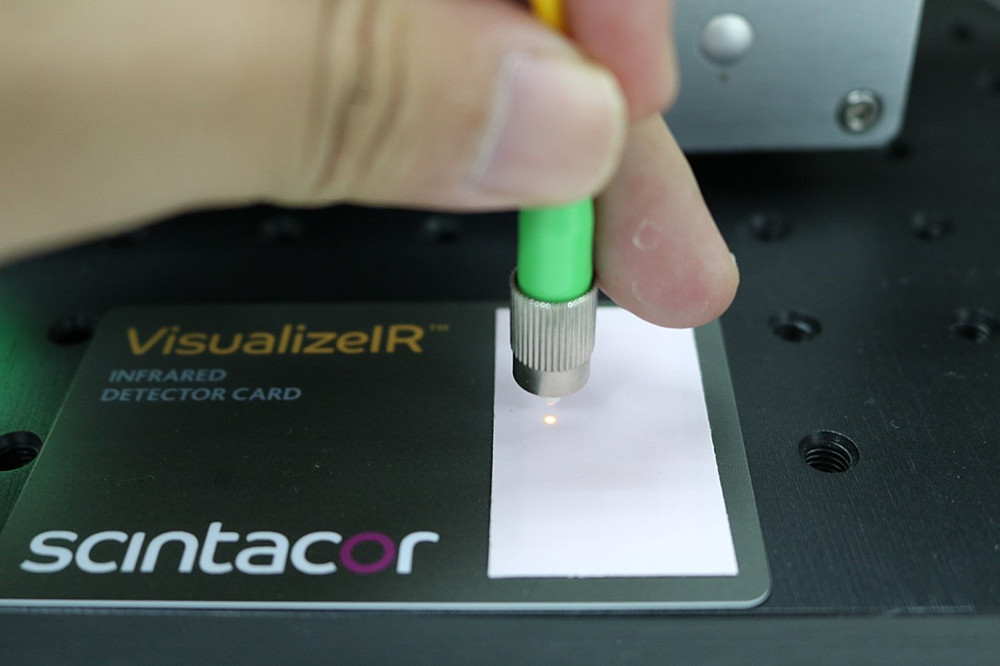

    Beam Quality

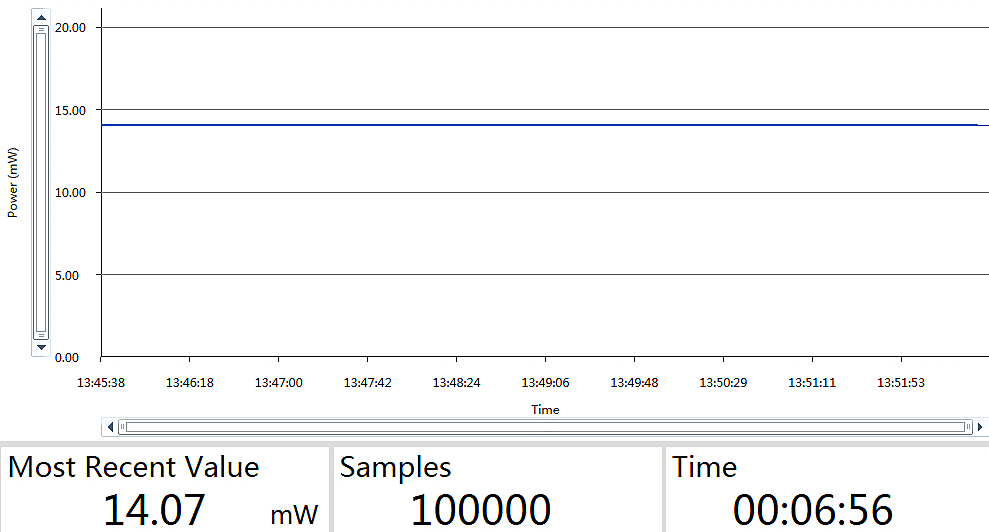

    Power Test Table

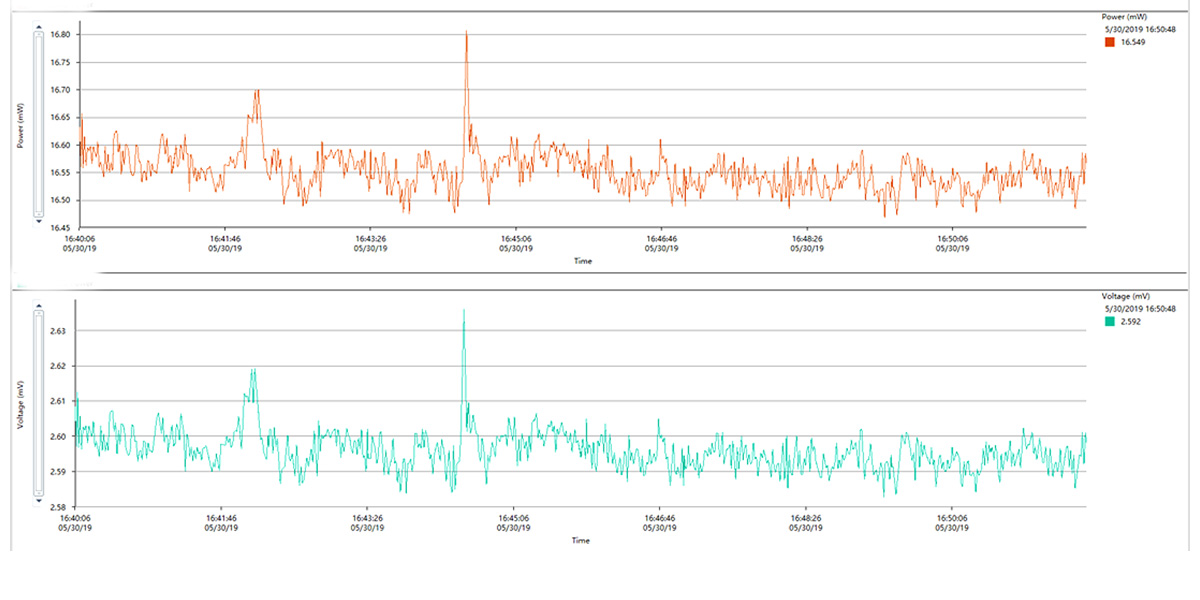

    SLD light source power stability test curve




    Ordering info

    LP-SLD-1550-PG---FT
    PG: Packaging Type
    B: Benchtop
    M: Module
    OPP (Output Power): Output power in mW. For example: 10-10mW, 50-50mW
    BWD: 25:25nm, 40:40nm, 50:50nm, 60:60nm, 80:80nm, 100:100nm
    FT: Fiber Type
    SM=SMF-28E+
    PM=PM1550




    Optional Configurations

    --
